Cable Application

Name: 4 Cores XLPE Insulated PVC Sheathed Aluminum Cable Unarmoured 0.6/1kV
SKU: 0

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

STANDARDS :

Cable Standards

IEC 60228; IEC 60502-1

CONSTRUCTION :

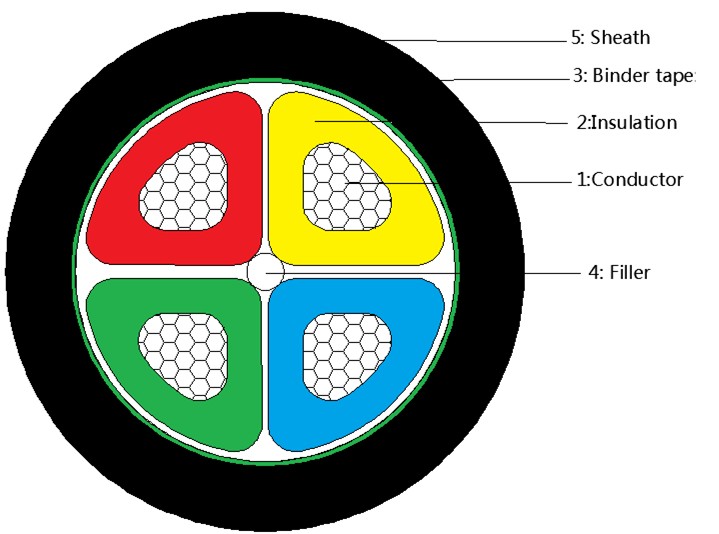

Cable Construction

1. Conductor: Aluminum, Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Binder tape: Non-hygroscopic material
4. Filler: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC

PARAMETER :

Cable Parameter

0.6/1kV-4 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
4X10	0.7	1.8	18.6	300	3.08	50	66
4X16	0.7	1.8	21.0	400	1.91	65	85
4X25	0.9	1.8	24.9	570	1.20	87	110
4X35	0.9	1.8	28.3	710	0.868	105	130
4X50	1.0	1.8	28.4	850	0.641	130	160
4X70	1.1	2.0	33.1	1160	0.443	165	195
4X95	1.1	2.1	37.1	1520	0.320	205	235
4X120	1.2	2.2	40.8	1898	0.253	240	265
4X150	1.4	2.4	45.2	2369	0.206	270	300
4X185	1.6	2.6	52.1	2925	0.164	315	340
4X240	1.7	2.8	57.8	3700	0.125	375	395
4X300	1.8	3.0	63.5	4580	0.100	435	445
4X400	2.0	3.3	70.9	5800	0.0778	510	510
