U-1000 Ar2V Cable Application:

Name: U-1000 Ar2V Cable
SKU: 0

Low voltage power cable for fixed application, Aluminium conductor, XLPE insulation, and PVC outer sheath. U-1000 AR2V aluminum cables can be used in all low-voltage power installations.can be fixed on cable trays, within conduits or fixed to walls. They also can be buried directly with extra mechanical protection

U-1000 Ar2V Cable Standards:

XP C 32-321（ formerly NF C 32-321） , EN 60332-1/NF C 32-070

CONSTRUCTION :

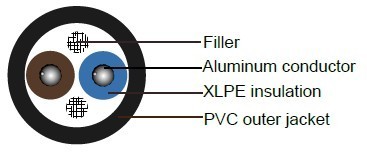

U-1000 Ar2V Cable Construction:

Conductors: Al, class 2 according to EN 60228
Insulation: : XLPE compound
Bedding: Extruded elastomere or plastomere
compound
Sheath: PVC compound

TECHNICAL DATA :

U-1000 AR2V - Technical data and tests
Standards	: NF C 32-321 C32-321/A1; IEC 60502-1 NF EN 60332-1-2; NF C 15-100
Nominal voltage U0/U	: 0,6/1 kV
Test voltage (50 Hz)	: 4 kV
Maximun voltage Um	: 1,2 kV
Maximun operating temperature	: +90° C
Maximun short circuit temperature	: +250° C
Min. operating temperature (without mechanical shocks)	: -25° C
Minimum installation and use temp.	: -10° C
Minimum bending radius per D cable diameter (in mm)	: 6 x D
Maximum pulling stress	: 5 kg/mm² (of copper cross section)
Sheath colour	: black

PARAMETER :

AWG	CROSS SECTION MM2	INSULATION THICKNESS MM	MINIMUM SHEATH THICKNESS MM	MAXIMUM OVERALL DIAMETER MM	APPROX CABLE WEIGHT KG/KM
2	1x35	0.9	1.09	13.5	190
1	1x50	1	1.09	15	245
2/0	1x70	1.1	1.09	17	325
3/0	1x95	1.1	1.18	19	425
4/0	1x120	1.2	1.18	21	520
300MCM	1x150	1.4	1.26	23	630
500MCM	1x185	1.6	1.26	25.5	780
750MCM	1x240	1.7	1.35	28.5	990
-	1x300	1.8	1.43	31	1210
-	1x400	2	1.52	34.2	1510
-	1x500	2.2	1.6	38	1860
-	1x630	2.4	1.77	44	2400
8	2x10	0.7	1.43	16,0	275
6	2x16	0.7	1.43	18,5	360
4	2x25	0.9	1.43	22,0	530
2	2x35	0.9	1.43	24,5	640
8	3x10	0.7	1.43	17,0	300
6	3x16	0.7	1.43	19,5	400
4	3x25	0.9	1.43	23,5	600
2	3x35	0.9	1.43	26,0	750
1	3x50	1	1.43	29,0	970
2/0	3x70	1.1	1.52	34,0	1310
3/0	3x95	1.1	1.6	38,5	1730
4/0	3x120	1.2	1.69	42,5	2120
300MCM	3x150	1.4	1.86	47,5	2640
500MCM	3x185	1.6	1.94	53,0	3290
750MCM	3x240	1.7	2.11	59,5	4210
	3x300	1.8	2.28	66,0	5210
4	4x25	0.9	1.43	25,5	720
2	4x35	0.9	1.43	28,5	910
1	3x50+35	1	1.52	31,1	1130
2/0	3x70+50	1.1	1.6	36,2	1540
3/0	3x95+50	1.1	1.69	40,6	1940
4/0	3x120+70	1.2	1.86	45,4	2430
300MCM	3x150+70	1.4	1.94	49,5	2890
500MCM	3x185+70	1.6	2.11	54,4	3660
750MCM	3x240+95	1.7	2.28	61,5	4680
