YJLV Aluminum Power Cable Application

Name: YJLV Cable
SKU: 0

YJLV aluminum cross-linked polyethylene insulated power cable is designed for use in industrial facilities and urban network distribution with a rated voltage of 0.6/1 kV. It is suitable for installation underground, in water, in cable ducts, in power stations, outdoors, indoors, in industrial and distribution boards, and in user networks where there is no mechanical damage.

YJLV Aluminum Power Cable Standards:

VDE-0276 Part-603, HD 603.1, IEC 60502, VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1, CE Low Voltage Directive 73/23/EEC and 93/68/EEC,

CONSTRUCTION :

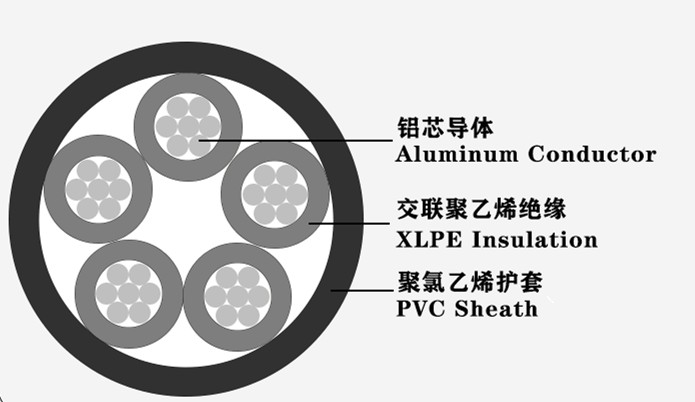

YJLV Aluminum Power Cable Construction

Conductor: Class 2 stranded Aluminium Conductor to HD383 Class 1 or Class 2
Insulation: XLPE insulation
Number of Cable Cores: 1-core,2-core,3-core,4-core,5-core,3+1-core,3+2 core,4+1 core
Sheath: PVC outer sheath

Sheath color: Black

TECHNICAL DATA :

Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV
Nominal Voltage DC (core-earth/core-core) :1.8/1.8kV
Test Voltage:3.5kV

Temperature Rating:
Flexed: 5°C to +90°C
Fixed: -35°C to +90°C

Maximum Short Circuit Temperature:
+250°C (max 5 seconds)

Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter

PARAMETER :

0.6/1kV-1 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
1X10	0.7	1.4	8.0	75	3.08	55	71
1X16	0.7	1.4	9.0	106	1.91	71	91
1X25	0.9	1.4	10.6	150	1.20	94	115
1X35	0.9	1.4	11.6	180	0.868	115	140
1X50	1.0	1.4	13.1	240	0.641	140	165
1X70	1.1	1.4	15.0	320	0.443	180	205
1X95	1.1	1.5	16.8	400	0.320	220	245
1X120	1.2	1.5	18.4	500	0.253	260	280
1X150	1.4	1.6	20.5	600	0.206	300	315
1X185	1.6	1.6	22.6	730	0.164	350	360
1X240	1.7	1.7	25.2	930	0.125	414	420
1x300	1.8	1.8	27.8	1140	0.100	485	475
1x400	2.0	1.9	31.4	1500	0.0778	570	545
1x500	2.2	2.0	34.9	1800	0.0605	670	620
1X630	2.4	2.2	39.1	2285	0.0469	790	705
0.6/1kV-2 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
2X10	0.7	1.8	15.4	200	3.08	58	78
2X16	0.7	1.8	17.4	270	1.91	75	100
2X25	0.9	1.8	20.5	380	1.20	100	130
2X35	0.9	1.8	22.5	480	0.868	120	155
2X50	1.0	1.8	20.3	490	0.641	150	185
2X70	1.1	1.8	23.3	630	0.443	190	225
2X95	1.1	1.9	26.2	820	0.320	235	275
2X120	1.2	2.0	29.4	1000	0.253	275	315
2X150	1.4	2.2	32.6	1250	0.206	315	350
2X185	1.6	2.3	36.0	1540	0.164	365	395
0.6/1kV-3 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
3X10	0.7	1.8	17.2	250	3.08	50	66
3X16	0.7	1.8	19.4	330	1.91	65	85
3X25	0.9	1.8	22.8	480	1.20	87	110
3X35	0.9	1.8	25.0	580	0.868	105	130
3X50	1.0	1.8	24.4	670	0.641	130	160
3X70	1.1	1.9	29.4	910	0.443	165	195
3X95	1.1	2.0	33.6	1170	0.320	205	235
3X120	1.2	2.1	35.9	1460	0.253	240	265
3X150	1.4	2.3	39.9	1820	0.206	270	300
3X185	1.6	2.4	44.1	2200	0.164	315	340
3X240	1.7	2.6	51.1	2850	0.125	375	395
3X300	1.8	2.7	56.1	3500	0.100	435	445
3X400	2.0	3.0	62.4	4500	0.0778	510	510
0.6/1kV-4 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
4X10	0.7	1.8	18.6	300	3.08	50	66
4X16	0.7	1.8	21.0	400	1.91	65	85
4X25	0.9	1.8	24.9	570	1.20	87	110
4X35	0.9	1.8	28.3	710	0.868	105	130
4X50	1.0	1.8	28.4	850	0.641	130	160
4X70	1.1	2.0	33.1	1160	0.443	165	195
4X95	1.1	2.1	37.1	1520	0.320	205	235
4X120	1.2	2.2	40.8	1898	0.253	240	265
4X150	1.4	2.4	45.2	2369	0.206	270	300
4X185	1.6	2.6	52.1	2925	0.164	315	340
4X240	1.7	2.8	57.8	3700	0.125	375	395
4X300	1.8	3.0	63.5	4580	0.100	435	445
4X400	2.0	3.3	70.9	5800	0.0778	510	510
0.6/1kV-5 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
5X10	0.7	1.8	18.8	360	3.08	50	66
5X16	0.7	1.8	21.8	485	1.91	65	85
5X25	0.9	1.8	26.2	690	1.20	87	110
5X35	0.9	1.8	28.0	865	0.868	105	130
5X50	1.0	1.9	32.4	1138	0.641	130	160
5X70	1.1	2.1	37.4	1575	0.443	165	195
5X95	1.1	2.2	41.7	2068	0.320	205	235
5X120	1.2	2.4	46.2	2550	0.253	240	265
5X150	1.4	2.6	53.1	3165	0.206	270	300
5X185	1.6	2.8	58.9	3950	0.164	315	340
5X240	1.7	3.0	65.6	5025	0.125	375	395
5X300	1.8	3.2	72.0	6190	0.100	435	445
0.6/1kV-3+1 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
3X16+1X10	0.7/0.7	1.8	19.4	370	1.91/3.08	65	85
3X25+1X16	0.9/0.7	1.8	22.8	520	1.20/1.91	87	110
3X35+1X16	0.9/0.7	1.8	25.1	650	0.868/1.91	105	130
3X50+1X25	1.0/0.9	1.8	28.2	780	0.641/1.20	130	160
3X70+1X35	1.1/0.9	1.9	31.9	1050	0.443/0.868	165	195
3X95+1X50	1.1/1.0	2.1	35.7	1460	0.320/0.641	205	235
3X120+1X70	1.2/1.1	2.2	39.6	1820	0.253/0.443	240	265
3X150+1X70	1.4/1.1	2.3	43.6	2150	0.206/0.443	270	300
3X185+1X95	1.6/1.1	2.5	49.8	2725	0.164/0.320	315	340
3X240+1X120	1.7/1.2	2.7	55.3	3480	0.125/0.253	375	395
3X300+1X150	1.8/1.4	2.9	57.0	4230	0.100/0.206	435	445
3X400+1X185	2.0/1.7	3.1	70.0	5520	0.0778/0.164	510	510
0.6/1kV-4+1 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
4X16+1X10	0.7/0.7	1.8	21.3	450	1.91/3.08	65	85
4X25+1X16	0.9/0.7	1.8	25.7	650	1.20/1.91	87	110
4X35+1X16	0.9/0.7	1.8	28.2	795	0.868/1.91	105	130
4X50+1X25	1.0/0.9	1.9	28.9	1020	0.641/1.20	130	160
4X70+1X35	1.1/0.9	2.0	32.2	1360	0.443/0.868	165	195
4X95+1X50	1.1/1.0	2.2	36.9	1870	0.320/0.641	205	235
4X120+1X70	1.2/1.1	2.3	40.8	2342	0.253/0.443	240	265
4X150+1X70	1.4/1.1	2.5	44.7	2778	0.206/0.443	270	300
4X185+1X95	1.6/1.1	2.7	50.7	3495	0.164/0.320	315	340
4X240+1X120	1.7/1.2	2.9	56.4	4416	0.125/0.253	375	395
4X300+1X150	1.8/1.4	3.1	64.0	5422	0.100/0.206	435	445
0.6/1kV-3+2 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
3X16+2X10	0.7/0.7	1.8	20.8	425	1.91/3.08	65	85
3X25+2X16	0.9/0.7	1.8	25.2	600	1.20/1.91	87	110
3X35+2X16	0.9/0.7	1.8	26.8	720	0.868/1.91	105	130
3X50+2X25	1.0/0.9	1.9	28.7	955	0.641/1.20	130	160
3X70+2X35	1.1/0.9	2.0	33.7	1230	0.443/0.868	165	195
3X95+2X50	1.1/1.0	2.2	38.3	1706	0.320/0.641	205	235
3X120+2X70	1.2/1.1	2.3	43.2	2180	0.253/0.443	240	265
3X150+2X70	1.4/1.1	2.4	46.5	2525	0.206/0.443	270	300
3X185+2X95	1.6/1.1	2.6	51.9	3195	0.164/0.320	315	340
3X240+2X120	1.7/1.2	2.8	58.0	4050	0.125/0.253	375	395
3X300+2X150	1.8/1.4	3.0	64.2	4983	0.100/0.206	435	445
