XLPE 2 Cores Copper Cable Application

Name: 2 Cores XLPE Insulated PVC Sheathed Copper Cable Unarmoured 0.6/1kV
SKU: 0

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

STANDARDS :

XLPE 2 Cores Copper Cable Standards:

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

CONSTRUCTION :

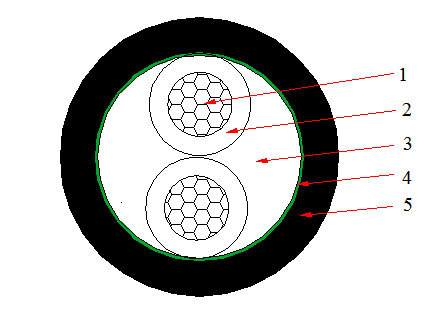

XLPE 2 Cores Copper Cable Construction

1. Conductor: Copper , Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC

PARAMETER :

XLPE 2 Core Copper Cable Parameter

0.6/1kV-2 core copper conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
2X1.5	0.7	1.8	10.4	105	12.1	24	35
2X2.5	0.7	1.8	11.2	135	7.41	33	46
2X4	0.7	1.8	12.2	175	4.61	43	59
2X6	0.7	1.8	13.2	230	3.08	55	75
2X10	0.7	1.8	15.4	340	1.83	76	100
2X16	0.7	1.8	17.4	480	1.15	97	130
2X25	0.9	1.8	20.5	700	0.727	130	165
2X35	0.9	1.8	22.5	930	0.524	160	200
2X50	1.0	1.8	20.3	1000	0.387	195	240
2X70	1.1	1.8	23.3	1400	0.268	245	290
2X95	1.1	1.9	26.2	1950	0.193	305	355
2X120	1.2	2.0	29.4	2450	0.153	355	405
2X150	1.4	2.2	32.6	3000	0.124	405	450
2X185	1.6	2.3	36.0	3700	0.0991	465	510
