Cable Freetox N2XOH Triple Application

Name: N2XOH Cable Triple
SKU: 0

N2xoh cable suitable in low voltage power distribution networks. Special application in places with poor ventilation, direct application in places with public attendance high. It can be installed in ducts, ladders or cable trays, in dry, humid or wet environments.

Cable Freetox N2XOH Triple Standards:

National : NTP-IEC 60228; NTP-IEC 60502-1

International : IEC 60228; IEC 60332-1; IEC 60332-3-24 Cat.C; IEC 60502-1; IEC 60684-2; IEC 60754-2; IEC 60811-1-1; IEC 60811-1-2; IEC 60811-1-3; IEC 60811-1-4; IEC 60811-2-1; IEC 60811-3-1; IEC 61034

CONSTRUCTION :

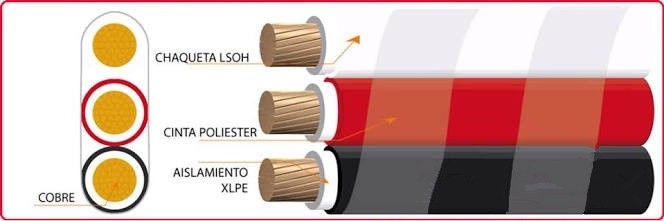

Cable Freetox N2XOH Triple Construction

1. Conductor: Soft copper, class 2.

2. Insulation: Cross linked polyethylene XLPE.

3. Outer sheath: Halogen free thermoplastic compound HFFR-UV.

4. Tape: Polyester tape.

Colour:

Insulation: Natural.

TECHNICAL DATA :

Main characteristics:

The cable has excellent electric properties. The cross-linked polyethylene insulation allows a higher power capacity current under any operation conditions, lower dielectric losses, high insulation resistance. The outer sheath has the following characteristics: Fire retardant, low emission dense smoke and halogen free. Sunlight resistance.

Rated voltage:0.6/1kV
Test voltage:3.5kV A.C.
Maximum conductor temperature : 90°C.
Maximum operating temperature:130 °C
Short-circuit max. conductor temperature:250 °C

PARAMETER :

N2XOH TRIPLE CABLES Design Parameters

No. Conductor x Section No x mm2	Minimum number of wires	Conductor diameter mm	Insulation thickness mm	Sheath thickness mm	Outside diameter mm	Nominal Weight kg/km	Current capacity (*)
No. Conductor x Section No x mm2	Minimum number of wires	Conductor diameter mm	Insulation thickness mm	Sheath thickness mm	Outside diameter mm	Nominal Weight kg/km	Buried A	Air A	Duct A
3-1x4	7	2,5	0,7	1,4	7,5x23	255	65	55	55
3-1x6	7	3,0	0,7	1,4	8,0x24	330	85	65	68
3-1x10	7	3,8	0,7	1,4	8,5x26	450	115	90	95
3-1x16	7	4,8	0,7	1,4	10x30	660	155	125	125
3-1x25	7	6,0	0,9	1,4	12x36	990	200	160	160
3-1x35	7	7,2	0,9	1,4	13x39	1 260	240	200	195
3-1x50	19	8,8	1,0	1,4	15x45	1 680	280	240	230
3-1x70	19	10,4	1,1	1,4	17x51	2 310	345	305	275
3-1x95	19	12,0	1,1	1,5	19x57	3 120	415	375	330
3-1x120	37	13,5	1,2	1,5	21x63	3 840	470	435	380
3-1x150	37	15,2	1,4	1,6	23x69	4 710	520	510	410
3-1x185	37	16,8	1,6	1,6	25x75	5 850	590	575	450
3-1x240	37	19,2	1,7	1,7	28x84	7 560	690	690	525
3-1x300	37	21,5	1,8	1,8	31x93	9 420	775	790	600
3-1x400	61	24,9	2,0	1,9	35x105	12 030	895	955	680
3-1x500	61	27,8	2,2	2,0	39x117	15 180	1 010	1100	700
