NYY Cable Technical Features

NYY CABLE SPECIFICATION

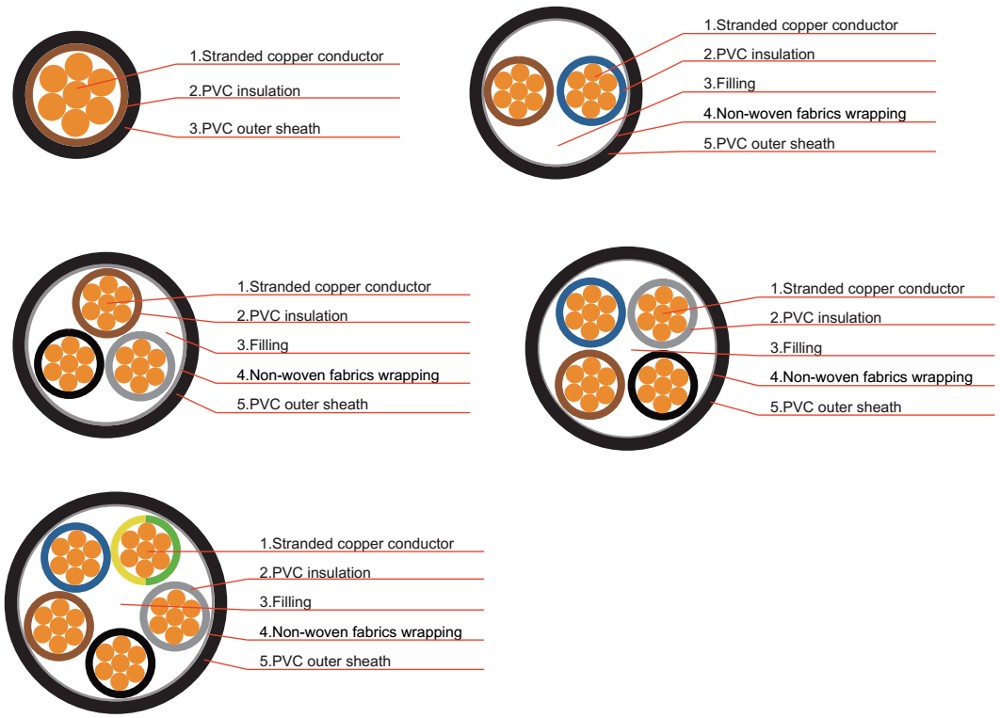

0.6/1kV-1 core copper conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
1X10	1.0	1.4	8.6	159	1.83	55	84
1X16	1.0	1.4	9.6	225	1.15	74	110
1X25	1.2	1.4	11.2	321	0.727	95	135
1X35	1.2	1.4	12.2	418	0.524	115	165
1X50	1.4	1.4	13.6	552	0.387	140	195
1X70	1.4	1.4	15.5	754	0.268	180	240
1X95	1.6	1.5	17.7	1020	0.193	220	290
1X120	1.6	1.5	19.1	1268	0.153	255	325
1X150	1.8	1.6	21	1584	0.124	295	370
1X185	2.0	1.7	23.3	1942	0.0991	340	420
1X240	2.2	1.8	26.2	2514	0.0754	405	485
1x300	2.4	1.9	29	3127	0.0601	470	550
1x400	2.6	2	32.3	4054	0.047	550	630
1x500	2.8	2.1	36.2	5164	0.0366	635	715
1X630	2.8	2.2	40	6431	0.0283	735	820
0.6/1kV-2 core copper conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
2X2.5	0.8	1.8	10.9	149	7.41	25	-
2X4	1	1.8	12.7	228	4.61	33	-
2X6	1	1.8	13.7	278	3.08	42	-
2X10	1	1.8	16.2	380	1.83	58	84
2X16	1	1.8	18.4	530	1.15	76	110
2X25	1.2	1.8	21.7	754	0.727	98	140
2X35	1.2	1.8	23.0	962	0.524	120	175
2X50	1.4	1.8	26.4	1274	0.387	145	205
2X70	1.4	1.9	29.7	1724	0.268	185	255
2X95	1.6	2.0	34.2	2333	0.193	230	305
2X120	1.6	2.1	37.2	2886	0.153	265	350
2X150	1.8	2.2	41.2	3601	0.124	305	390
2X185	2	2.4	45.5	4415	0.0991	350	440
0.6/1kV-3 core copper conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
3X2.5	0.8	1.8	11.4	184	7.41	21	-
3X4	1.0	1.8	13.3	263	4.61	28	-
3X6	1.0	1.8	14.5	337	3.08	36	-
3X10	1.0	1.8	17.1	495	1.83	49	72
3X16	1.0	1.8	19.5	703	1.15	66	94
3X25	1.2	1.8	23.1	1010	0.727	84	120
3X35	1.2	1.8	24.5	1311	0.524	100	145
3X50	1.4	1.8	28.2	1746	0.387	125	175
3X70	1.4	1.9	31.8	2390	0.268	160	210
3X95	1.6	2.1	36.6	3247	0.193	195	255
3X120	1.6	2.2	39.9	4034	0.153	235	295
3X150	1.8	2.3	44.2	5044	0.124	260	330
3X185	2	2.5	48.8	6191	0.0991	305	370
3X240	2.2	2.7	55.0	8031	0.0754	360	425
3X300	2.4	2.8	60.8	9989	0.0601	410	480
0.6/1kV-4 core copper conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
4X2.5	0.8	1.8	12.3	223	7.41	21	-
4X4	1	1.8	14.4	325	4.61	28	-
4X6	1	1.8	15.7	421	3.08	36	-
4X10	1	1.8	18.7	624	1.83	49	72
4X16	1	1.8	21.3	895	1.15	66	94
4X25	1.2	1.8	25.3	1293	0.727	84	120
4X35	1.2	1.8	26.9	1690	0.524	100	145
4X50	1.4	1.9	31.2	2271	0.387	125	175
4X70	1.4	2.0	35.3	3117	0.268	160	210
4X95	1.6	2.2	40.7	4241	0.193	195	255
4X120	1.6	2.3	44.3	5276	0.153	235	295
4X150	1.8	2.5	49.2	6603	0.124	260	330
4X185	2	2.6	54.4	8111	0.0991	305	370
4X240	2.2	2.9	61.3	10531	0.0754	360	425
4X300	2.4	3.1	67.8	13109	0.0601	410	480
0.6/1kV-5 core copper conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
5X2.5	0.8	1.8	13.3	274	7.41	21	-
5X4	1	1.8	15.6	397	4.61	28	-
5X6	1	1.8	17.1	508	3.08	36	-
5X10	1	1.8	20.4	768	1.83	49	72
5X16	1	1.8	23.4	1095	1.15	66	94
5X25	1.2	1.8	27.9	1589	0.727	84	120
5X35	1.2	1.9	29.7	2091	0.524	100	145
5X50	1.4	2.0	34.6	2818	0.387	125	175
5X70	1.4	2.2	39.2	3873	0.268	160	210
5X95	1.6	2.3	45.2	5275	0.193	195	255
5X120	1.6	2.5	49.3	6567	0.153	235	295
5X150	1.8	2.6	54.8	8222	0.124	260	330
5X185	2	2.8	60.5	10104	0.0991	305	370
5X240	2.2	3.1	68.3	13124	0.0754	360	425
5X300	2.4	3.3	75.5	16342	0.0601	410	480
0.6/1kV-3+1 core copper conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
3*4+1*2.5	1.0/0.8	1.8	13.9	500	4.61/7.41	28	-
3*6+1*4	1.0/1.0	1.8	15.4	397	3.08/4.61	36	-
3*10+1*6	1.0/1.0	1.8	18.0	573	1.83/3.08	49	72
3*16+1*10	1.0/1.0	1.8	20.7	827	1.15/1.83	66	94
3*25+1*16	1.2/1.0	1.8	24.4	1219	0.727/1.15	84	120
3*35+1*16	1.2/1.0	1.8	25.6	1502	0.524/1.15	100	145
3*50+1*25	1.4/1.2	1.9	29.8	2042	0.387/0.727	125	175
3*70+1*35	1.4/1.2	2.0	33.3	2784	0.268/0.524	160	210
3*95+1*50	1.6/1.4	2.1	38.4	3761	0.193/0.387	195	255
3*120+1*70	1.6/1.4	2.2	42.2	4748	0.153/0.268	235	295
3*150+1*70	1.8/1.4	2.4	45.9	5638	0.124/0.268	260	330
3*185+1*95	2.0/1.6	2.5	51.0	7166	0.0991/0.193	305	370
3*240+1*120	2.2/1.6	2.7	57.2	9193	0.0754/0.153	360	425
3*300+1*150	2.4/1.8	2.9	63.3	11452	0.0601/0.124	410	480
0.6/1kV-4+1 core copper conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
4*4+1*2.5	1.0/0.8	1.8	15.2	365	4.61/7.41	28	-
4*6+1*4	1.0/1.0	1.8	16.8	484	3.08/4.61	36	-
4*10+1*6	1.0/1.0	1.8	19.7	707	1.83/3.08	49	72
4*16+1*10	1.0/1.0	1.8	22.8	1026	1.15/1.83	66	94
4*25+1*16	1.2/1.0	1.8	27.0	1505	0.727/1.15	84	120
4*35+1*16	1.2/1.0	1.8	28.4	1883	0.524/1.15	100	145
4*50+1*25	1.4/1.2	2.0	33.2	2587	0.387/0.727	125	175
4*70+1*35	1.4/1.2	2.1	37.3	3525	0.268/0.524	160	210
4*95+1*50	1.6/1.4	2.3	43.1	4848	0.193/0.387	195	255
4*120+1*70	1.6/1.4	2.4	47.3	6063	0.153/0.268	235	295
4*150+1*70	1.8/1.4	2.5	51.6	7224	0.124/0.268	260	330
4*185+1*95	2.0/1.6	2.7	57.5	9126	0.0991/0.193	305	370
4*240+1*120	2.2/1.6	3.0	64.5	11778	0.0754/0.153	360	425
4*300+1*150	2.4/1.8	3.2	71.4	14645	0.0601/0.124	410	480
0.6/1kV-3+2 core copper conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
3*4+2*2.5	1.0/0.8	1.8	14.7	341	4.61/7.41	28	-
3*6+2*4	1.0/1.0	1.8	16.5	461	3.08/4.61	36	-
3*10+2*6	1.0/1.0	1.8	19.0	657	1.83/3.08	49	72
3*16+2*10	1.0/1.0	1.8	22.2	959	1.15/1.83	66	94
3*25+2*16	1.2/1.0	1.8	26.0	1399	0.727/1.15	84	120
3*35+2*16	1.2/1.0	1.8	27.0	1680	0.524/1.15	100	145
3*50+2*25	1.4/1.2	1.9	32.0	2331	0.387/0.727	125	175
3*70+2*35	1.4/1.2	2.0	35.4	3162	0.268/0.524	160	210
3*95+2*50	1.6/1.4	2.2	41.0	4318	0.193/0.387	195	255
3*120+2*70	1.6/1.4	2.3	45.3	5498	0.153/0.268	235	295
3*150+2*70	1.8/1.4	2.4	48.5	6379	0.124/0.268	260	330
3*185+2*95	2.0/1.6	2.6	54.4	8168	0.0991/0.193	305	370
3*240+2*120	2.2/1.6	2.8	60.7	10462	0.0754/0.153	360	425
3*300+2*150	2.4/1.8	3.0	67.2	12956	0.0601/0.124	410	480
