Name: Single Core PVC Insulated Unarmoured Cable IEC 60502-1 0.6/1kV
SKU: 0

Single core and multi-core cables with copper or aluminum conductor, PVC insulated and PVC sheathed, cables are rated at 0.6/1(1.2)kV.

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

Standards:

IEC 60502-1, GB/T 12706.1

Note: we can aslo manufacture cables according to BS 6346, AS/NZS 5000.1

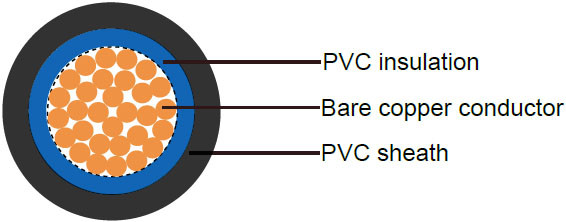

CONSTRUCTION :

Conductor:Aluminum/plain annealed copper
Insulation:PVC(Polyvinyl chloride), rated at 70°C
Insulation colour:black, other colors are available upon request
Sheath:PVC(Polyvinyl chloride)
Sheath colour:Black, other colors are available upon request

TECHNICAL DATA :

Single Core Non-Armored PVC Cable
Cross Section	Conductor Dia. (Approx.)	PVC Insulation Thickness	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
					Weight of Cable (Approx.)
					Copper	Aluminum
mm2	mm	mm	mm	mm	kg/km	kg/km
*1.5	1.38	0.8	1.4	5.8	49.6	--
*2.5	1.78	0.8	1.4	6.2	61.9	47.1
*4	2.25	1	1.4	7.1	86.4	62.3
6	2.76	1	1.4	7.6	108.7	--
*6	2.83	1	1.4	7.6	--	75.3
10	4.05	1	1.4	8.9	158.9	98.3
16	5.1	1	1.4	9.9	222.2	125.7
25	5.9	1.2	1.4	11.1	319.6	168.6
35	6.9	1.2	1.4	12.1	417	206.6
50	8.1	1.4	1.4	13.7	550.8	266.2
70	9.7	1.4	1.4	15.3	758.3	343.8
95	11.4	1.6	1.5	17.6	1031.3	459
120	12.9	1.6	1.5	19.1	1270.8	546.9
150	14.2	1.8	1.6	21	1554	666.2
185	15.9	2	1.6	23.1	1925.1	812.7
240	18.3	2.2	1.7	26.1	2501	1040.9
300	20.4	2.4	1.8	28.8	3103.5	1278.3
400	23.2	2.6	1.9	32.2	3980.7	1614.2
500	26.3	2.8	2	35.9	5028.9	2012.8
630	30	2.8	2.2	40	6406.4	2514.7
800	34	2.8	2.3	44.2	8066.7	3098.5
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material
