U-1000 R2V RO2V Cable

›

‹

  • U-1000 R2V RO2V Cable

›

U-1000 R2V RO2V Cable

Power cable 0,6/1 kV with Cu conductors, XLPE insulated and PVC sheathed

Conductor: Copper

Insulation: XLPE

Sheath: Polyvinylchloride compound PVC 5V-90

Voltage : 0.6/1kV

Number of cores: Multi Core

Package : Export wooden drum & iron wooden drum or as customer require
Phone: +8613204662621
WhatsApp: +8613204662621
E-mail: yongbencable@163.com
Contact Us

- // PRODUCT DETAILS // -


Cable Rigid R2V U-1000 RO2V  Application

Low voltage power cable for fixed application, Copper conductor, XLPE insulation, and PVC outer sheath. U-1000 AR2V aluminum cables can be used in all low-voltage power installations.can be fixed on cable trays, within conduits or fixed to walls. They also can be buried directly with extra mechanical protection

Cable Rigid R2V U-1000 RO2V Standards:

XP C 32-321（ formerly NF C 32-321） , EN 60332-1/NF C 32-070
CONSTRUCTION :

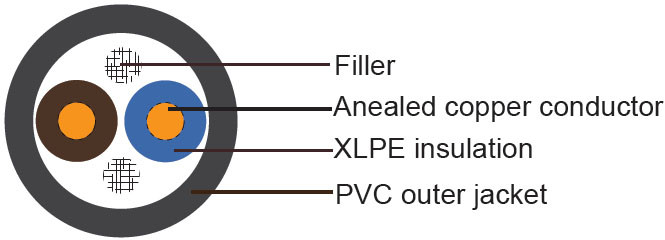

Cable Rigid R2V U-1000 RO2V Construction

u1000-r2v-1
Conductors: Cu, class 2 according to EN 60228
Insulation: : XLPE compound
Bedding: Extruded elastomere or plastomere compound
Sheath: PVC compound

Identification of cores HD 308 S2:
2x - brown and blue
3x - brown, black and blue (S=1,5/2,5 mm2)
3x - brown, black and gray (S≥4 mm2)
3G - brown, blue and yellow / green
4x - brown, black, gray, blue
4G - brown, black, gray, yellow / green

5G - brown, black, gray, blue, yellow / green
TECHNICAL DATA :
U-1000 R2V RO2V- Technical data and tests
Standards: NF C 32-321 C32-321/A1; IEC 60502-1 NF EN 60332-1-2; NF C 15-100
Nominal voltage U0/U: 0,6/1 kV
Test voltage (50 Hz): 4 kV
Maximun voltage Um: 1,2 kV
Maximun operating temperature: +90° C
Maximun short circuit temperature: +250° C
Min. operating temperature
(without mechanical shocks)		: -25° C
Minimum installation and use temp.: -10° C
Minimum bending radius per
D cable diameter (in mm)		: 6 x D
Maximum pulling stress: 5 kg/mm² (of copper cross section)
Sheath colour: black
PARAMETER :

Cable Rigid U-1000 R2V RO2V Cable Parameter

Cross Section

Insulation thickness

Minimum Sheath thickness

Maximum Overall diameter

Approx Cable weight

mm2

mm

mm

mm

kg/km

1x1.5

0.7

1.09

6.6

45

1x2.5

0.7

1.09

7

55

1x4

0.7

1.09

7.6

75

1x6

0.7

1.09

8.2

100

1x10

0.7

1.09

9.2

140

1x16

0.7

1.09

10.5

205

1x25

0.9

1.09

12.5

315

1x35

0.9

1.09

13.5

400

1x50

1

1.09

15

530

1x70

1.1

1.09

17

725

1x95

1.1

1.18

19

985

1x120

1.2

1.18

21

1260

1x150

1.4

1.26

23

1520

1x185

1.6

1.26

25.5

1940

1x240

1.7

1.35

28.5

2310

2x1.5

0.7

1.43

10.5

115

2x2.5

0.7

1.43

11.5

145

2x4

0.7

1.43

13

195

2x6

0.7

1.43

14

265

2x10

0.7

1.43

16

390

2x16

0.7

1.43

18.5

560

2x25

0.9

1.43

22

850

2x35

0.9

1.43

24.5

1080

3x1.5

0.7

1.43

11

130

3x2.5

0.7

1.43

12.5

170

3x4

0.7

1.43

13.5

230

3x6

0.7

1.43

15

325

3x10

0.7

1.43

17

485

3x16

0.7

1.43

19.5

705

3x25

0.9

1.43

23.5

1080

3x35

0.9

1.43

26

1390

3x50

1

1.43

29

1840

3x70

1.1

1.52

34

2540

3x95

1.1

1.6

38.5

3430

3x120

1.2

1.69

42.5

4440

3x150

1.4

1.86

47.5

5380

3x185

1.6

1.94

53

6920

3x240

1.7

2.11

59.5

8420

3x300

1.8

2.28

66

11300

4x1.5

0.7

1.8

11.3

180

4x2.5

0.7

1.8

12.2

220

4x4

0.7

1.8

13.3

300

4x6

0.7

1.8

15

420

4x10

0.7

1.8

17.25

630

4x16

0.7

1.8

18.8

900

4x25

0.9

1.8

23

1350

4x35

0.9

1.8

25.1

1750

4x50

1

1.9

29.1

2350

4x70

1.1

2

33.9

3400

4x95

1.1

2.1

38.4

4500

4x120

1.2

2.3

42.4

5700

4x150

1.4

2.4

47.2

7050

4x185

1.6

2.6

52.65

8700

4x240

1.7

2.8

59

11400

4x300

1.8

3

64.8

14200

3x50+35

1

1.8

28.8

2200

3x70+50

1.1

2

33.4

3100

3x95+50

1.1

2.1

37

3950

3x120+70

1.2

2.2

41.3

5050

3x150+70

1.4

2.3

45.1

6100

3x185+70

1.6

2.5

50

7400

3x240+95

1.7

2.7

55.8

9700

5x1.5

0.7

1.8

12.1

205

5x2.5

0.7

1.8

13.1

260

5x4

0.7

1.8

14

350

5x6

0.7

1.8

16.3

500

5x10

0.7

1.8

18.5

760

5x16

0.7

1.8

20.6

1100

5x25

0.9

1.8

25.4

1600

7x1.5

0.7

1.8

12.3

260

7x2.5

0.7

1.8

13.2

330

7x4

0.7

1.8

15.4

450

8x1.5

0.7

1.8

13.9

290

8x2.5

0.7

1.8

14.9

380

8x4

0.7

1.8

16.5

520

10x1.5

0.7

1.8

15.8

350

10x2.5

0.7

1.8

17

450

10x4

0.7

1.8

19

630

12x1.5

0.7

1.8

15.5

390

12x2.5

0.7

1.8

16.8

510

12x4

0.7

1.8

19.6

700

14x1.5

0.7

1.8

17

440

14x2.5

0.7

1.8

18.3

580

14x4

0.7

1.8

20.5

800

19x1.5

0.7

1.8

17.9

550

19x2.5

0.7

1.8

19.4

740

19x4

0.7

1.8

22.6

1050

24x1.5

0.7

1.8

20.7

670

24x2.5

0.7

1.8

23.2

900

30x1.5

0.7

1.8

22.6

800

30x2.5

0.7

1.8

24.5

1100

37x1.5

0.7

1.8

23.5

950

37x2.5

0.7

1.8

26.3

1300
