VCT Cable

0.6/1kV PVC Insulated PVC Sheathed Cabtyre Cable

Conductor: Stranded, composite annealed copper stranded wire (Class 5)

Insulation: PVC

Sheath: PVC

Voltage: 0.6/1kV

Number of cores: Multi Core

Package: Export wooden drum & iron wooden drum or as customer require
Phone: +8613204662621
WhatsApp: +8613204662621
E-mail: yongbencable@163.com
Contact Us

- // PRODUCT DETAILS // -

Application

– Mostly used in portable electrical appliances in factories, mines, and farms that use under 0.6/1kV volts or circuits of similar usage.

Standards:

Electrical appliance safety standard

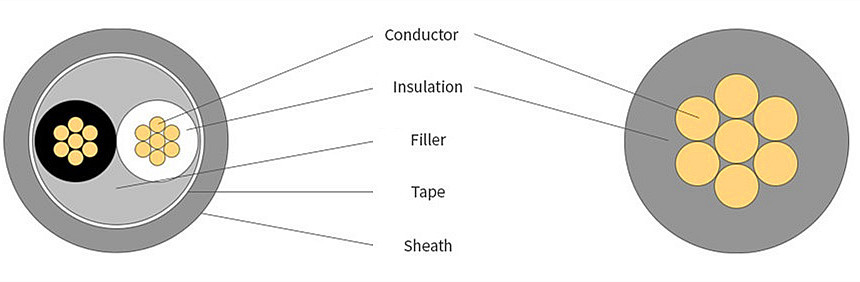

Construction

tfr-cv-cable-structure

– Conductor : Stranded, composite annealed copper stranded wire (CLASS 5)
– Insulator : PVC
– Sheath : PVC

Number of inner wires

Color

2 inner wires

Black,White

3 inner wires

Black,White,Red or Black,White,Green

4 inner wires

Black,White,Red,Green

Single Core :
ConductorNominal
Insulation
Thickness		Nominal
Sheath
Thickness		Overall
Diameter		Max.
Conductor
Resistance
at 20℃		Test
Voltage		Approx.
Weight
Nominal
Sectional
Area		Number &
Diameter
of Wire		Outer
Diameter
With platingWithout plating
mm2No./mmmmmmmmmmΩ/kmkVkg/km
1.00.211.30.81.46.019.5203.550
1.50.261.60.81.46.513.313.73.560
2.50.262.10.81.47.07.988.213.580
40.312.61.01.48.04.955.093.5100
60.313.61.01.49.03.303.393.5130
100.414.81.01.410.01.911.953.5180
160.416.01.01.411.01.211.243.5240
250.417.41.21.413.00.7800.7953.5350
350.418.71.21.414.50.5540.5653.5450
500.4110.41.41.416.50.3860.3933.5610
700.5112.51.41.418.50.2720.2773.5820
950.5114.51.61.521.50.2060.213.51,110
1200.5116.21.61.523.00.1290.1643.51,370
1500.5118.21.81.626.00.1610.1323.51,680
1850.5120.22.01.728.00.1060.1083.52,070
2400.5123.32.21.832.00.08010.08173.52,710
3000.5126.02.41.935.50.06410.06543.53,360
Two Core :
ConductorNominal
Insulation
Thickness		Nominal
Sheath
Thickness		Overall
Diameter		Max.
Conductor
Resistance
at 20℃		Test
Voltage		Approx.
Weight
Nominal
Sectional
Area		Number &
Diameter
of Wire		Outer
Diameter
With platingWithout plating
mm2No./mmmmmmmmmmΩ/kmkVkg/km
1.00.211.30.81.810.019.520.03.5120
1.50.261.60.81.810.513.313.73.5130
2.50.262.10.81.811.57.988.213.5160
40.312.61.01.813.54.955.093.5220
60.313.61.01.815.53.303.393.5290
100.414.81.01.817.51.911.953.5400
160.416.01.01.820.01.211.243.5530
250.417.41.21.823.50.7800.7953.5770
350.418.71.21.826.50.5540.5653.5980
500.4110.41.41.930.50.3860.3933.51,320
700.5112.51.42.135.50.2720.2773.51,800
950.5114.51.62.240.50.2060.2103.52,430
Three Core :

Conductor

Nominal
Insulation
Thickness

Nominal
Sheath
Thickness

Overall
Diameter

Max.
Conductor
Resistance
at 20℃

Test
Voltage

Approx.
Weight

Nominal
Sectional
Area

Number &
Diameter
of Wire

Outer
Diameter

With plating

Without plating

mm2

No./mm

mm

mm

mm

mm

Ω/km

kV

kg/km

1.0

0.21

1.3

0.8

1.8

10.5

19.5

20.0

3.5

140

1.5

0.26

1.6

0.8

1.8

11.0

13.3

13.7

3.5

160

2.5

0.26

2.1

0.8

1.8

12.0

7.98

8.21

3.5

200

4

0.31

2.6

1.0

1.8

14.0

4.95

5.09

3.5

280

6

0.31

3.6

1.0

1.8

16.0

3.30

3.39

3.5

370

10

0.41

4.8

1.0

1.8

19.0

1.91

1.95

3.5

520

16

0.41

6.0

1.0

1.8

21.5

1.21

1.24

3.5

700

25

0.41

7.4

1.2

1.8

25.0

0.780

0.795

3.5

1,030

35

0.41

8.7

1.2

1.8

28.0

0.554

0.565

3.5

1,340

50

0.41

10.4

1.4

2.0

33.0

0.386

0.393

3.5

1,820

70

0.51

12.5

1.4

2.2

38.0

0.272

0.277

3.5

2,500

95

0.51

14.5

1.6

2.3

43.5

0.206

0.21

3.5

3,380

Four Core :
ConductorNominal
Insulation
Thickness		Nominal
Sheath
Thickness		Overall
Diameter		Max.
Conductor
Resistance
at 20℃		Test
Voltage		Approx.
Weight
Nominal
Sectional
Area		Number &
Diameter
of Wire		Outer
Diameter
With platingWithout plating
mm2No./mmmmmmmmmmΩ/kmkVkg/km
1.00.211.30.81.811.019.520.03.5170
1.50.261.60.81.812.013.313.73.5190
2.50.262.10.81.813.07.988.213.5240
40.312.61.01.815.04.955.093.5340
60.313.61.01.817.53.303.393.5460
100.414.81.01.820.51.911.953.5650
160.416.01.01.823.51.211.243.5900
250.417.41.21.828.00.7800.7953.51,330
350.418.71.21.931.00.5540.5653.51,750
500.4110.41.42.136.50.3860.3933.52,370
700.5112.51.42.342.00.2720.2773.53,270
950.5114.51.62.548.50.2060.213.54,450
C.C : Compact Circular
