XV Cable Application

Name: XV Cable
SKU: 0

XV Cable is used for electricity supply in low voltage installation systems. It is well adapted to underground use in industrial applications with an additional mechanical protection. XV cable can be fixed on cable trays, within conduits or fixed to walls.

XV Cable Standard

NF C 32-321, IEC 60502-1, NF C 32-070 C2

Flame Retardant according to IEC 60332-1-2

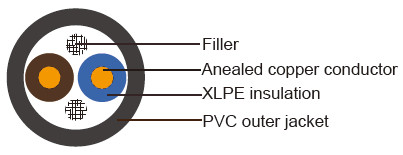

CONSTRUCTION :

Conductor 1.5mm2 to 4mm2: Class 1 solid copper conductor*

6mm2 and above: Class 2 stranded copper conductor *

Class 2 stranded conductor available for these sizes on request

Insulation XLPE (Cross-Linked Polyethylene)

Filler: Not fibrous and not hygroscopic fill

Sheath PVC (Polyvinyl Chloride)

TECHNICAL DATA :

PHYSICAL PROPERTIES:

Minimum bending radius: 12 x Ø
Operation temperature range: -15 °C to 90 °C
Short-circuit temperature: 250 °C

ELECTRICAL PROPERTIES:

Working Voltage: 600/1000 volts
Test voltage: 3500 volts
Insulation resistance: 1000 MΩ x km

PARAMETER :

0.6/1kV-1 core copper conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
1X1.5	0.7	1.4	5.5	48	12.1	23	32
1X2.5	0.7	1.4	5.9	59	7.41	31	42
1X4	0.7	1.4	6.4	75	4.61	41	55
1X6	0.7	1.4	6.9	95	3.08	52	69
1X10	0.7	1.4	8.0	140	1.83	71	92
1X16	0.7	1.4	9.0	200	1.15	92	115
1X25	0.9	1.4	10.6	310	0.727	120	150
1X35	0.9	1.4	11.6	410	0.524	150	180
1X50	1.0	1.4	13.1	510	0.387	180	215
1X70	1.1	1.4	15.0	710	0.268	230	265
1X95	1.1	1.5	16.8	990	0.193	285	320
1X120	1.2	1.5	18.4	1230	0.153	335	360
1X150	1.4	1.6	20.5	1450	0.124	385	410
1X185	1.6	1.6	22.6	1800	0.0991	450	460
1X240	1.7	1.7	25.2	2300	0.0754	535	535
1x300	1.8	1.8	27.8	2960	0.0601	620	605
1x400	2.0	1.9	31.4	3800	0.0470	720	685
1x500	2.2	2.0	34.9	4800	0.0366	835	775
1X630	2.4	2.2	39.1	6100	0.0283	960	865
0.6/1kV-2 core copper conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
2X1.5	0.7	1.8	10.4	105	12.1	24	35
2X2.5	0.7	1.8	11.2	135	7.41	33	46
2X4	0.7	1.8	12.2	175	4.61	43	59
2X6	0.7	1.8	13.2	230	3.08	55	75
2X10	0.7	1.8	15.4	340	1.83	76	100
2X16	0.7	1.8	17.4	480	1.15	97	130
2X25	0.9	1.8	20.5	700	0.727	130	165
2X35	0.9	1.8	22.5	930	0.524	160	200
2X50	1.0	1.8	20.3	1000	0.387	195	240
2X70	1.1	1.8	23.3	1400	0.268	245	290
2X95	1.1	1.9	26.2	1950	0.193	305	355
2X120	1.2	2.0	29.4	2450	0.153	355	405
2X150	1.4	2.2	32.6	3000	0.124	405	450
2X185	1.6	2.3	36.0	3700	0.0991	465	510
0.6/1kV-3 core copper conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
3X1.5	0.7	1.8	11.8	135	12.1	21	30
3X2.5	0.7	1.8	12.7	180	7.41	28	39
3X4	0.7	1.8	13.8	225	4.61	37	51
3X6	0.7	1.8	14.9	300	3.08	47	64
3X10	0.7	1.8	17.2	430	1.83	65	86
3X16	0.7	1.8	19.4	630	1.15	84	110
3X25	0.9	1.8	22.8	940	0.727	110	140
3X35	0.9	1.8	25.0	1250	0.524	135	170
3X50	1.0	1.8	24.4	1500	0.387	170	205
3X70	1.1	1.9	29.4	2140	0.268	215	250
3X95	1.1	2.0	33.6	2960	0.193	265	300
3X120	1.2	2.1	35.9	3760	0.153	310	345
3X150	1.4	2.3	39.9	4420	0.124	350	385
3X185	1.6	2.4	44.1	5950	0.0991	405	435
3X240	1.7	2.6	51.1	7100	0.0754	480	500
3X300	1.8	2.7	56.1	9000	0.0601	555	565
3X400	2.0	3.0	62.4	10000	0.0470	640	640
0.6/1kV-4 core copper conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
4X1.5	0.7	1.8	12.6	160	12.1	21	30
4X2.5	0.7	1.8	13.6	210	7.41	28	39
4X4	0.7	1.8	14.8	280	4.61	37	51
4X6	0.7	1.8	16.0	380	3.08	47	64
4X10	0.7	1.8	18.6	530	1.83	65	86
4X16	0.7	1.8	21.0	800	1.15	84	110
4X25	0.9	1.8	24.9	1240	0.727	110	140
4X35	0.9	1.8	28.3	1600	0.524	135	170
4X50	1.0	1.8	28.4	2000	0.387	170	205
4X70	1.1	2.0	33.1	2800	0.268	215	250
4X95	1.1	2.1	37.1	4000	0.193	265	300
4X120	1.2	2.2	40.8	5000	0.153	310	345
4X150	1.4	2.4	45.2	6100	0.124	350	385
4X185	1.6	2.6	52.1	7600	0.0991	405	435
4X240	1.7	2.8	57.8	9500	0.0754	480	500
4X300	1.8	3.0	63.5	12000	0.0601	555	565
4X400	2.0	3.3	70.9	16000	0.0470	640	640
