N2XB2Y Cable Application

Name: N2XB2Y Cable
SKU: 0

N2XB2Y cable is used for laying in the ground,but also in water, within facilities, in cable canals, in concrete. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants. Applied in conditions requiring protection against heavier mechanical damages, but where cables are not exposed to heavier tensile strain.

N2XB2Y Cable Standards:

HD 603 S1, IEC 60502-1

CONSTRUCTION :

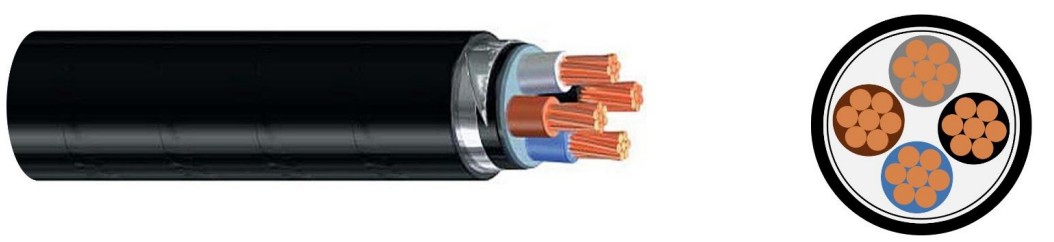

N2XB2Y Cable Construction

Conductor: Copper Class 1: solid conductor, or Class 2: stranded conductor
Insulation:Cross-linked polyethylene XLPE
Filler: Non-hygroscopic material
Binder tape: Non-hygroscopic material
Inner sheath: Polyvinyl chloride PVC
Armour: Double galvanized steel tape
Outer sheath: HDPE

TECHNICAL DATA :

Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV
Nominal Voltage DC (core-earth/core-core) :1.8/1.8kV
Test Voltage:4kV
Min. temp. for cable laying: -5°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter

PARAMETER :

NOMINAL CROSS-SECTION	MAX. RESISTANCE AT 20°C	CURRENT CAPACITY IN AIR	CURRENT CAPACITY IN EARTH	OUTER DIAM. (APPROX.)	CABLE WEIGHT (APPROX.)
mm²	Ω/km	A	A	mm	kg/km
2x4	4,61	42	52	14,2	326
2x6	3,08	53	64	15,2	390
2x10	1,83	74	86	17,2	521
2x16	1,15	98	112	19,0	706
2x25	0,727	133	145	22,0	1001
2x35	0,524	162	174	24,2	1275
2x50	0,387	197	206	27,4	1729
2x70	0,268	250	254	31,4	2299
3x10	1830	74	86	18,0	637
3x16	1150	98	112	19,9	884
3x25	0,727	133	145	23,2	1275
3x35	0,524	162	174	24,5	1341
3x50	0,387	197	206	28,3	2044
3x70	0,268	250	254	32,5	2709
3x95	0,193	308	305	35,7	3493
3x120	0,153	359	348	39,1	4363
3x150	0,124	412	392	43,2	5336
3x185	0,0991	475	444	47,1	6470
3x240	0,0754	564	517	52,5	8185
4x10	1830	74	86	19,3	841
4x16	1150	98	112	21,5	1162
4x25	0,727	133	145	25,1	1671
4x35	0,524	162	174	27,1	1847
4x50	0,387	197	206	31,2	2741
4x70	0,268	250	254	35,8	3662
4x95	0,193	308	305	39,6	4821
4x120	0,153	359	348	43,4	5903
4x150	0,124	412	392	48,8	7290
4x185	0,0991	475	444	53,2	8815
4x240	0,0754	564	517	59,3	11194
5x10	1830	74	86	20,7	885,6
5x16	1150	98	112	23,1	1258,4
5x25	0,727	133	145	27,2	1847,4
5x35	0,524	162	174	30,2	2429,2
5x50	0,387	197	206	35,6	3545,1
5x70	0,268	250	254	40,7	4781,6
5x95	0,193	308	305	45,4	6287,1
