NAYBY Cable Low Voltage Aluminum Cable with Double Galvanized Steel Tape Armoured

Conductor: Aluminum

Insulation: Polyvinyl chloride PVC

Armour: Double galvanized steel tape

Sheath: Polyvinyl chloride PVC

Voltage : 0.6/1kV

Package : Export wooden drum & iron wooden drum or as customer require
Phone: +8613204662621
WhatsApp: +8613204662621
E-mail: yongbencable@163.com
Contact Us

- // PRODUCT DETAILS // -


NAYBY Cable Application

NAYBY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

NAYBY Cable Standards:

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
CONSTRUCTION :

NAYBY Cable Construction

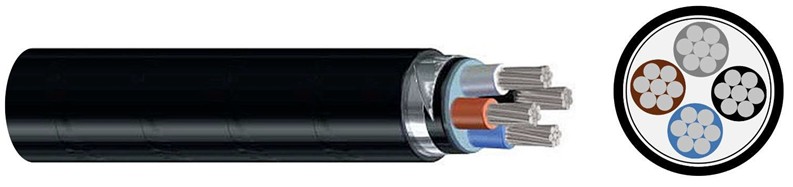

nayby structure

Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
Insulation: Polyvinyl chloride PVC
Filler: Non-hygroscopic material
Binder tape: Non-hygroscopic material
Inner sheath: Polyvinyl chloride PVC
Armour: Double galvanized steel tape
Outer sheath: Polyvinyl chloride PVC
TECHNICAL :
Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV
Nominal Voltage DC (core-earth/core-core) :1.8/1.8kV
Test Voltage:4kV
Temperature Rating:
Flexed: 5°C to +70°C
Fixed: -35°C to +70°C
Maximum Short Circuit Temperature:
+160°C (max 5 seconds)
Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter
PARAMETER :

0.6/1kV-3 core aluminum conductor PVC insulated steel tape armored PVC sheathed power cable

Nominal cross sectional area

Insulation thickness

Non-magnetic steel tape thickness

Sheath thickness

Approximate outer diameter

Approx.
weight

Max.D.C resistance of conductor（20℃）

Current carrying capacity

mm2

mm

mm

mm

mm

kg/km

Ω/km

In Air(A)

In Ground(A)

3X2.5

0.8

0.2

1.8

14.3

276

12.1

-

-

3X4

1.0

0.2

1.8

16.1

347

7.41

-

-

3X6

1.0

0.2

1.8

17.3

397

4.61

-

-

3X10

1.0

0.2

1.8

19.9

510

3.08

38

54

3X16

1.0

0.2

1.8

22.3

634

1.91

51

71

3X25

1.2

0.2

1.8

25.9

833

1.2

66

92

3X35

1.2

0.2

1.8

27.2

961

0.868

81

110

3X50

1.4

0.2

1.9

31.1

1229

0.641

98

130

3X70

1.4

0.2

2.0

35.2

1577

0.443

120

160

3X95

1.6

0.5

2.2

41.3

2432

0.32

150

195

3X120

1.6

0.5

2.3

44.6

2824

0.253

180

225

3X150

1.8

0.5

2.5

49.4

3424

0.206

205

250

3X185

2

0.5

2.6

54.0

4045

0.164

235

285

3X240

2.2

0.5

2.8

60.6

5047

0.125

280

330

3X300

2.4

0.5

3.0

66.4

6024

0.1

320

370

0.6/1kV-4 core aluminum conductor PVC insulated steel tape armored PVC sheathed power cable

Nominal cross sectional area

Insulation thickness

Non-magnetic steel tape thickness

Sheath thickness

Approximate outer diameter

Approx.
weight

Max.D.C resistance of conductor（20℃）

Current carrying capacity

mm2

mm

mm

mm

mm

kg/km

Ω/km

In Air(A)

In Ground(A)

4X2.5

0.8

0.2

1.8

14.9

320

12.1

-

-

4X4

1

0.2

1.8

17.2

396

7.41

-

-

4X6

1

0.2

1.8

18.5

457

4.61

-

-

4X10

1

0.2

1.8

21.5

597

3.08

38

54

4X16

1

0.2

1.8

24.1

747

1.91

51

71

4X25

1.2

0.2

1.8

28.1

989

1.2

66

92

4X35

1.2

0.2

1.9

29.8

1166

0.868

81

110

4X50

1.4

0.2

2.0

34.6

1537

0.641

98

130

4X70

1.4

0.5

2.2

40.0

2327

0.443

120

160

4X95

1.6

0.5

2.4

45.4

2951

0.32

150

195

4X120

1.6

0.5

2.5

49.5

3498

0.253

180

225

4X150

1.8

0.5

2.6

54.4

4191

0.206

205

250

4X185

2

0.5

2.8

60.0

5036

0.164

235

285

4X240

2.2

0.5

3.0

66.9

6229

0.125

280

330

4X300

2.4

0.5

3.2

73.4

7467

0.1

320

370

0.6/1kV-5 core aluminum conductor PVC insulated steel tape armored PVC sheathed power cable

Nominal cross sectional area

Insulation thickness

Non-magnetic steel tape thickness

Sheath thickness

Approximate outer diameter

Approx.
weight

Max.D.C resistance of conductor（20℃）

Current carrying capacity

mm2

mm

mm

mm

mm

kg/km

Ω/km

In Air(A)

In Ground(A)

5X2.5

0.8

0.2

1.8

16.1

356

12.1

-

-

5X4

1

0.2

1.8

18.4

459

7.41

-

-

5X6

1

0.2

1.8

19.9

525

4.61

-

-

5X10

1

0.2

1.8

23.2

700

3.08

38

54

5X16

1

0.2

1.8

26.2

871

1.91

51

71

5X25

1.2

0.2

1.9

30.8

1174

1.2

66

92

5X35

1.2

0.2

2.0

32.7

1391

0.868

81

110

5X50

1.4

0.5

2.2

39.3

2224

0.641

98

130

5X70

1.4

0.5

2.3

43.9

2760

0.443

120

160

5X95

1.6

0.5

2.5

50.4

3574

0.32

150

195

5X120

1.6

0.5

2.6

54.4

4181

0.253

180

225

5X150

1.8

0.5

2.8

60.3

5093

0.206

205

250

5X185

2

0.5

3.0

66.1

6056

0.164

235

285

5X240

2.2

0.5

3.3

73.9

7520

0.125

280

330

5X300

2.4

0.5

3.5

81.5

9126

0.1

320

370
