Armoured Cables BS 5467 and BS 6346

Voltage Rating: 600/1000 Volts, 1900/3300 Volts

Conductor: soft annealed copper

Insulation: Cross Linked Poly Ethylene (XLPE) or Polyvinyl Chloride (PVC)

Armour: steel wire

Oversheath: PVC
Phone: +8613204662621
WhatsApp: +8613204662621
E-mail: yongbencable@163.com
Contact Us

- // PRODUCT DETAILS // -


Armoured Cables BS 5467 and BS 6346 Definition

Armoured Cable is the name given to electrical cable constructed with a layer of aluminum wire armour or steel wire armour. Cables in these standards are intended for use in supply of main electricity and can be found in underground systems, power networks, cable ducting, fixed installation in industrial areas, on exterior surface walls, building and similar applications.SPECIFICATIONS :

Armoured Cables BS 5467 and BS 6346 Specifications

ELECTRICAL PERFORMANCECables manufactured to BS 5467 and BS 6346 are rated for 0.6/1kV, 1.9/3.3kV
STANDARDIEC 60502-1, BS 5467 and BS 6346
APPLICATIONDistribution networks, Industrial use
CHEMICAL PERFORMANCEChemical & Oil resistance: Good
MECHANICAL PERFORMANCEMinimum bending raduis: x10 cable diameter (unarmoured)
Minimum bending raduis: x20 cable diameter (unarmoured)
FIRE PERFORMANCEFlame non-propagation base on IEC 60332-1
Reduced emission of Halogens chlorine<15%
TERMINAL PERFORMANCEMaximum service temperature: 90°C
Maximum short-circuit temperature: 160°C(max. 5s)
Minimum service temperature: -40°C
CONSTRUCTION :

Armoured Cables BS 5467 and BS 6346 Construction

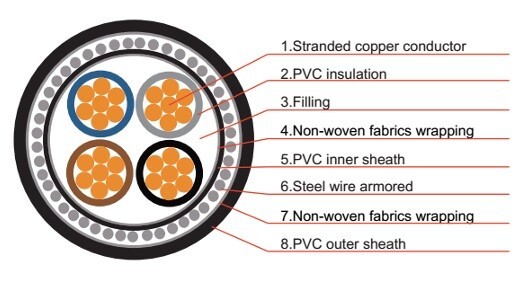

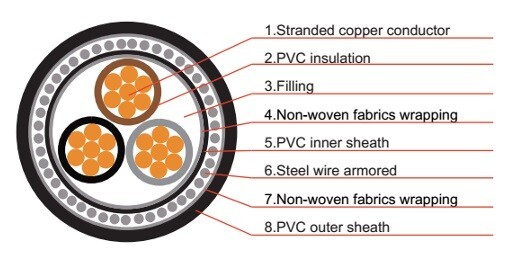

  • Conductors: soft annealed copper and can be either stranded circular or shaped.
  • Insulation: Cross Linked Poly Ethylene (XLPE) or Polyvinyl Chloride (PVC).
  • Bedding
  • Armour: single layer of steel wire
  • Oversheath: single layer of extruded PVC and is usually black in color.
600/1000 Volts Armoured Cables BS 5467 and BS 6346600/1000 Volts Armoured Cables BS 5467 and BS 6346
PARAMETER :

Armoured Cable BS 5467 XLPE Insulated

Cross Sectional Area

Size of Strand

No. of Strands

No. of Cores

Nominal Insulation Thickness

Nominal Bedding Thickness

Armour Diameter

Nominal Sheathing Thickness

Average Diameter of 3 and 4 cores

1.5mm a

.53mm

7

3/4

.6mm

.8mm

0.9mm

1.3mm

12.6/13.3mm

2.5mm a

.67mm

7

3/4

.7mm

.8mm

0.9mm

1.4mm

14.1/15mm

4.0mm a

.85mm

7

3/4

.7mm

.8mm

0.9mm

1.4mm

15.3/16.4mm

6.0mm a

1.04mm

7

3/4

.7mm

.8mm

0.9/1.25mm

1.4/1.5mm

16.6/18.7mm

10mm a

1.35mm

7

3/4

.7mm

.8mm

1.25mm

1.5mm

19.5/21.1mm

16mm a

1.7mm

7

3/4

.7mm

.8mm

1.25mm

1.6mm

21.6/23.4mm

25mm ab

2.14mm

7

3/4

.9mm

1.0mm

1.6mm

1.7mm

26.7/26.1mm

35mm b

2.58mm

7

3/4

.9mm

1.0mm

1.6mm

1.8mm

25.7/28.6mm

50mm b

1.82mm

19

3/4

1.0mm

1.0mm

1.6mm

1.8/1.9mm

28.5/32mm

70mm b

2.18mm

19

3/4

1.1mm

1.0mm

1.6/2.0mm

1.9/2.1mm

32.2/37.7mm

95mm b

2.58mm

19

3/4

1.1mm

1.2mm

2.0mm

2.1/2.2mm

37/41.7mm

120mm b

2.85mm

19

3/4

1.2mm

1.2mm

2.0/2.5mm

2.2/2.3mm

40.4/47.1mm

150mm b

2.25mm

37

3/4

1.4mm

1.4mm

2.5mm

2.3/2.4mm

45.5/51.4mm

185mm b

2.52mm

37

3/4

1.6mm

1.4mm

2.5mm

2.4/2.6mm

49.8/56.6mm

240mm b

2.25mm

61

3/4

1.7mm

1.4mm

2.5mm

2.6/2.7mm

55.1/63mm


a Circular or Compacted circular stranded conductors (class 2)
b Shaped stranded conductor (class 2)

Armoured Cable BS 6346 PVC Insulated

Cross Sectional Area

Size of Strand

No. of Strands

No. of Cores

Nominal Insulation Thickness

Nominal Bedding Thickness

Armour Diameter

Nominal Sheathing Thickness

Average Diameter of 3 and 4 cores

1.5mm a

.53mm

7

3/4

.6mm

.8mm

0.9mm

1.4mm

12.8/13.5mm

2.5mm a

.67mm

7

3/4

.7mm

.8mm

0.9mm

1.4mm

14.1/15mm

4.0mm a

.85mm

7

3/4

.8mm

.8mm

0.9/1.25mm

1.4/1.5mm

15.8/17.8mm

6.0mm a

1.04mm

7

3/4

.8mm

.8mm

1.25mm

1.5mm

18/19.2mm

10mm a

1.35mm

7

3/4

1.0mm

.8mm

1.25mm

1.6mm

21.2/22.8mm

16mm a

1.7mm

7

3/4

1.0mm

.8mm

1.25/1.6mm

1.6/1.7mm

23.1/26.3mm

25mm ab

2.14mm

7

3/4

1.2mm

1.0mm

1.6mm

1.7/1.8mm

28.2/27.4mm

35mm b

2.58mm

7

3/4

1.2mm

1.0mm

1.6mm

1.8/1.9mm

26.7/29.9mm

50mm b

1.82mm

19

3/4

1.4mm

1.0mm

1.6/2.0mm

1.9/2.0mm

30.1/34.6mm

70mm b

2.18mm

19

3/4

1.4mm

1.2mm

2.0mm

2.0/2.1mm

34.2/38.4mm

95mm b

2.58mm

19

3/4

1.6mm

1.2mm

2.0mm

2.1/2.2mm

38.5/43.5mm

120mm b

2.85mm

19

3/4

1.6mm

1.2mm

2.0/2.5mm

2.2/2.4mm

41.4/48.1mm

150mm b

2.25mm

37

3/4

1.8mm

1.4mm

2.5mm

2.4/2.5mm

46.3/52.4mm

185mm b

2.52mm

37

3/4

2.0mm

1.4mm

2.5mm

2.5/2.6mm

50.7/57.4mm

240mm b

2.25mm

61

3/4

2.2mm

1.6mm

2.5mm

2.6/2.8mm

56.2/64.1mm


a Circular or Compacted circular stranded conductors (class 2)
b Shaped stranded conductor (class 2)
