BS5467 Armoured Cable Application

Name: BS5467 XLPE SWA Steel Wire Armoured Cable Wiring Outdoor Power Cable
SKU: 0

BS5467 Cable - XLPE Armoured (SWA) Low Voltage Power Cable

BS5467 low voltage (600/1000V) SWA and AWA cables, suitable for installation outdoors, indoors, or in cable ducting. General used in power networks, industrial applications, or control systems, where protection against mechanical stress is required.

BS5467 Armoured Cable Stranded Cores Colors

Single: Brown or blue
2 core: Brown and blue
3 core: Brown, black and grey
4 core: Brown, black, grey and blue
5 core: Brown, black, grey, blue and green/yellow
7 to 48 cores: white with printed numbers

CONSTRUCTION :

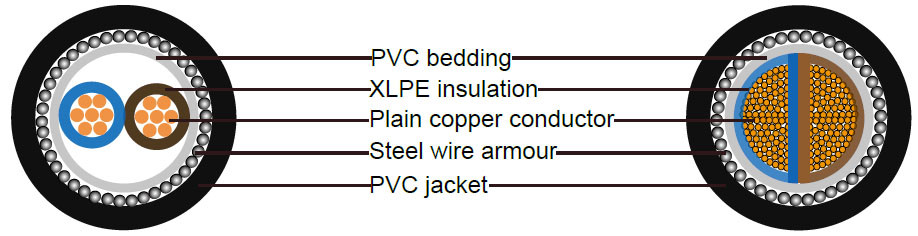

BS5467 Armoured Cable Construction

Conductor: Class 2 stranded copper conductor acc BS EN 60228 (previously BS 6360)
Insulation: Cross Link Polyethylene (XLPE)

Bedding: Polyvinyl Chloride (PVC)

Armour: Steel Wire Armour (SWA)

Sheath: Polyvinyl Chloride PVC

TECHNICAL DATA :

BS5467 Steel Wire Armoured Cable Technical Data

STANDARD	IEC 60502-1, BS 5467 and BS 6346
APPLICATION	Distribution networks, Industrial use
CHEMICAL PERFORMANCE	Chemical & Oil resistance: Good
MECHANICAL PERFORMANCE	Minimum bending raduis: x15cable diameter (unarmoured) Minimum bending raduis: x20 cable diameter (armoured)
FIRE PERFORMANCE	Flame non-propagation base on IEC 60332-1 Reduced emission of Halogens chlorine<15%
TERMINAL PERFORMANCE	Maximum service temperature: 90°C Maximum short-circuit temperature: 150°C(max. 5s) Minimum service temperature: -40°C

PARAMETER :

0.6/1kV-1 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor(20ºC)	Current carrying capacity
mm2	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
1X10	13.2	350	1.83	50	69
1X16	14.3	436	1.15	65	88
1X25	16	566	0.727	84	112
1X35	17.5	785	0.524	105	133
1X50	19	960	0.387	126	161
1X70	20.8	1211	0.268	161	196
1X95	23.1	1632	0.193	200	235
1X120	24.7	1935	0.153	235	270
1X150	26.6	2307	0.124	270	301
1X185	28.8	2730	0.0991	315	343
1X240	31.3	3358	0.0754	375	399
1x300	34.7	4277	0.0601	434	452
1x400	38.7	5362	0.047	504	515
1x500	42.9	6650	0.0366	585	588
1X630	48	8512	0.0283	672	665
1X800	52.7	10440	0.0221	777	756

0.6/1kV-2 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor(20ºC)	Current carrying capacity
mm2	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
2X2.5	14.8	364	7.41	23	32
2X4	15.7	425	4.61	30	41
2X6	17.6	646	3.08	39	53
2X10	20.1	802	1.83	53	70
2X16	22.3	1008	1.15	68	91
2X25	26.3	1470	0.727	91	116
2X35	27.6	1712	0.524	112	140
2X50	30.8	2123	0.387	137	168
2X70	35.4	2974	0.268	172	203
2X95	39.5	3737	0.193	214	249
2X120	42.9	4453	0.153	249	284
2X150	48	5744	0.124	284	315
2X185	52.7	6811	0.0991	326	357

0.6/1kV-3 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor(20ºC)	Current carrying capacity
mm2	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X2.5	15.3	405	7.41	20	27
3X4	16.2	481	4.61	26	36
3X6	18.3	696	3.08	33	45
3X10	20.9	930	1.83	46	60
3X16	23.3	1191	1.15	59	77
3X25	27.6	1745	0.727	77	98
3X35	29	2100	0.524	95	119
3X50	32.5	2628	0.387	119	144
3X70	37.9	3728	0.268	151	175
3X95	41.8	4692	0.193	186	210
3X120	45.5	5645	0.153	217	242
3X150	51.3	7350	0.124	245	270
3X185	55.9	8698	0.0991	284	305
3X240	62.1	10837	0.0754	336	350
3X300	67.4	12990	0.0601	389	396

0.6/1kV-4 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor(20ºC)	Current carrying capacity
mm2	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
4X2.5	16.1	472	7.41	20	27
4X4	18.1	677	4.61	26	36
4X6	19.3	804	3.08	33	45
4X10	22.3	1088	1.83	46	60
4X16	25.7	1571	1.15	59	77
4X25	29.7	2085	0.727	77	98
4X35	31.4	2543	0.524	95	119
4X50	35.3	3214	0.387	119	144
4X70	41.2	4571	0.268	151	175
4X95	45.6	5782	0.193	186	210
4X120	51.2	7557	0.153	217	242
4X150	56.1	9080	0.124	245	270
4X185	61.3	10822	0.0991	284	305
4X240	68.1	13566	0.0754	336	350
4X300	74.1	16356	0.0601	389	396

0.6/1kV-5 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor(20ºC)	Current carrying capacity
mm2	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
5X2.5	17.9	645	7.41	20	27
5X4	19.1	770	4.61	26	36
5X6	20.5	925	3.08	33	45
5X10	24.6	1417	1.83	46	60
5X16	27.6	1812	1.15	59	77
5X25	32.2	2460	0.727	77	98
5X35	34.1	3019	0.524	95	119
5X50	39.7	4166	0.387	119	144
5X70	44.9	5443	0.268	151	175
5X95	51.3	7485	0.193	186	210
5X120	55.9	9026	0.153	217	242
5X150	61.4	10912	0.124	245	270
5X185	67.6	13119	0.0991	284	305
5X240	74.8	16427	0.0754	336	350
5X300	83.2	20915	0.0601	389	396
