Cable Application

Name: VVMV & VVMV-K Cable
SKU: 0

Cable for power supply, for rated voltage up to 0,6/lkV. Suitable for outdoor fixed installations when it is necessary to protect the cable against mechanical aggression or against rodents threat. Can be laid in free air, installed in ducts or directly buried.
Excellent mechanical protection during laying, installation and service.

STANDARD :

Cable Standard

UNE 21123-2, IEC 60502, IEC 60332-1, IEC 60332-3, EN 60332-1, EN 50266

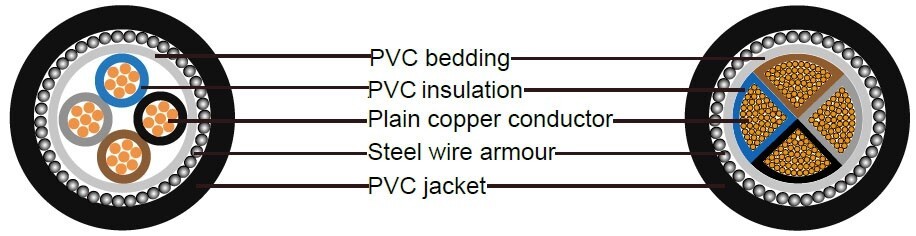

CONSTRUCTION :

Cable Construction

Conductor

Copper (plain annealed): solid class 1 or rigid stranded class 2 , circular or sector shaped

Insulation
PVC - (Polyvinyl chloride)

Bedding /Inner Sheath
PVC - (Polyvinyl chloride)

Armour
Steel galvanized wires (R) helical applied
For single core cables steel is substituted by aluminium wires (lR)

Oversheath
PVC (Polyvinyl chloride), type ST 2

INSULATION COLOR :

Insulation Color

Number of Conductor		2	3	4	5
Insulation colouring (HD 308.S2)	With earth conductor		GNYE-BU-BN	GNYE-BN-BK-GY	GNYE-BU-BN-BK-GY
Insulation colouring (HD 308.S2)	Without earth conductor	BU-BN	BN-BK-GY	BU-BN-BK-GY	BU-BN-BK-GY-BK

TECHNICAL CHARACTERISTICS :

Cable Technical Characteristics

Working voltage: 600/1000 volts
Test voltage 3,5 kV a.c. 5 minutes
Working temperature: -15º C to +70º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332-1
Minimum bending radius: 10 x Ø
Insulation resistance: 20 MΩ x km

Working voltage:	600/1000 volts
Test voltage	3,5 kV a.c. 5 minutes
Working temperature:	-15º C to +70º C
Short circuit temperature:	+160º C
Flame retardant:	IEC 60332-1
Minimum bending radius:	10 x Ø
Insulation resistance:	20 MΩ x km

VVMV & VVMV-K Cable
