CVV Control Cable-Hongda Cable

cvv control cable

Voltage Rating: 450/750 Volts,

Conductor: soft annealed copper

Insulation: PVC
Phone: +8613204662621
WhatsApp: +8613204662621
E-mail: yongbencable@163.com
Contact Us

- // PRODUCT DETAILS // -


CVV Control Cable Application

For supervisory electrical equipment, station control circuits.Suitable for indoor and outdoor installation in wet or dry locations,in conduit, duct, trench and cable tray.

CVV Control Cable Standard

KS C IEC 60502-1
CONSTRUCTION :

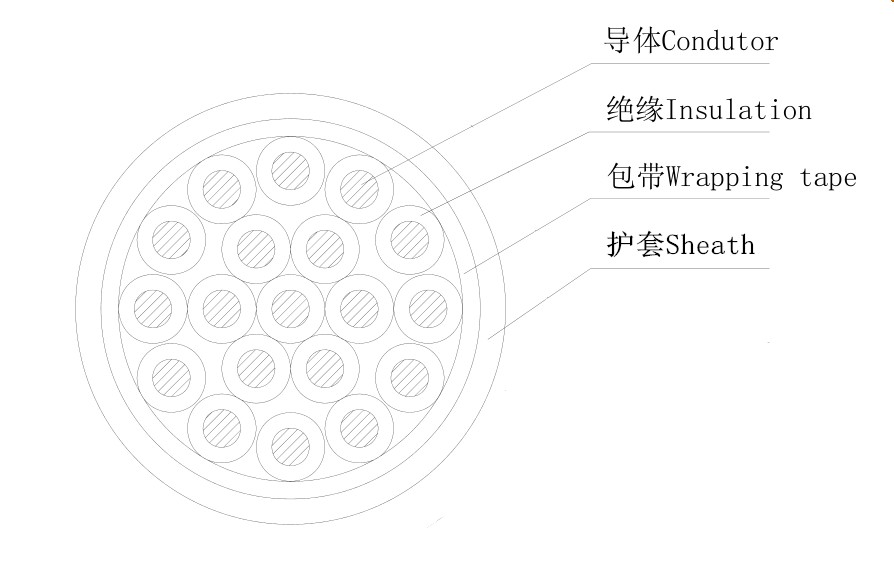

CVV Control Cable Construction

① Conductor: Annealed copper wire for electrical use

② Insulation: PVC or Flame retardant PVC

③ Binder: Polyester Tape

④ Sheath: PVC or Flame retardant PVC

kvv-cable-construction
Cable Type :

Cable Type

SymbolMAX. Operating
Temperature of
Conductor (°C)		Insulation MaterialsSheath MaterialsApplication
CVV60PVCPVCGeneral use
CEV75PolyethylenePVC
CCV90Crosslinked
Polyethylene		PVC
CEE75PolyethylenePolyethylene (Black)Chemical resistance
CCE90Crosslinked PolyethylenePolyethylene (Black)

Shield types and symbols

Shield TypeSymbolRemarks
Annealed copper tape-SAnnealed copper tape is wrapped around cores.
Aluminum laminated plastic tape-SLAApplied for grounding through drain wire.
Annealed copper wire braid-SBShield is formed by braided copper wire.
Annealed copper tape and steel tape-SCFAnnealed copper tape and steel tape are wrapped around cores.
PARAMETER :

CVV Control Cable Parameter

Part NO.No. of coreNominalNo.& dia.ThicknessThicknessOverall diameter (Approx.)Maximum conductor resistanceMinimum insulation resistanceCable
cross-of wires No./mmof insulation mmof sheathmm(at20C)(at70C)weight (Approx.) kg/km
sectional area

mm
Ohm/kmOhm/km
sq.mm






CVV-2C1.00SQ217/0.400.81.810.518.10.0135115
CVV-2C1.50SQ1.57/0.500.81.81112.10.0115135
CVV-2C2.50SQ2.57/0.670.81.8127.410.0093180
CVV-2C4.00SQ47/0.8511.814.54.610.0092255
CVV-2C6.00SQ67/1.0411.815.53.080.0078320
CVV-3C1.00SQ317/0.400.81.81118.10.0135135
CVV-3C1.50SQ1.57/0.500.81.811.512.10.0115160
CVV-3C2.50SQ2.57/0.670.81.8137.410.0093220
CVV-3C4.00SQ47/0.8511.8154.610.0092315
CVV-3C6.00SQ67/1.0411.816.53.080.0078405
CVV-4C1.00SQ417/0.400.81.811.518.10.0135160
CVV-4C1.50SQ1.57/0.500.81.812.512.10.0115195
CVV-4C2.50SQ2.57/0.670.81.8147.410.0093265
CVV-4C4.00SQ47/0.8511.816.54.610.0092390
CVV-4C6.00SQ67/1.0411.8173.080.0078510
CVV-5C1.00SQ517/0.400.81.812.518.10.0135190
CVV-5C1.50SQ1.57/0.500.81.813.512.10.0115230
CVV-5C2.50SQ2.57/0.670.81.8157.410.0093320
CVV-5C4.00SQ47/0.8511.8184.610.0092470
CVV-5C6.00SQ67/1.0411.819.53.080.0078620
CVV-6C1.00SQ617/0.400.81.813.518.10.0135205
CVV-6C1.50SQ1.57/0.500.81.814.512.10.0115255
CVV-6C2.50SQ2.57/0.670.81.8167.410.0093355
CVV-6C4.00SQ47/0.8511.819.54.610.0092525
CVV-6C6.00SQ67/1.0411.8213.080.0078690
CVV-7C1.00SQ717/0.400.81.813.518.10.0135215
CVV-7C1.50SQ1.57/0.500.81.814.512.10.0115270
CVV-7C2.50SQ2.57/0.670.81.8167.410.0093380
CVV-7C4.00SQ47/0.8511.819.54.610.0092570
CVV-7C6.00SQ67/1.0411.8213.080.0078795
