CVVS Control Cable Application

Name: CVVS Control Cable-Copper Tape Shielded Industrial Cable
SKU: 0

For supervisory electrical equipment, station control circuits.Suitable for indoor and outdoor installation in wet or dry locations,in conduit, duct, trench and cable tray.

CVVS Control Cable Standard

KS C IEC 60502-1

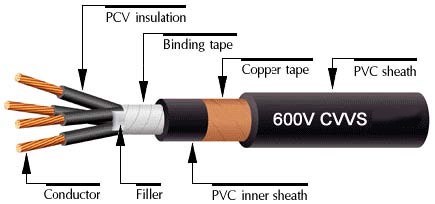

CONSTRUCTION :

CVVS Control Cable Construction

Conductor:Concentric Stranded copper wire

Insulation:PVC Black color

Identification:Printed White number on the surface of Black insulation

Filler:Suitable filler

Binding tape:Suitable tape

Inner sheath:PVC Black color

Shield:Annealed copper tape

Outher Sheath:PVC Black color

CABLE TYPE :

Cable Type

Symbol	MAX. Operating Temperature of Conductor (°C)	Insulation Materials	Sheath Materials	Application
CVV	60	PVC	PVC	General use
CEV	75	Polyethylene	PVC
CCV	90	Crosslinked Polyethylene	PVC
CEE	75	Polyethylene	Polyethylene (Black)	Chemical resistance
CCE	90	Crosslinked Polyethylene	Polyethylene (Black)	Chemical resistance

Shield types and symbols

Shield Type	Symbol	Remarks
Annealed copper tape	-S	Annealed copper tape is wrapped around cores.
Aluminum laminated plastic tape	-SLA	Applied for grounding through drain wire.
Annealed copper wire braid	-SB	Shield is formed by braided copper wire.
Annealed copper tape and steel tape	-SCF	Annealed copper tape and steel tape are wrapped around cores.

PARAMETER :

CVVS Control Cable Parameter

Part NO.	No.of core	Nominal cross-sectional area sq.mm	No.&dia.of wires No./mm	Thickness of insulation mm	Thickness of inner sheath mm	Thickness of outer sheath mm	Overall diameter (Approx.)	Maximum conductor resistance (at 20C)	Minimum insulation resistance	Cable weight
							mm	Ohm/km	(at 70C)	(Approx.)
									Ohm/km	kg/km
CVVS-2C1.00SQ	2	1	7/0.40	0.8	1	1.8	13	18.1	0.0135	205
CVVS-2C1.50Q		1.5	7/0.50	0.8	1	1.8	14	12.1	0.0115	230
CVVS-2C2.50SQ		2.5	7/0.67	0.8	1	1.8	15	7.41	0.0093	280
CVVS-2C4.00SQ		4	7/0.85	1	1	1.8	17	4.61	0.0092	375
CVVS-2C6.00SQ		6	7/1.04	1	1	1.8	18.5	3.08	0.0078	450
CVVS-3C1.00SQ	3	1	7/0.40	0.8	1	1.8	13.5	18.1	0.0135	225
CVVS-3C1.50Q		1.5	7/0.50	0.8	1	1.8	14.5	12.1	0.0115	260
CVVS-3C2.50SQ		2.5	7/0.67	0.8	1	1.8	15.5	7.41	0.0093	325
CVVS-3C4.00SQ		4	7/0.85	1	1	1.8	18	4.61	0.0092	445
CVVS-3C6.00SQ		6	7/1.04	1	1	1.8	19	3.08	0.0078	545
CVVS-4C1.00SQ	4	1	7/0.40	0.8	1	1.8	14.5	18.1	0.0135	260
CVVS-4C1.50Q		1.5	7/0.50	0.8	1	1.8	15.5	12.1	0.0115	300
CVVS-4C2.50SQ		2.5	7/0.67	0.8	1	1.8	16.5	7.41	0.0093	385
CVVS-4C4.00SQ		4	7/0.85	1	1	1.8	19	4.61	0.0092	530
CVVS-4C6.00SQ		6	7/1.04	1	1	1.8	20.5	3.08	0.0078	660
CVVS-5C1.00SQ	5	1	7/0.40	0.8	1	1.8	15.5	18.1	0.0135	295
CVVS-5C1.50Q		1.5	7/0.50	0.8	1	1.8	16.5	12.1	0.0115	345
CVVS-5C2.50SQ		2.5	7/0.67	0.8	1	1.8	18	7.41	0.0093	445
CVVS-5C4.00SQ		4	7/0.85	1	1	1.8	20.5	4.61	0.0092	620
CVVS-5C6.00SQ		6	7/1.04	1	1	1.8	22.5	3.08	0.0078	780
CVVS-6C1.00SQ	6	1	7/0.40	0.8	1	1.8	16.5	18.1	0.0135	320
CVVS-6C1.50Q		1.5	7/0.50	0.8	1	1.8	17.5	12.1	0.0115	375
CVVS-6C2.50SQ		2.5	7/0.67	0.8	1	1.8	19	7.41	0.0093	290
CVVS-6C4.00SQ		4	7/0.85	1	1	1.8	22	4.61	0.0092	685
CVVS-6C6.00SQ		6	7/1.04	1	1	1.8	24	3.08	0.0078	865
CVVS-7C1.00SQ	7	1	7/0.40	0.8	1	1.8	16.5	18.1	0.0135	330
CVVS-7C1.50Q		1.5	7/0.50	0.8	1	1.8	17.5	12.1	0.0115	395
CVVS-7C2.50SQ		2.5	7/0.67	0.8	1	1.8	19	7.41	0.0093	520
CVVS-7C4.00SQ		4	7/0.85	1	1	1.8	22	4.61	0.0092	730
CVVS-7C6.00SQ		6	7/1.04	1	1	1.8	24	3.08	0.0078	930
