KVV Control Cable Application

Name: KVV Control Cable-PVC Insulated and Sheathed Copper Cables
SKU: 0

KVV PVC Insulated Cable belongs to the control cable in the cables for electrical installations. It has good high temperature resistance, cold resistance and aging resistance. It is generally used for control and monitoring circuits and protection circuits. In addition, flame-retardant, fire-resistant and low-smoke and halogen-free control cables can be produced according to user requirements. Different types of KVV cables have different characteristics and functions.

KVV Cable Standard

IEC 60227, IEC 60502, GB/T 9330, BS 6500

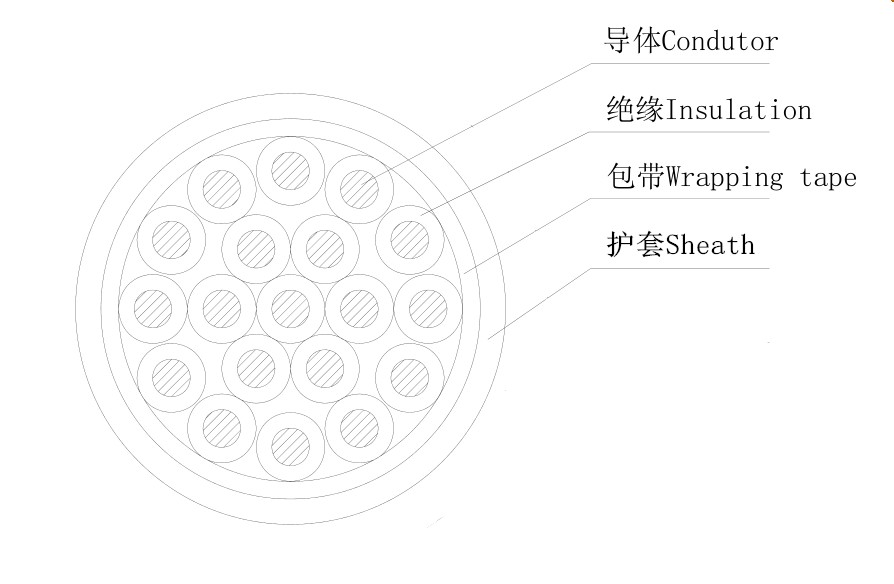

CONSTRUCTION :

KVV Control Cable Types

Model	Name	Main application
KVV	Copper conductor PVC insulated PVC sheathed control cable	For laying indoors, in trenches and in ducts, for fixed installation
KVVP	Copper conductor PVC insulated PVC sheathed copper braiding screened control cable	For laying indoors, in trenches and in dusts, for fixed installation
KVVP2	Copper conductor PVC insulated and sheathed control cable with steel tape shield	For laying indoors, in trenches and in dusts and in ground, able to withstand heavier mechanical force, for fixed installation
KVV22	Copper conductor PVC insulated and sheathed control cable with steel tape armour	For laying indoors, in trenches and in dusts and in ground, able to withstand heavier mechanical force, for fixed installation
KVVR	Copper conductor PVC insulated flexible control cable	For laying indoors, movable and flexible
ZR-KVVRP	Copper conductor PVC insulated PVC sheathed flame retardant flexible control cable with braided shield	Fixed laying indoors with capability of moving and screening
ZR-KVV	Copper conductor PVC insulated and sheathed flame retardant control cable	For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardant
ZR-KVVP2	Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield	For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardant
ZR-KVV22	Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armour	For laying indoors, in trenches, in ducts and underground, the cable should be flame-retardant and able to bear beavier external mechanical force, and for fixed installation
ZR-KVVR	Copper conductor PVC insulated and sheathed flame retardant flexible control cable	For laying indoors, and the cable should be flexible and movablea

TECHNICAL DATA :

KVV Control Cable Technical Data

STANDARD IEC 60227, IEC 60502, GB/T 9330, BS 6500
APPLICATION Industral Use
CHEMICAL PERFORMANCE Chemical & Oil resistance: Good
MECHANICAL PERFORMANCE Minimum bending raduis: x15cable diameter
FIRE PERFORMANCE Flame non-propagation base on IEC 60332-1
Reduced emission of Halogens chlorine<15%
TERMINAL PERFORMANCE Maximum service temperature: 70°C
Maximum short-circuit temperature: 160°C(max. 5s)
Minimum service temperature: -15°C

PARAMETER :

KVV Control Cable CU/PVC/PVC

Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	kg/km
2×0.75	1/0.97	0.6	1.2	6.8	59	2×0.75	7/0.37	0.6	1.2	7.1	62
3×0.75	1/0.97	0.6	1.2	7.2	68	3×0.75	7/0.37	0.6	1.2	7.4	71
4×0.75	1/0.97	0.6	1.2	7.8	83	4×0.75	7/0.37	0.6	1.2	8.1	87
5×0.75	1/0.97	0.6	1.2	8.4	101	5×0.75	7/0.37	0.6	1.2	8.8	106
6×0.75	1/0.97	0.6	1.2	9.0	118	6×0.75	7/0.37	0.6	1.2	9.4	123
7×0.75	1/0.97	0.6	1.2	9.0	123	7×0.75	7/0.37	0.6	1.2	9.4	129
8x0.75	1/0.97	0.6	1.2	9.7	138	8x0.75	7/0.37	0.6	1.2	10.1	144
10x0.75	1/0.97	0.6	1.2	11.2	174	10x0.75	7/0.37	0.6	1.2	11.7	182
12x0.75	1/0.97	0.6	1.5	12.1	210	12x0.75	7/0.37	0.6	1.5	12.7	219
14x0.75	1/0.97	0.6	1.5	12.7	236	14x0.75	7/0.37	0.6	1.5	13.3	247
16x0.75	1/0.97	0.6	1.5	13.3	266	16x0.75	7/0.37	0.6	1.5	13.9	277
19x0.75	1/0.97	0.6	1.5	14.0	301	19x0.75	7/0.37	0.6	1.5	14.6	314
24x0.75	1/0.97	0.6	1.5	16.1	376	24x0.75	7/0.37	0.6	1.5	16.9	393
27x0.75	1/0.97	0.6	1.5	16.4	407	27x0.75	7/0.37	0.6	1.5	17.3	426
30x0.75	1/0.97	0.6	1.5	17.1	446	30x0.75	7/0.37	0.6	1.5	17.9	466
37x0.75	1/0.97	0.6	1.7	18.7	549	37x0.75	7/0.37	0.6	1.7	19.6	574
44x0.75	1/0.97	0.6	1.7	20.9	649	44x0.75	7/0.37	0.6	1.7	21.9	679
48x0.75	1/0.97	0.6	1.7	21.2	692	48x0.75	7/0.37	0.6	1.7	22.3	722
52x0.75	1/0.97	0.6	1.7	21.7	737	52x0.75	7/0.37	0.6	1.7	22.8	770
61x0.75	1/0.97	0.6	1.7	23.1	852	61x0.75	7/0.37	0.6	1.7	24.3	889

STANDARD	IEC 60227, IEC 60502, GB/T 9330, BS 6500
APPLICATION	Industral Use
CHEMICAL PERFORMANCE	Chemical & Oil resistance: Good
MECHANICAL PERFORMANCE	Minimum bending raduis: x15cable diameter
FIRE PERFORMANCE	Flame non-propagation base on IEC 60332-1 Reduced emission of Halogens chlorine<15%
TERMINAL PERFORMANCE	Maximum service temperature: 70°C Maximum short-circuit temperature: 160°C(max. 5s) Minimum service temperature: -15°C
