All Aluminum Alloy Conductors Application

Name: All Aluminum Alloy Conductors IEC 61089 A3
SKU: 0

AAAC conductor is used mainly in urban areas because the spacing is short and the supports are close.All aluminum conductors are made up of one or more strands of aluminum wire depending on the end usage. AAAC conductors are also used extensively in coastal areas because they have a very high degree of corrosion resistance.

Features

High conductivity
Rust free
Extended durability

Standards
ASTM - B 399 Metric Units, ASTM - B 231, TS IEC 1089,
DIN 48201, BS 215, UNE 21.018

Parameter :

IEC Spec All Aluminum Alloy Conductors Type A3

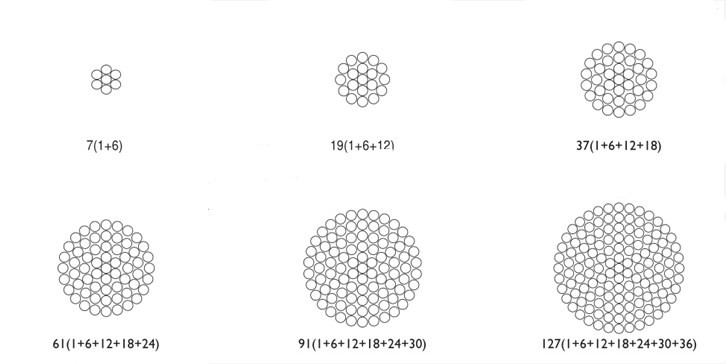

Code Name	Area Actual	Equivalent Copper Area	Stranding	Overall Diameter	Weight	Rated Strength	Maximum DC Resistance at 20℃
Code Name	mm2	mm2	No/mm	mm	kg/km	kN	Ω /km
16	18.6	9.8	7/1.84	5.52	50.8	6.04	1.7896
25	29	15.2	7/2.30	6.9	79.5	9.44	1.1453
40	46.5	24.4	7/2.91	8.73	127.1	15.1	0.7158
63	73.2	38.4	7/3.65	10.95	200.2	23.06	0.4545
100	116	61	19/2.79	14	319.3	37.76	0.2877
125	145	76	19/3.12	15.6	399.2	47.2	0.2302
160	186	98	19/3.53	17.7	511	58.56	0.1798
200	232	122	19/3.95	19.8	638.7	73.2	0.1439
250	290	152	19/4.41	22.1	798.4	91.5	0.1151
315	366	192	37/3.55	24.9	1008.4	115.29	0.0916
400	465	244	37/4.00	28	1280.5	146.4	0.0721
450	523	275	37/4.24	29.7	1440.5	164.7	0.0641
500	581	305	37/4.47	31.3	1600.6	183	0.0577
560	651	342	61/3.69	33.2	1795.3	204.96	0.0516
630	732	384	61/3.91	35.2	2019.8	230.58	0.0458
710	825	433	61/4.15	37.4	2276.2	259.86	0.0407
800	930	488	61/4.40	39.6	2564.8	292.8	0.0361
900	1046	549	91/3.83	42.1	2888.3	329.4	0.0321
1000	1162	610	91/4.03	44.3	3209.3	366	0.0289
1120	1301	683	91/4.27	47	3594.5	409.92	0.0258
