AAC-All Aluminum Stranded Conductor AS/NZS 1531

Name: AAC-All Aluminum Stranded Conductor AS/NZS 1531
SKU: 0

AAC AS/NZS 1531

Shape of conductor: circular and sectional

Material: All aluminum conductor

Insulation: N/A

Standard: AS 1531

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

AAC-All Aluminum Conductor AS/NZS 1531 Overview

The stranded All Aluminium Conductor (AAC) are made up of concentric-lay-stranded aluminum wires only.The conductor may be made up of 7, 19, 37, 61 or more wires in 1, 2, 3, 4 or more layers around a central wire. Each successive layer shall have six more wires than the layer immediately beneath. For a gien cross-sectional area, the conductor becomes more flexible as the number of wires is increased (with a corresponding decrease in size of each wire).

Standrad :

Standard sizes to AS/NZS 1531

Construction :

AAC-All Aluminum Conductor AS/NZS 1531 Construction:

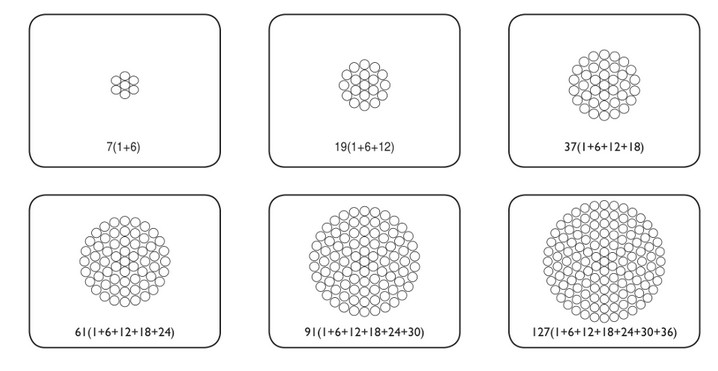

When All Aluminium Conductors are to be used in overhead lines, full hard drawn temper wires are used. The illustration below show some typical stranding patterns.

Physical characteristics :

AAC-All Aluminum Conductor AS/NZS 1531 Parameter

Product code	Strand/wire diameter No/mm	Nominal C.S.A. mm2	Nominal O.D. mm	Approximate Mass kg/km	Calculated minimum breaking load kN	Calculated final modulus of elasticity GPa	Coefficient of linear expansion /°C x 10-6
LEO	7/2.50	34.4	7.5	94.3	5.7	65	23
LEONIDS	7/2.75	41.6	8.3	113	6.7	65	23
LIBRA	7/3.00	49.5	9.0	135	7.9	65	23
MARS	7/3.75	77.3	11.3	212	11.8	65	23
MECURY	7/4.50	111	13.5	304	16.9	65	23
MOON	7/4.75	124	14.3	339	18.9	65	23
NEPTUNE	19/3.25	158	16.3	433	24.7	65	23
ORION	19/3.50	183	17.5	503	28.7	65	23
PLUTO	19/3.75	210	18.8	576	31.9	65	23
SATURN	37/3.00	262	21.0	721	42.2	64	23
SIRUS	37/3.25	307	22.8	845	48.2	64	23
TAURUS	19/4.75	337	23.8	924	51.3	65	23
TRITON	37/3.75	409	26.3	1120	62.1	64	23
TROJANS	61/3.00	431	27.0	1192	66.0	64	23
URANUS	61/3.25	506	29.3	1400	75.2	64	23
URSULA	61/3.50	587	31.5	1620	87.3	64	23
VENUS	61/3.75	674	33.8	1860	97.2	64	23
