All Aluminum Stranded Conductor BS 215 Part 1 Application

Name: AAC-All Aluminum Stranded Conductor BS 215 Part1
SKU: 0

AAC conductor is also called aluminium stranded conductor.This British Standard applies to aluminium stranded conductors for overhead power transmission.Aluminium wires used in the construction of the conductor is material GIE in the H9 condition as specified in BS 26273. These conductors can be used for a variety of voltages such as low, medium and high voltage. AAC is now also widely used in urban areas where short spans and high electrical conductivity are required.

STANDARD :

All Aluminum Stranded Conductor BS 215 Part 1 Standard

According to BS 215 Part 1:1970, Aluminium conductors and aluminium conductors, steel reinforced for overhead power transmission. Part 1: Aluminium stranded conductors

Construction :

All Aluminum Stranded Conductor BS 215 Part 1 Construction

Stranded conductor

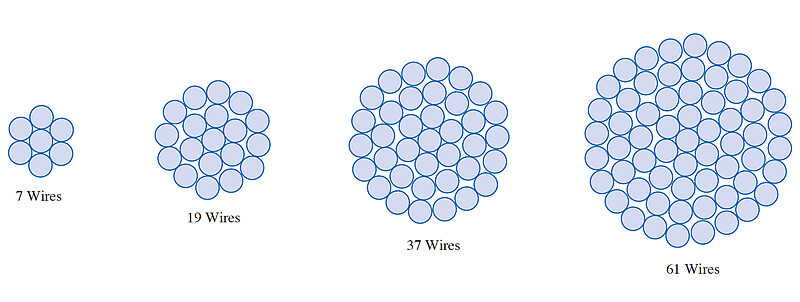

a conductor consisting of seven or more aluminium wires of the same nominal diameter twisted together in concentric layers. When the conductor consists of more than one layer, successive layers are twisted in opposite directions

Diameter
the mean of two measurements at right angles taken at the same cross section direction of lay the direction of lay is defined as right-hand or left-hand. With right-hand lay, the wires conform to the direction of the central part of the letter Z when the conductor is held vertically. With left-hand lay, the wires conform to the direction of the central part of the letter S when the conductor is held vertically

lay ratio
the ratio of the axial length of a complete turn of the helix formed by an individual wire in a stranded conductor to the external diameter of the helix For other definitions reference should be made to BS 2052).

PARAMETER :

CODE	NOMINAL AREA		STRANDING	OVERALL DIAMETER	WEIGHT	RATED STRENGTH	ELECTRICAL RESISTANCE	CURRENT RATING*
CODE	NOMINAL	TEORICAL	STRANDING	OVERALL DIAMETER	WEIGHT	RATED STRENGTH	ELECTRICAL RESISTANCE	CURRENT RATING*
	MM²	MM²	NO.×MM	MM	KG/KM	KN	Ω/KM	A
Midge	22	23.33	7/2.06	6.18	64	3.99	1.227	106
Gnat	25	26.8	7/2.21	6.6	73.8	4.83	1.0643	122
Mosquito	35	37	7/2.59	7.8	102.1	6.27	0.7749	141
Ladybird	40	42.8	7/2.79	8.4	117.9	7.28	0.6678	157
Ant	50	52.83	7/3.1	9.3	145	8.28	0.5419	175
Fly	60	63.55	7/3.4	10.2	174	9.9	0.4505	196
Wasp	100	106	7/4.39	13.17	290	16	0.2702	268
Hornet	150	157.6	19/3.25	16.25	434	25.7	0.1825	342
Charfer	200	213.2	19/3.78	18.9	587	35.4	0.1349	412
Cockroach	250	265.7	19/4.22	21.1	731	40.4	0.1083	471
Butterfly	300	322.7	19/4.65	23.25	888	48.75	0.08916	530
Centipede	400	415.2	37/3.78	26.46	1145	63.1	0.06944	616
Maybug	475	486,1	37/4,09	28,6	1342	74.01	0,05931	740
Scorpion	500	529,8	37/4,27	29,9	1460	79.98	0,05441	887
Cicada	600	628,3	37/4,65	32,6	1733	94.95	0,04588	1056

Note: *The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
