All Aluminum Conductor AAC DIN 48201 Part 5

Aluminum Conductor AAC DIN 48201 Part 5

Shape of conductor: circular and sectional

Sectional area: 16 - 1000mm2

Insulation: N/A

Standard: DIN 48201

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

All Aluminum Conductor AAC DIN 48201

AAC conductor is also known as aluminum stranded conductor which are used in urban areas where spans are usually short but high conductivity is required and are in common use on overhead lines for in low, medium and high voltage. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas.Although aluminium-to-copper connections can be made, it is better to use aluminium conductors for service connections, as various forms of covered cable are available for this purpose STANDARD :

All Aluminum Conductor AAC DIN 48201

German DIN 48201 Part 5 Standard All Aluminum Conductor (AAC) Cables bare
CONSTRUCTION :

All Aluminum Conductor AAC DIN 48201

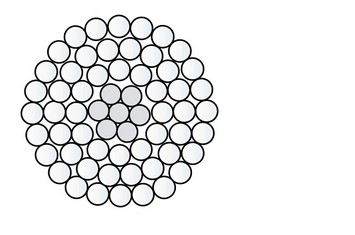

Concentric lay stranded Aluminium Conductor ( AAC) is manufactured from electrolytically refined aluminium with a minimum purity of 99.7%. and made up of one or more strands of hard drawn 1350 aluminum alloy.

Conductor: Aluminum 1350-H-19 wiresPARAMETER :

All Aluminum Conductor AAC DIN 48201 Part 5

Code	Cross. Section (mm2)	Cu Equiv. (mm2)	Stranding & Wire ø (Nºx mm)	Overall ø (mm)	Weight (kg/km)	Rated strength (KN)	Electr.resist. at 20ºC (ohm/km)
Code	Cross. Section (mm2)	Cu Equiv. (mm2)	Stranding & Wire ø (Nºx mm)	Overall ø (mm)	Weight (kg/km)	Rated strength (KN)	Electr.resist. at 20ºC (ohm/km)
16	15.89	10	7x1.70	5.1	43	2.84	1.8018
25	24.25	15.2	7x2.10	6.3	66	4.17	1.1808
35	34.36	21.6	7x2.50	7.5	94	5.78	0.8332
50	49.48	31.1	7x3.00	9	135	7.94	0.5786
50	49.35	30.4	19x1.80	9	133	8.45	0.595
70	65.81	41.4	19x2.10	10.5	181	11.32	0.4371
95	93.27	58.7	19x2.50	12.5	256	15.68	0.3084
120	116.99	73.6	19x2.80	14	322	18.78	0.2459
150	147.11	92.5	37x2.25	15.8	406	25.3	0.196
185	181.62	114.2	37x2.50	17.5	500	30.54	0.1587
240	242.54	152.5	61x2.25	20.3	670	39.51	0.1191
300	299.43	188	61x2.50	22.5	827	47.7	0.0965
400	400.14	252	61x2.89	26	1.104	60.86	0.07221
500	499.83	314	61x3.23	29.1	1.379	74.67	0.05781
625	626.2	394	91x2.96	32.6	1.732	95.25	0.04625
800	802.09	504	91x3.35	36.9	2.218	118.39	0.03611
1000	999.71	629	91x3.74	41.1	2.767	145.76	0.02897
