AAC Conductor 800mm2 Application

Name: IEC 61089 All Aluminum Stranded Conductor AAC 800mm2
SKU: 0

AAC conductor is also known as aluminum stranded conductor which areusedinurbanareas where spans are usually short but high conductivity is required andareincommonuse on overhead lines for in low, medium and high voltage. The excellent corrosionresistance of aluminium has made AAC a conductor of choice in coastal areas.Althoughaluminium-to-copper connections can be made, it is better to use aluminiumconductorsfor service connections, as various forms of covered cable are availablefor thispurpose.

STANDARD :

AAC Conductor 800mm2 Standard

Basic design to IEC 61089-Round wire concentric lay overhead electrical stranded conductors

CONSTRUCTION :

AAC Conductor 800mm2 Construction

Concentric lay stranded Aluminium Conductor ( AAC) is manufactured from electrolytically refined aluminium with a minimum purity of 99.7%. and made up of one or more strands of hard drawn 1350 aluminum alloy

PARAMETER :

Nominal Area (mm2):	800

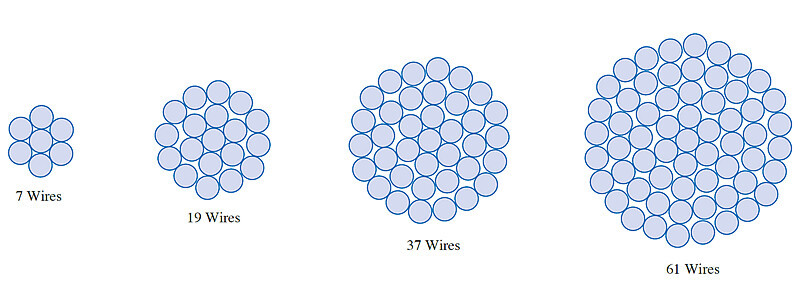

Stranding:	61
Diameter Individual Wire Aluminum (mm):	4.09
Overall Diameter (O.D.) (mm):	36.81
Weight Per 1000 Meters (kg):	2207.4
Rated Strength (KN):	128
Resistance DC 20°C Per 1000 Meters (Ω):	0.0361
Allowable Ampacity (Amps):	905
