Cable H07Z-R Application

Name: H07Z-R Halogen Free Flame Retardant Building Wire
SKU: 0

In pipes or ducts and internal wiring of appliances with maximum operating temperatures of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.

Cable H07Z-R Standards:

HD 22.9 S2, VDE-0282 Part-9, BS 7211, IEC 60754-2, EN 50267, VDE 0482-267,
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

CONSTRUCTION :

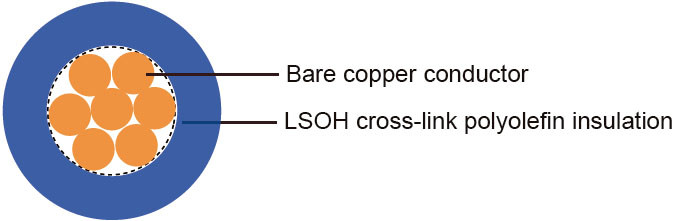

Cable H07Z-R Construction

- Fine bare copper strands
- Strands to VDE-0295 Class-2, IEC 60228
- Insulation
- Cross-link polyolefin EI5 core insulation
- LSOH- low smoke, zero halogen，Type EI5 thermosetting insulation according to BS EN 50363-5.

TECHNICAL :

Cable H07Z-R Technical Data

- Working voltage: 450/750
- Test voltage: 2500 volts
- Flexing bending radius: 8 x Ø
- Static bending radius: 8 x Ø
- Flexing temperature: -15º C to +90º C
- Static temperature: -40º C to +90º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 10 M x km
- Smoke density acc. to EN 50268 / IEC 61034
- Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
- Flame test: flame-retardant acc. to EN 50265-2-1, IEC 60332.1

PARAMETER :

Cable H07Z-R Parameter

No. of Cores x Nominal Cross-Sectional Area	Nominal Thickness of Insulation	Nominal Overall Diameter	Nominal Copper Weight	Nominal Weight
# x mm²	mm	mm	kg/km	kg/km
1 x 1.5	0.7	3	14.4	21
1 x 2.5	0.8	3.6	24	33
1 x 4	0.8	4.1	39	49
1 x 6	0.8	4.7	58	71
1 x 10	1	6	96	114
1 x 16	1	6.8	154	172
1 x 25	1.2	8.4	240	265
1 x 35	1.2	9.3	336	360
1 x 50	1.4	10.9	480	487
1 x 70	1,4	12.6	672	683
1 x 95	1,6	14.7	912	946
1 x 120	1,6	16	1152	1174
1 x 150	1,8	17.9	1440	1448
1 x 185	2,0	20	1776	1820
1 x 240	2,2	22.7	2304	2371
