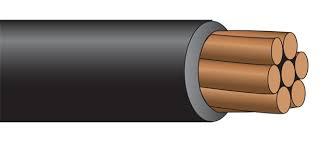

Copper Core PVC Insulation House Wiring Electrical Wire 450/750V

Name: Copper Core PVC Insulation House Wiring Electrical Wire 450/750V
SKU: 0

Copper PVC Electrical Wire 450/750V

Conductor : Copper Conductor ( Solid , Stranded )

Insulation : PVC

Voltage : 450/750V

Number of cores: Single Core

Package : 100 Meters One Roll with Export Wooden Case & Pallet

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

Copper Core PVC Insulation House Wiring Electrical Wire Application

PVC insulated wires is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).

Copper Core PVC Insulation House Wiring Electrical Wire Standards:

The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.CONSTRUCTION :

Copper Core PVC Insulation House Wiring Electrical Wire Construction

1) Conductor: Copper or aluminium, Solid
2) Insulation: PVC
3) Number of cores: Single core
4) Other special characteristics: Design and manufacture according to the requirements of customers.

Conductor	Annealed copper wire (Solid, Stranded Circular)
Insulation	PVC
Available Color	Black, White, Red, Green, Yellow, Blue, Green-Yellow or as require

TECHNICAL :

Copper Core PVC Insulation House Wiring Electrical Wire Technical Data

1) Rated voltage: 450/750V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm. PARAMETER :

Copper Core PVC Insulation House Wiring Electrical Wire Parameter

Cross Sectional Area of Conductor (mm2)	Insulation Thickness (mm)	Lower Limit (mm)	Upper Limit (mm)	Max. Conductor Resistance at 20°C	Min. Insulation Resistance at 70°C	Approx Weight Per 100 Meter (kg)
1.5	0.7	2.7	3.3	12.1	0.01	2.1
2.5	0.8	3.3	4	7.41	0.009	3.3
4	0.8	3.8	4.6	4.61	0.0077	4.9
6	0.8	4.3	5.2	3.08	0.0065	6.9
10	1	5.6	6.7	1.83	0.0065	11.6
16	1	5.6	6.7	1.83	0.0065	17.9
25	1.2	8.1	9.7	0.727	0.005	28
35	1.2	9	10.9	0.524	0.0043	37.5
50	1.4	10.6	12.8	0.387	0.0043	50.5
70	1.4	12.1	14.6	0.268	0.0035	71.5
95	1.6	14.1	17.1	0.193	0.0035	98.5
120	1.6	15.6	18.8	0.153	0.0032	122
150	1.8	17.3	20.9	0.124	0.0032	150.5
185	2	19.3	23.3	0.0991	0.0032	188.5
240	2.2	22	26.6	0.0754	0.0032	246
300	2.4	24.5	29.6	0.0601	0.003	307.5
400	2.6	27.5	33.2	0.047	0.0028	391.5
500	2.8	30.5	37	0.0366	0.0028	499.2
630	2.8	34	41	0.0283	0.0025	634.3
