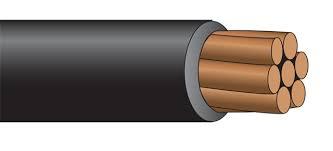

Copper Cable THW-2-LS/THHW-LS 600V 90°

Name: Copper Cable THW-2-LS/THHW-LS 600V 90°
SKU: 0

THW-2-LS/THHW LS 600V 90°

Conductor Copper Conductor ( Solid , Stranded )

Insulation PVC

Voltage 600V

Number of cores Single Core

Package 100 Meters One Roll with Export Wooden Case & Pallet

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

Wire Application

THW-2-LS/THHW-LS cables are used products general for low voltage distribution systems and lighting, in public and residential buildings, industrial buildings, recreational centres and commercial.
For its excellent non-proliferation characteristics fire, low smoke and low gas content acid, is recommended in meeting places such as theaters, offices, hospitals, etc.
STANDARD :

Wire Standard

NOM-001-SEDE
Electrical installations (use)
NOM-063-SCFI
Electrical products – Conductors – Safety requirements
NMX-J-010-ANCE
Thermoplastic insulated conductors for installations up to 600 V
NMX-J-012-ANCE
Copper conductors with concentric wiring for electrical uses
Directiva RoHS
European Community Directive for the control of the use of hazardous substancessize
CONSTRUCTION :

The conductors type THW can be solid or stranded and they are built with soft temper copper, they are also insulated with an uniform layer of Chloride of Polyvinyl (PVC) thermoplastic material resistant to the moisture and the heat. They can be supplied in varied colors according to their size and with different packaging.

Conductor	Annealed copper wire (Solid, Stranded Circular)
Insulation	PVC
Available Color	Black, White, Red, Green, Yellow, Blue, Green-Yellow or as require

FEATURES :Maximum operating voltage of THW-2-LS/THHW-LS 600V 90° BLACK COLOR: 600 V
Maximum operating temperature in the conductor:
– 90 °C in dry, wet or wet environment
105°C in an emergency
– 150 °C in short circuit
– 60 °C in the presence of oil PARAMETER :

Copper cable type THW-2-LS/THHW-LS 600V 90℃
Size	Cross Section Area	Number of Strands	Nominal Insulation Thickness	Approx Overall Diameter	Approx Weight	Current carrying capacity1(A)
Size	Cross Section Area	Number of Strands	Nominal Insulation Thickness	Approx Overall Diameter	Approx Weight	Canalization 2			Outdoors3
AWG/Kcmil	mm2	No	mm	mm	kg/100m	60℃	75℃	90℃	60℃	75℃	90℃
14	2.08	19	0.76	3.4	3	15	20	25	-	-	-
12	3.31	19	0.76	3.9	5	20	25	30	-	-	-
10	5.26	19	0.76	4.5	7	30	35	40	-	-	-
8	8.37	19	1.14	5.9	11	40	50	55	-	-	-
6	13.3	19	1.52	7.6	17	55	65	75	-	-	-
4	21.2	19	1.52	8.8	25	70	85	95	105	125	140
2	33.6	19	1.52	10.3	38	95	115	123	140	170	190
1/0	53.5	19	2.03	13.2	60	125	150	170	195	230	260
2/0	67.4	19	2.03	14.3	74	145	175	195	225	265	300
3/0	85	19	2.03	15.6	91	165	200	225	260	310	350
4/0	107	19	2.03	17	113	195	230	260	300	360	405
250	127	37	2.41	19	135	215	255	290	340	405	455
300	152	37	2.41	20.3	159	240	285	320	375	445	500
350	177	37	2.41	21.6	182	260	310	350	420	505	570
400	203	37	2.41	22.7	208	280	335	380	455	545	615
500	253	37	2.41	24.8	255	320	380	430	515	620	700
600	304	61	2.79	27.6	307	350	420	475	575	690	780
750	380	61	2.79	30.2	384	400	475	535	655	785	885
1000	507	61	2.79	34	504	455	545	615	780	935	1055

Note: Dimensions and weights are subject to manufacturing tolerances.
1. Amplitude.
2. Based on Table 310-15(b)(16) of NOM-001-SEDE for an ambient temperature of 30°C.
3. Based on Table 310-15(b)(17) of NOM-001-SEDE for an ambient temperature of 30°C.
