THW Wire Cable 8AWG 10AWG 12AWG 14AWG 600V

Name: THW Wire Cable 8AWG 10AWG 12AWG 14AWG 600V
SKU: 0

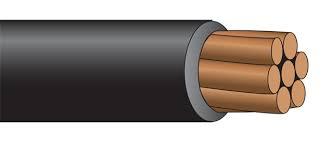

THW Wire Cable 8AWG 10AWG 12AWG 14AWG 600V

Name : THW Wire

Conductor : Copper Conductor ( Solid , Stranded )

Insulation : PVC

Voltage : 600V

Number of cores: Single Core

Package : 100 Meters One Roll with Export Wooden Case & Pallet

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

THW Wire Cable Application

THW is an acronym that stands for Thermoplastic Heat and Water-resistant Wire. Currently, the National Fire Protection Association is the governing standard for any type of THW Cable or wire.The copper conductors type THW are used for power and lighting circuits in industrial, commercial and residential facilities where it is required of more security, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places; its maximum temperature of operation is of 75 ºC and its voltage of service for all the applications it is 600 V.
STANDARD :

THW Wire Cable Standards:

• ASTM B-3: Copper Annealed or Soft Wires.
• ASTM B-8: Copper Stranded Conductors in Concentric Layers, Hard, Semi-hard or Soft.
• UL - 83: Wires and Cables Insulated with Thermoplastic Material.
• NEMA WC-5: Wires and Cables Insulated with Thermoplastic Material (ICEA S-61-402) for Transmission and Distribution of Electric Power.CONSTRUCTION :The conductors type THW can be solid or stranded and they are built with soft temper copper, they are also insulated with an uniform layer of Chloride of Polyvinyl (PVC) thermoplastic material resistant to the moisture and the heat. They can be supplied in varied colors according to their size and with different packaging.

Conductor	Annealed copper wire (Solid, Stranded Circular)
Insulation	PVC
Available Color	Black, White, Red, Green, Yellow, Blue, Green-Yellow or as require

PARAMETER :

THW WIRE PARAMETER

Size	No. of Strands	Nominal Thickness of PVC Insulation		Approximate Overall Diameter		Approximate Weight of Cable
AWG or MCM	No. of Strands	mm	mil	mm	inch	kg/km	lbs/ 1000ft
14	solid	0.76	30	4.30	0.169	33	22.2
12	solid	0.76	30	4.8	0.189	47	31.6
10	solid	0.76	30	5.4	0.213	68	45.7
8	solid	1.14	45	6.1	0.240	100	67.2
6	solid	1.52	60	7	0.276	151	101.4
14	7	0.76	30	4.50	0.177	36	24.2
12	7	0.76	30	5.10	0.201	50	33.6
10	7	0.76	30	5.80	0.228	73	49.0
8	7	1.14	45	7.40	0.291	118	79.3
6	7	1.52	60	8.50	0.335	174	116.9
4	7	1.52	60	9.80	0.386	256	172.0
2	7	1.52	60	11.30	0.445	391	262.7
1	7	2.03	80	13.50	0.531	505	339.3
1/0	19	2.03	80	14.6	0.575	622	417.9
2/0	19	2.03	80	15.8	0.622	767	515.3
3/0	19	2.03	80	17.2	0.677	950	638.2
4/0	19	2.03	80	18.8	0.740	1179	792.1
250	37	2.41	95	20.9	0.823	1404	943.2
300	37	2.41	95	22.4	0.882	1664	1117.9
350	37	2.41	95	23.8	0.937	1923	1291.9
400	37	2.41	95	25	0.984	2180	1464.5
500	37	2.41	95	27.4	1.079	2694	1809.8
600	61	2.79	110	30.4	1.197	3241	2177.3
700	61	2.79	110	32.3	1.272	3751	2519.9
750	61	2.79	110	33.2	1.307	4007	2691.9
800	61	2.79	110	34.1	1.343	4260	2861.9
900	61	2.79	110	35.8	1.409	4769	3203.8
1000	61	2.79	110	37.4	1.472	5265	3537.1
