XLPE 4 Cores Copper Cable Application

Name: 4 Cores XLPE Insulated PVC Sheathed Copper Cable Unarmoured 0.6/1kV
SKU: 0

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

STANDARDS :

XLPE 4 Cores Copper Cable Standards:

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

CONSTRUCTION :

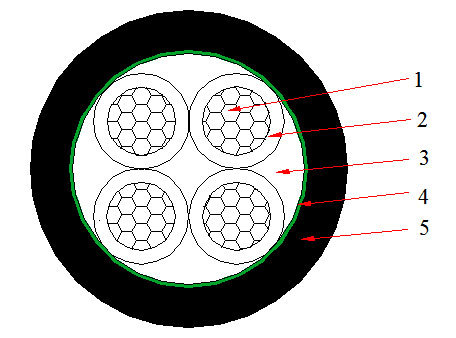

XLPE 4 Cores Copper Cable Construction

1. Conductor: Copper , Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC

PARAMETER :

XLPE 4 Core Copper Cable Parameter

0.6/1kV-4 core copper conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
4X1.5	0.7	1.8	12.6	160	12.1	21	30
4X2.5	0.7	1.8	13.6	210	7.41	28	39
4X4	0.7	1.8	14.8	280	4.61	37	51
4X6	0.7	1.8	16.0	380	3.08	47	64
4X10	0.7	1.8	18.6	530	1.83	65	86
4X16	0.7	1.8	21.0	800	1.15	84	110
4X25	0.9	1.8	24.9	1240	0.727	110	140
4X35	0.9	1.8	28.3	1600	0.524	135	170
4X50	1.0	1.8	28.4	2000	0.387	170	205
4X70	1.1	2.0	33.1	2800	0.268	215	250
4X95	1.1	2.1	37.1	4000	0.193	265	300
4X120	1.2	2.2	40.8	5000	0.153	310	345
4X150	1.4	2.4	45.2	6100	0.124	350	385
4X185	1.6	2.6	52.1	7600	0.0991	405	435
4X240	1.7	2.8	57.8	9500	0.0754	480	500
4X300	1.8	3.0	63.5	12000	0.0601	555	565
4X400	2.0	3.3	70.9	16000	0.0470	640	640
