XLPE Single Core 630mm2 Copper Cable Application

Name: XLPE Insulated Single Core 630mm2 Copper Cable 1x630mm2
SKU: 0

Single core XLPE insulated copper cable/wire features a plain annealed solid or strands circular copper conductor with XLPE insulation and PVC sheath. It is also referred to XLPE cable or CU/XLPE/PVC Cable 0.6/1kV.

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

STANDARDS :

XLPE Single Core 630mm2 Copper Cable Standard

Design Specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN 60332-1

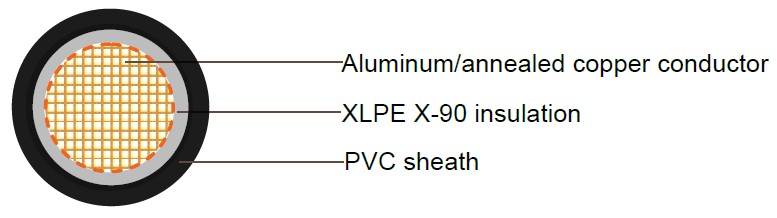

CONSTRUCTION :

XLPE Single Core 630mm2 Copper Cable Construction

Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour: Natural
Outer sheath: Polyvinyl Chloride (PVC) Compound
Outer sheath colour: Black

PARAMETER :

XLPE Single Core 630mm2 Copper Cable Parameter

Cable Type:	CU/XLPE/PVC
Operating voltage, U0 / U (V):	600/1000
Number of Cores:	Single
Nominal Area (mm2):	630
Conductor Stranding:	61
Insulation Thickness (mm):	2.4
Sheath Thickness (mm):	2.2
Cable Overall Diameter (O.D.) (mm):	39.1
Cable Weight Per 1000 Meters (kg):	6100
Resistance DC 20°C Per 1000 Meters (Ω):	0.0283
Allowable Ampacity in Air (Amps):	960
Allowable Ampacity in Ground (Amps):	865
Test Voltage:	3.5kV for 5 minutes
Operating Temperature (°C) :	-15 to +90
Final Short Circuit Temperature (°C):	250
