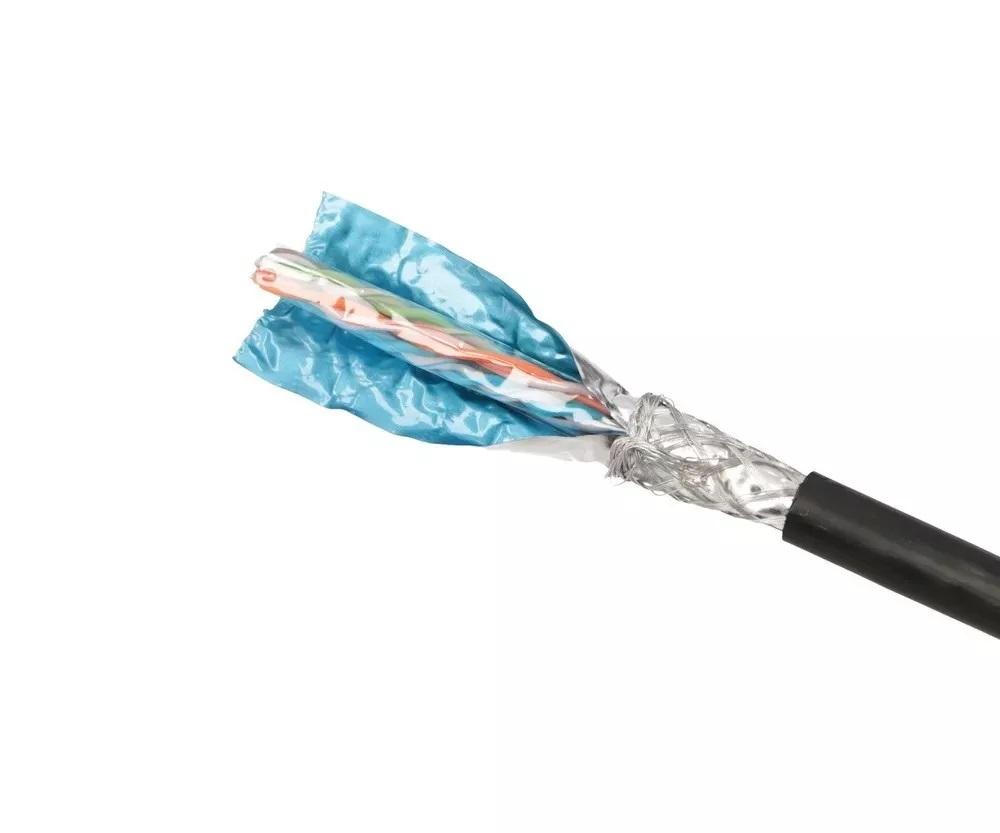

Network Cable

Model: Indoor FTP Cat6A
Conductor Size: 0.57mm±0.02mm/0.55mm±0.02mm/0.53mm±0.02mm/23AWG/24AWG (Customized)
Conductor Material: BC
No.of Conductor: 4 Pairs/8 Cores
Phone: +8613204662621
WhatsApp: +8613204662621
E-mail: yongbencable@163.com
Contact Us

- // PRODUCT DETAILS // -

Product Description

Model

Indoor FTP Cat6A

Conductor Size

0.57mm±0.02mm/0.55mm±0.02mm/0.53mm±0.02mm23AWG, 24AWG (Customized)

Conductor Material

BC

No.of Conductor

4 Pairs / 8 Cores

Insulation Material

FPE

Insulation Thickness

0.3±0.02mm

Insulation Diameter

1.0mm(±0.02mm)

Jacket Thickness

0.92-0.95mm

Indoor

Single jacket

Jacket Material

PVC(LSZH,PVC+PE,Optional)

Jacket Color

Grey, Blue, White, Black (Customized)

Shield

Four Foil Shielded Twisted Pairs+AL FOIL

Length

1000ft/box,305m/box,100m/box(Customized)

Printing Words on Cable

Customized

Certificates

CE, RoHS,Eca-CPR,ISO9001

Outer jacket thickness

7.5mm±0.2mm

Operating Temperation

-40ºC- +75ºC


Technical Data

Model

Name

AWG

Conductor (mm)

Nominal od

(mm)

Ω/km Conductor resistance

Package

Color

610

CAT6 SFTP

23

1/0.56

7.20

74.30

305m/box

Optional

611

CAT6 SFTP

23

1/0.574

7.60

70.08

305m/box

Optional

612

CAT6 SFTP

23

1/0.58

7.60

68.5

305m/box

Optional
