ACSR Dog Conductor 100mm2 Application:

Name: ACSR Dog Conductor 100mm2
SKU: 0

ACSR – The full name: Aluminum Conductor Steel Reinforced. Aluminum Conductor Steel Reinforced is used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

FEATURES :

ACSR Dog Conductor 100mm2 Features:

With simple structure, the aluminum conductor steel reinforced is easy to set up and maintain, with low cost and high transmission capacity. It is advantageous for this ACSR to be put up across a valley or river or under other various special geographic conditions. The ACSR has advantages of sound electrical conductivity, high mechanical strength, high tensile strength, etc, and the pole distance can be lengthened. It is used for power transmission lines with various voltage levels and plays an important role in the electricity transmission field.

CONSTRUCTION :

ACSR Dog Conductor 100mm2 Construction:

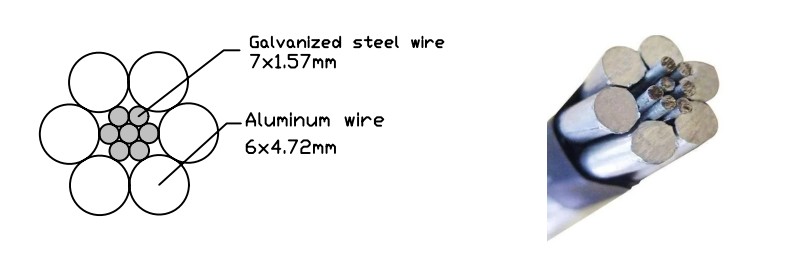

A “DOG” conductor is a ACSR (aluminum conductor steel reinforced) cable with nominal aluminum cross-sectional area of 100 mm². It has 6 aluminum strands of 4.72 mm diameter and 7 steel strands of 1.57 mm diameter.ACSR dog conductor has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.

PARAMETER :

ACSR Dog Conductor 100mm2 Parameter

Code name		acsr dog conductor
Nominal aluminum area mm 2		100
Stranding structure	Al. No.	6
	Al. Dia.	4.72
	St. No.	7
	St. Dia	1.57
Sectional area of aluminum	mm 2	105
Total sectional area	mm 2	118.5
Overall diameter	mm	14.15
Total	kg/km	394
Calculated breaking load	kN	32.7
Calculate D.C resistance at 20 ℃	Ω/km	0.2733
Current Rating	A	278
