AAAC-All Aluminum Alloy Conductors NFC 34 125

AAAC-NFC 34 125

Shape of conductor: Stranded circular

Sectional area: 22 -1600mm2

Insulation: N/A

Standard: AAAC-NFC 34 125
Phone: +8613204662621
WhatsApp: +8613204662621
E-mail: yongbencable@163.com
Contact Us

- // PRODUCT DETAILS // -


AAAC-All Aluminum Alloy Conductors NFC 34 125 Application

This cable is mainly used in both primary and secondary overhead transmission and distribution applications. Given that Aluminum is recyclable, it can be put to other uses once worn out. The cable can also be used for grounding in electrical constructions.


Standards:

  • NFC 34 125 Standard

Conductors:

AAAC conductor is a concentric lay stranded conductor consisting of Aluminum Alloy 6201-T81 wires, similar in appearance to a 1350 grade aluminum conductor.

Notes: DC resistance at 20°C of the 6201-T81 alloy has a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.

Standards: AAAC conductors meet or exceed the following:

  • NFC 34 125, EN 50182
  • Requirements of the National Electrical Code

Conductor's workability

All Aluminum Alloy Conductor consist of 6201-T81 Aluminum Alloy wires, which largely looks like the 1350 grade Aluminum conductor. It offers good electrical conductivity. DC resistance at 20 degrees Celsius for the 6201-T81 series has a greater abrasive resistance than 1350-H19 Aluminum conductor series. The conductor is also resistant to moisture and weather. It is lightweight and flexible hence requires less effort to move around during installation.

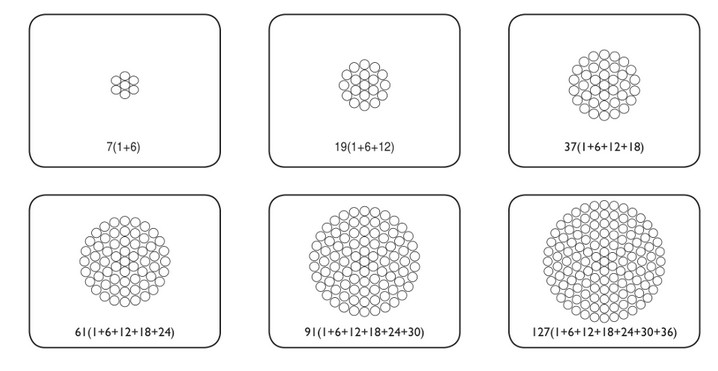

Construction :
7
Parameter :

AAAC-All Aluminum Alloy Conductors NFC 34 125

namenameactual sectionno. of wirewire diameter

conducto diameter

conductor weight appr.calc. breaking forcecalc.conductor resistance
NF-C 34125EN 50182mm²
mmmmkg/kmkNOhm/km
ASTER 2222-AL422,072,006,0060,07,151,498
ASTER 34,434-AL434,472,507,5093,511,170,959
ASTER 54,655-AL454,673,159,45148,917,730,604
ASTER 75,576-AL475,5192,2511,3207,424,550,438
ASTER 117117-AL4117,0192,8014,0321,238,020,283
ASTER 148148-AL4148,1193,1515,8406,648,120,223
ASTER 181,6182-AL4181,6372,5017,5500,359,030,183
ASTER 228228-AL4227,8372,8019,6627,674,040,146
ASTER 288288-AL4288,3373,1522,1794,393,710,115
ASTER 366366-AL4366,2373,5524,91.008,9115,360,090
ASTER 570570-AL4570,2613,4531,11.576,0185,330,058
ASTER 851851-AL4850,7913,4538,02.360,7276,470,039
ASTER 11441144-AL41.143,5914,0044,03.173,4360,220,029
ASTER 16001600-AL41.595,91274,0052,04.427,5502,720,021
