AAAC-All Aluminum Alloy Conductors IS 398 PART 4

Name: AAAC-All Aluminum Alloy Conductors IS 398 PART 4
SKU: 0

AAAC-IS 398 PART 4

Shape of conductor: Stranded circular

Sectional area: 15 - 767mm2

Insulation: N/A

Standard: AAAC-IS 398 PART 4

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

AAAC-All Aluminum Alloy Conductors IS 398 PART 4

Used as bare overhead conductor for primary and secondary distribution. Designed for utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics.
(1)AAAC conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction.

(2)The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power loss in overhead distribution and transmission lines,when replacing the aluminum conductor steel reinforced , the AAAC can save 5-8% of the construction cost.

(3)AAAC referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to replace the conventional ACSR.

Standards:

IS 398 PART 4 Standard

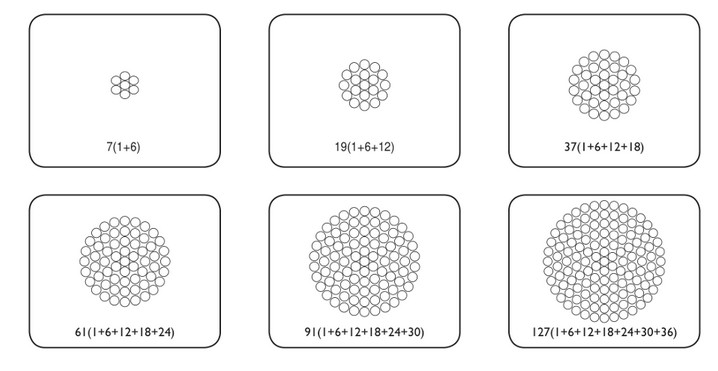

Construction :

PARAMETER :

AAAC-All Aluminum Alloy Conductors IS 398 PART 4

Name ref.	Conductor cross-section (mm2)	Stranding (No./mm)	Nominal overall diameter (mm)	Approximate weight (kg/km)	Current Carrying Capacity at 45ºC (Amp)
Mole	15	3/2.50	5.38	40.15	65
Squirrel	22	7/2.00	6.00	60.16	105
Weasel	34	7/2.50	7.50	94.00	155
Rabbit	55	7/3.15	9.45	149.20	210
Raccoon	80	7/3.81	11.43	218.26	290
Dog	100	7/4.26	12.78	272.86	325
Dog-up	125	19/2.89	14.45	342.51	360
Coyote	148	19/3.15	15.75	406.91	400
Wolf	173	19/3.40	17.0	474.02	460
Wolf-up	200	19/3.66	18.3	549.40	480
Panther	232	19/3.94	19.75	636.63	520
Panther-up1	288	37/3.15	22.05	794.05	610
Panther-up2	346	37/3.45	24.15	952.56	720
Kundah	400	37/3.71	25.97	1101.63	740
Zebra	465	37/4.00	28.0	1280.50	800
Zebra-up	525	61/3.31	29.79	1448.39	875
Moose	570	61/3.45	31.05	1573.71	900
Morkulla	604	61/3.55	31.95	1666.00	920
Moose-up	642	61/3.66	32.94	1771.36	940
Morkulla-up	695	61/3.81	34.29	1919.13	960
Bersimis	767	61/4.00	36.0	2115.54	1000
