ABC Aluminum Aerial Bundle Cables AS/NZS 3560.1

Name: ABC Aluminum Aerial Bundle Cables AS/NZS 3560.1
SKU: 0

ABC Aluminum Aerial Bundle Cables AS/NZS 3560.1

Name: ABC Cable Aluminum Aerial Bundle Cables AS/NZS 3560.1

Conductor: 1350 Aluminum Conductor

Insulation: XLPE

Voltage: 0.6/1kV

Number of cores: 2-5 cores

Package: Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

Application

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Can be used for fixed installation as overhead power lines up to 1000 V incl.

Strandard

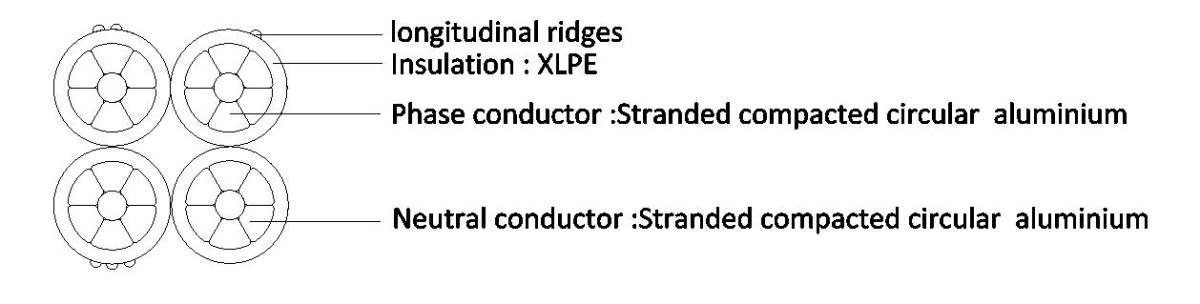

AS/NZS 3560.1 CONSTRUCTION :

Construction

CONDUCTOR (FOR EITHER PHASE, NEUTRAL OR STREET LIGHTING)	The conductors shall be of aluminium 1350 wires and are compacted circular stranded (RM).
INSULATION	XLPE
ASSEMBY	The cores shall be laid up with a left-hand lay.

TECHNICAL :

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	15 × Ø of cable

PARAMETER :

No. of Core & Size	Phase Core				Neutral Core				Complete Cable
	No. & Section Area	No. of Wire	Dia. of Conductor (Approx.)	Insulation Thickness	No. & Section Area	No. of Wire	Dia. of Conductor (Approx.)	Insulation Thickness	Overall Dia. (Approx.)	Weight (Approx.)


mm2	mm2	No.	mm	mm	mm2	No.	mm	mm	mm	kg/km
2x16	1x16	7	4.7	1.3	1x16	7	4.7	1.3	14.6	132
4x16	3x16	7	4.7	1.3	1x16	7	4.7	1.3	17.6	263
2x25	1x25	7	6.0	1.3	1x25	7	6.0	1.3	17.2	189
3x25	2x25	7	6.0	1.3	1x25	7	6.0	1.3	18.5	283
4x25	3x25	7	6.0	1.3	1x25	7	6.0	1.3	20.8	378
2x35	1x35	7	7.0	1.3	1x35	7	7.0	1.3	19.2	249
3x35	2x35	7	7.0	1.3	1x35	7	7.0	1.3	20.7	373
4x35	3x35	7	7.0	1.3	1x35	7	7.0	1.3	23.2	497
2x50	1x50	7	8.1	1.5	1x50	7	8.1	1.5	22.2	334
3x50	2x50	7	8.1	1.5	1x50	7	8.1	1.5	23.9	501
4x50	3x50	7	8.1	1.5	1x50	7	8.1	1.5	26.8	668
4x70	3x70	19	10.0	1.5	1x70	19	10.0	1.5	31.4	933
2x95	1x95	19	11.6	1.7	1x95	19	11.6	1.7	30.0	638
4x95	3x95	19	11.6	1.7	1x95	19	11.6	1.7	36.2	1276
4x120	3x120	19	13.0	1.7	1x120	19	13.0	1.7	39.6	1579
4x150	3x150	19	14.6	1.7	1x150	19	14.6	1.7	43.5	1883
