ABC Aluminum Aerial Bundle Cables DES/LVC-IEC 60502

Name: ABC Aluminum Aerial Bundle Cables DES/LVC-IEC 60502
SKU: 0

ABC Cable Aluminum Aerial Bundle Cables DES/LVC-IEC 60502

Name : ABC Cable Aluminum Aerial Bundle Cables DES/LVC-IEC 60502

Conductor : H68 Aluminium Conductor

Insulation : XLPE

Voltage : 0.6/1kV

Number of cores: 2-5 cores

Package : Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

Application

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Can be used for fixed installation as overhead power lines up to 1000 V incl.

Strandard

DES/LVC/ABC Specification; IEC 60502 CONSTRUCTION :

Construction

CONDUCTOR	H68 aluminium conductor and compacted circular stranded (RM).
INSULATION	XLPE
ASSEMBY	The cores shall be laid up with a left-hand lay.

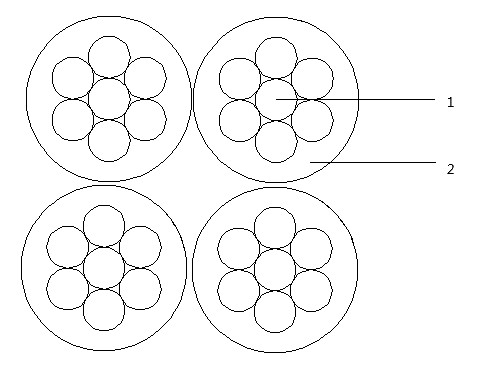

1. CONCUTOR 2. INSULATIONTECHNICAL DATA :

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	15 × Ø of cable

PARAMETER :

Number of Cores x Nominal Cross Section	Min. Breaking Load of Conductor Strand	Current Rating in the Air	Outer Diameter	Total Weight
mm^2	kN	A	mm	kg/km
4x25 RM	3.5	84	21.5	420
4x35 RM	4.9	104	23.9	550
4x120+1x25 RM	16.8	246	43.8	1800
4x185+1x25 RM	25.9	332	50.7	2700
