ABC Cable Aluminum Aerial Bundle Cables HD 626 S1

Name: ABC Aluminum Aerial Bundle Cables HD 626 S1

Conductor: Aluminium conductor

Insulation : XLPE

Voltage : 0.6/1kV

Number of cores: 2-5 cores

Package : Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

Application

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium conductor and insulated with XLPE. Can be used for fixed installation as overhead power lines up to 1000 V incl.

Strandard

HD 626 S1

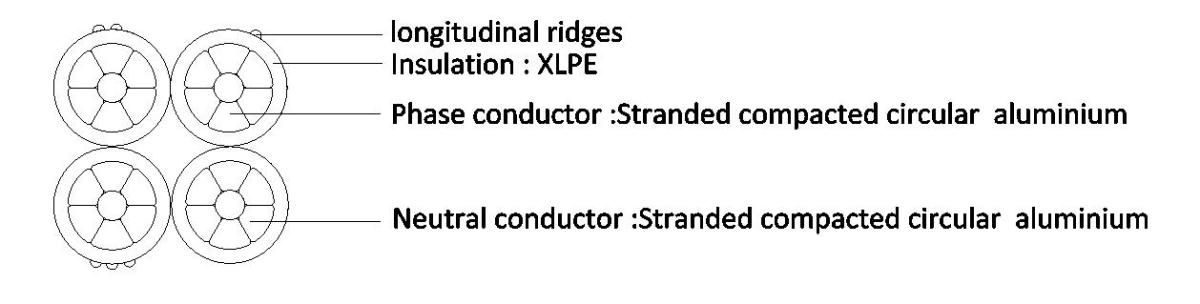

CONSTRUCTION :

Construction

CONDUCTOR	Aluminium conductor, round stranded compressed (RM)
INSULATION	XLPE
ASSEMBY	The cores shall be laid up with a left-hand lay.

TECHNICAL DATA :

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	15 × Ø of cable

PARAMETER :

Number of Cores x Nominal Cross Section	Min. Breaking Load of Conductor Strand	Current Rating in the Air	Outer Diameter	Total Weight
mm^2	kN	A	mm	kg/km
2x 16 RM	1910	2,5	72	147
2x 25 RM	1200	4,0	107	208
2x 35 RM	0,868	5,5	132	277
2x 50 RM	0,641	8,0	165	361
4x 16 RM	1910	2,5	72	286
4x 25 RM	1200	4,0	107	430
4x 35 RM	0,868	5,5	132	553
4x 50 RM	0,641	8,0	165	746
4x 70 RM	0,443	10,7	205	1009
4x 95 RM	0,320	13,7	240	1332
4x 120 RM	0,253	18,6	290	1632
4x 35 + 1x 35 RM	0,868/0,868	5,5/5,5	132/132	694
4x 50 + 1x 25 RM	0,641/1,200	8,0/4,0	165/107	814
4x 50 + 1x 35 RM	0,641/0,868	8,5/5,5	165/132	845
4x 70 + 1x 25 RM	0,443/1,200	10,7/4,0	205/107	1105
4x 70 + 2x 25 RM	0,443/1,200	10,7/4,0	205/107	1217
4x 70 + 1x 35 RM	0,443/0,868	10,7/5,5	205/132	1150
4x 70 + 2x 35 RM	0,443/0,868	10,7/5,5	205/132	1289
4x 95 + 1x 25 RM	0,320/1,200	13,7/4,0	240/107	1438
4x 95 + 1x 35 RM	0,320/0,868	13,7/5,5	240/132	1467
4x 95 + 2x 25 RM	0,320/1,200	13,7/4,0	240/107	1544
