ABC Aluminum Aerial Bundle Cables NFC 33-209

Name: ABC Cable Aluminum Aerial Bundle Cables NFC 33-209

Conductor: Stranded Round Aluminum Conductor

Insulation : XLPE

Voltage : 0.6/1kV

Number of cores: 2-5 cores

Package : Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

Application

Used to supply power,usually from a pole-mounted transformer, to the user's service head where connection to the service entrance.To be used at 600V or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated or 90°C for cross linked.

Standard

Aerial Bundled Conductors are manufactured to National French Standard NFC 33-209. CONSTRUCTION :

Construction

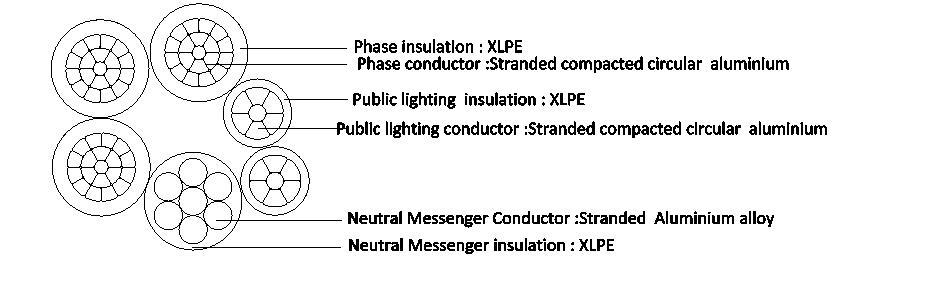

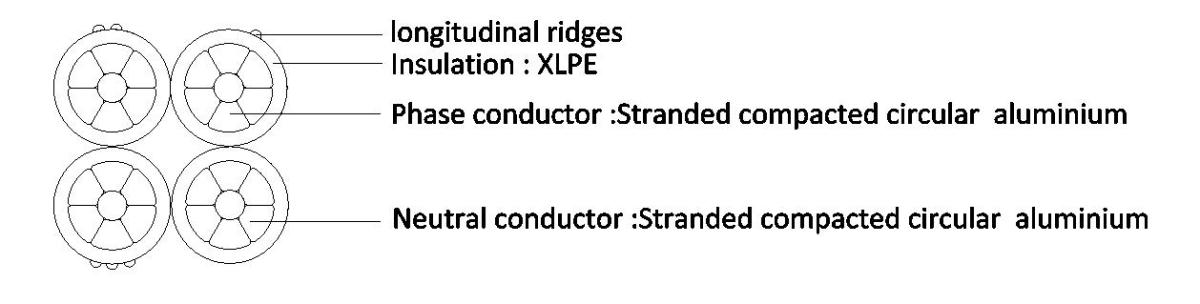

Phase Conductor
Multistrand round compacted hard drawn Aluminium conductor is insulated with black weather resistant
cross-linked thermosetting polyethylene (XLPE).

Neutral Conductor
Multistrand round Aluminium Alloy conductor is insulated with black weather resistant cross-linked thermosetting
polyethylene (XLPE).

Public lighting conductor
Multistrand round compacted hard drawn Aluminium conductor is insulated with black weather resistant
cross-linked thermosetting polyethylene (XLPE) conforming to NFC 33-209.

TECHNICAL DATA :

Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-15 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	15 × Ø of cable

PARAMETER :

ABC Cable NFC 33209 Parameter

No. of Conductor and Cross Section Area	Phase Core				Neutral Core				Street Lighting Core				Complete Cable
	No. and Section Area	No. of Wire	Dia. of Conductor (Approx.)	Insulation Thickness	No. and Section Area	No. of Wire	Dia. of Conductor (Approx.)	Insulation Thickness	No. and Section area	No. of Wires	Diameter of conductor	Insulation Thickness	Overall Diameter (Approx.)	Weight (Approx.)


mm2	mm2	No.	mm	mm	mm2	No.	mm	mm	mm2	No.	mm	mm	mm	kg/km
2x16	2x16	7	4.8	1.2	-	-	-	-	-	-	-	-	14.2	126
2x25	2x25	7	6.0	1.4	-	-	-	-	-	-	-	-	17.6	194
2x35	2x35	7	7.0	1.6	-	-	-	-	-	-	-	-	20.4	266
2x50	2x50	7	8.1	1.6	-	-	-	-	-	-	-	-	22.6	341
4x16	4x16	7	4.8	1.2	-	-	-	-	-	-	-	-	17.2	252
4x25	4x25	7	6.0	1.4	-	-	-	-	-	-	-	-	21.2	388
4x35	4x35	7	7.0	1.6	-	-	-	-	-	-	-	-	24.6	533
3x25+54.6	3x25	7	6.0	1.4	1x54.6	7	9.45	1.6	-	-	-	-	23.6	496
3x25+54.6+1x16	3x25	7	6.0	1.4	1x54.6	7	9.45	1.6	1x16	7	4.8	1.2	24.9	560
3x25+54.6+2x16	3x25	7	6.0	1.4	1x54.6	7	9.45	1.6	2x16	7	4.8	1.2	26.6	624
3x35+54.6	3x35	7	7.0	1.6	1x54.6	7	9.45	1.6	-	-	-	-	26.1	604
3x35+54.6+1x16	3x35	7	7.0	1.6	1x54.6	7	9.45	1.6	1x16	7	4.8	1.2	27.2	668
3x35+54.6+2x16	3x35	7	7.0	1.6	1x54.6	7	9.45	1.6	2x16	7	4.8	1.2	28.7	732
3x50+54.6	3x50	7	8.1	1.6	1x54.6	7	9.45	1.6	-	-	-	-	28.1	716
3x50+54.6+1x16	3x50	7	8.1	1.6	1x54.6	7	9.45	1.6	1x16	7	4.8	1.2	28.9	780
3x50+54.6+2x16	3x50	7	8.1	1.6	1x54.6	7	9.45	1.6	2x16	7	4.8	1.2	30.3	844
3x70+54.6	3x70	12	10.0	1.8	1x54.6	7	9.45	1.6	-	-	-	-	32.2	940
3x70+54.6+1x16	3x70	12	10.0	1.8	1x54.6	7	9.45	1.6	1x16	7	4.8	1.2	32.7	1004
3x70+54.6+2x16	3x70	12	10.0	1.8	1x54.6	7	9.45	1.6	2x16	7	4.8	1.2	33.8	1068
3x70+54.6+1x25	3x70	12	10.0	1.8	1x54.6	7	9.45	1.6	1x25	7	6.0	1.4	33.6	1038
3x70+54.6+2x25	3x70	12	10.0	1.8	1x54.6	7	9.45	1.6	2x25	7	6.0	1.4	35.5	1137
3x70+70	3x70	12	10.0	1.8	1x70	7	10.20	1.5	-	-	-	-	32.1	970
3x70+70+1x16	3x70	12	10.0	1.8	1x70	7	10.20	1.5	1x16	7	4.8	1.2	32.5	1035
3x70+70+2x16	3x70	12	10.0	1.8	1x70	7	10.20	1.5	2x16	7	4.8	1.2	33.6	1099
3x95+70	3x95	19	11.7	1.8	1x70	7	10.20	1.5	-	-	-	-	35.6	1212
3x95+70+1x16	3x95	19	11.7	1.8	1x70	7	10.20	1.5	1x16	7	4.8	1.2	35.7	1276
3x95+70+2x16	3x95	19	11.7	1.8	1x70	7	10.20	1.5	2x16	7	4.8	1.2	36.6	1340
3x120+70	3x120	19	13.0	1.8	1x70	7	10.20	1.5	-	-	-	-	38.0	1439
3x120+70+1x16	3x120	19	13.0	1.8	1x70	7	10.20	1.5	1x16	7	4.8	1.2	37.8	1503
3x120+70+2x16	3x120	19	13.0	1.8	1x70	7	10.20	1.5	2x16	7	4.8	1.2	38.6	1567
3x150+70	3x150	19	14.4	1.7	1x70	7	10.20	1.5	-	-	-	-	40.2	1650
3x150+70+1x16	3x150	19	14.4	1.7	1x70	7	10.20	1.5	1x16	7	4.8	1.2	39.8	1714
3x150+70+2x16	3x150	19	14.4	1.7	1x70	7	10.20	1.5	2x16	7	4.8	1.2	40.4	1778
3x120+95	3x120	19	13.0	1.8	1x95	19	12.50	1.6	-	-	-	-	39.5	1526
3x120+95+1x16	3x120	19	13.0	1.8	1x95	19	12.50	1.6	1x16	7	4.8	1.2	39.5	1590
3x120+95+2x16	3x120	19	13.0	1.8	1x95	19	12.50	1.6	2x16	7	4.8	1.2	39.8	1654
3x150+95	3x150	19	14.4	1.7	1x95	19	12.50	1.6	-	-	-	-	41.7	1736
3x150+95+1x16	3x150	19	14.4	1.7	1x95	19	12.50	1.6	1x16	7	4.8	1.2	41.7	1800
3x150+95+2x16	3x150	19	14.4	1.7	1x95	19	12.50	1.6	2x16	7	4.8	1.2
