NFC 33-209 Aerial Bundle Conductor ABC Cable 3x70+54.6+2x25mm2

Name: NFC 33-209 Aerial Bundle Conductor ABC Cable 3x70+54.6+2x25mm2
SKU: 0

Twist Cable 3X70+54.6+2X25mm2 Aluminum Overhead ABC Preassemble Cable

Conductor: Stranded Round Aluminum Conductor

Insulation : XLPE

Voltage : 0.6/1kV

Number of cores: 3+1+2

Package : Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

ABC Cable 3x70+54.6+2x25mm2 Application

Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight. To be used at 600V or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated or 90°C for cross linked.

ABC Cable 3x70+54.6+2x25mm2 Standard

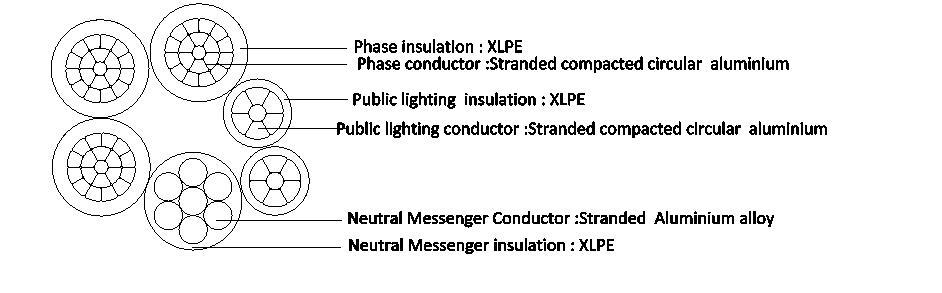

Aerial Bundled Conductors are manufactured to National French Standard NFC 33-209.CONSTRUCTION :

Phase Conductor	Aluminium conductor, round stranded compressed (RM).
Neutral Conductor	Alloy aluminium conductor round stranded compressed (RM).
Lighting Conductor	Aluminium conductor, round stranded (RM).
Insulation	XLPE

TECHNICAL DATA :

ABC Cable 3x70+54.6+2x25mm2 Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-15 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	15 × Ø of cable

PARAMETER :

ABC Cable 3x70+54.6+2x25mm2 Parameter

Aerial Bundle Cable 3x70+1x54.6+2x25mm2
Phase conductor
Cross section area	mm2	70
Number of wires	No	12
Insulation thickness	mm	1.8
D.C. Resistance at 20℃	Ω/km	0.443
Messager conductor
Cross section area	mm2	54.6
Number of wires	No	7
Insulation thickness	mm	1.6
D.C. Resistance at 20℃	Ω/km	0.63
Minium Breaking Strength	daN	1660
Public lighting conductor
Cross section area	mm2	25
Number of wires	No	7
Insulation thickness	mm	1.4
D.C. Resistance at 20℃	Ω/km	1.2
Cable Overall Diameter	mm	40
Cable Weight	kg/km	1154
