1x2+2awg Schnauzer Aluminum Conductor Duplex Overhead Service Drop Cable

Name: 1x2+2awg Schnauzer Aluminum Conductor Duplex Overhead Service Drop Cable
SKU: 0

Duplex Service Drop Cable 2AWG Schnauzer #2

Code Word: Schnauzer

Size AWG (Phase Conductors): 2

Voltage: 600V

Number of cores: 2 cores

Package: Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

2-2 Schnauzer Aluminum Conductor Duplex Overhead Service Drop Cable Application

2-2 Schnauzer Aluminum Conductor Duplex Overhead Service Drop Cable is designed for use to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 90°C maximum.

Also Known As:
2-2 schnauzeraluminium overhead cables, 2 schnauzer overhead aluminum wire, 2 schnauzer two conductor cable, 2 schnauzer 2 conductor power cable, 2 schnauzer two conductor, 2 schnauzer aluminum drop, 2 schnauzer overhead service drop conductors, 2 schnauzer overhead service conductors.

2-2 Schnauzer Aluminum Conductor Duplex Overhead Service Drop Cable Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600VoltsCONSTRUCTION :

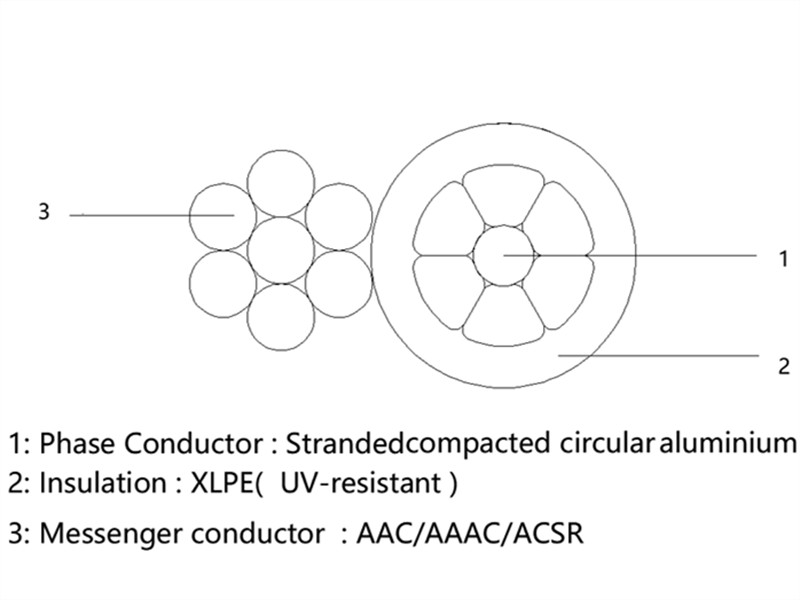

2-2 Schnauzer Aluminum Conductor Duplex Overhead Service Drop Cable Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger )Conductor	Bare AAAC messenger. .
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

2-2 Schnauzer Aluminum Conductor Duplex Overhead Service Drop Cable Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

2-2 Schnauzer Aluminum Conductor Duplex Overhead Service Drop Cable Parameter

Code Name	Schnauzer
Phas Conductor Size/AWG	2
Phase Conductor Stranding	7/w
Phase Conductor Insulation Thickness	45 mls
Bare Neutral Messenger Size/AWG	4
Bare Neutral Strand	7
Bare Neutral Messenger Breaking Strength	2800 Lbs
Weight Per (lb/1000 ft)XLP	163.3 Lbs
Weight (lb/1000 ft) Poly	156.2 Lbs
Ampacity XLP	150 Amps
Ampacity Poly	120 Amps
