2x4/0+4/0awg Lepas Aluminum Conductor Triplex Overhead Service Drop Cable Wire

Name: 2x4/0+4/0awg Lepas Aluminum Conductor Triplex Overhead Service Drop Cable Wire
SKU: 0

Triplex Service Drop Cable 4/0AWG Lepas #4/0

Code Word: Lepas

Size AWG (Phase Conductors): 4/0

Voltage: 600V

Number of cores: Triplex

Package : Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

4/0-4/0-4/0 Lepas Aluminum Conductor Triplex Overhead Service Drop Cable Wire Application

4/0 Lepas Aluminum Conductor Overhead Service Drop Cable Wirehas three conductors, with one of them being for neutral path, and two electrodes. Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

4/0-4/0-4/0 Lepas Aluminum Conductor Triplex Overhead Service Drop Cable Wire Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600Volts. CONSTRUCTION :

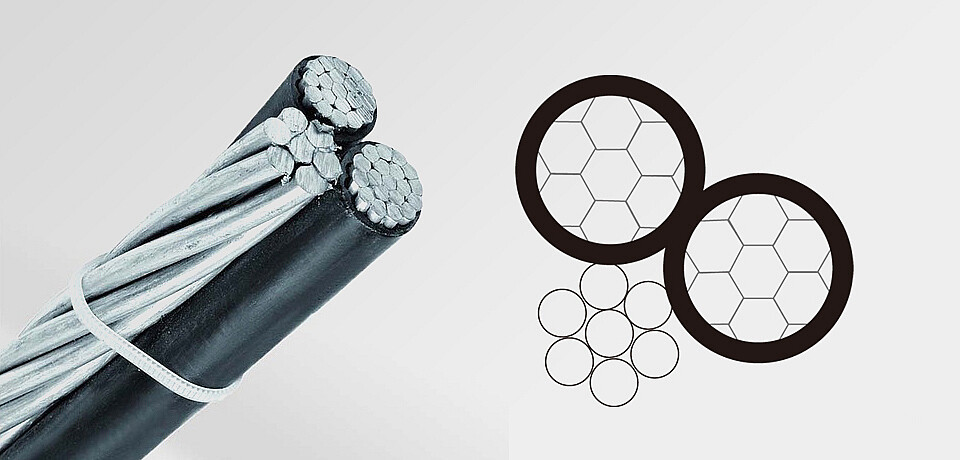

4/0-4/0-4/0 Lepas Aluminum Conductor Triplex Overhead Service Drop Cable Wire Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger)Conductor	Bare AAAC messenger.
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

4/0-4/0-4/0 Lepas Aluminum Conductor Triplex Overhead Service Drop Cable Wire Technical Data

Rated voltage	V	600
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

4/0-4/0-4/0 Lepas Aluminum Conductor Triplex Overhead Service Drop Cable Wire Parameter

Code Name	Lepas
Phase Conductor Material	AAC
Phase Conductor Size (awg)	4/0
Phase Conductor Stranding	19
Phase Conductor insulation Material	XLPE
Phase Conductor Insulation Thickness (mils)	60
Bare Neutral Messenger Material	AAAC
Bare Neutral Messenger Size(awg)	4/0
Bare Neutral Messenger Stranding	7
Bare Neutral Messenger Breaking Strength (Lbs)	8560
Weight Per (Lbs/1000 ft)	725
Ampacity (Amps)	315
