5 Core SWA Armoured Cable Application

Name: 5 Core Armoured Cable Copper Cu XLPE PVC SWA PVC BS5467 0.6/1kV
SKU: 0

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

5 Core SWA Armoured Cable Standard

BS 5467 IEC 60502-1.

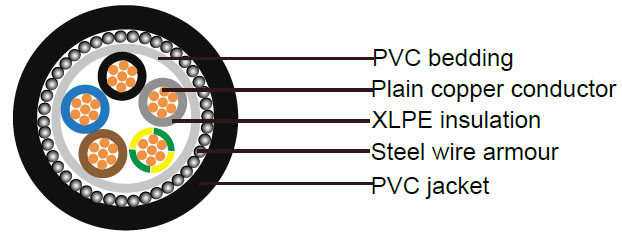

CONSTRUCTION :

Conductor	Plain cicrcular, compacted or shaped stranded copper or aluminum conductor, conform to IEC 60228 class 2
Insulation	XLPE (cross-linked polyethylene), rated at 90°C
Bedding	PVC (Polyvinyl Chloride)
Armour	SWA (Galvanized Steel Wire Armour)
Sheath	PVC (Polyvinyl Chloride)
Rated Voltage	600/1000V

TECHNICAL DATA :

5 Core SWA Armoured Cable Technical Data

STANDARD IEC 60502-1, BS 5467 and BS 6346
APPLICATION Distribution networks, Industrial use
CHEMICAL PERFORMANCE Chemical & Oil resistance: Good
MECHANICAL PERFORMANCE Minimum bending raduis: x15cable diameter (unarmoured)
Minimum bending raduis: x20 cable diameter (armoured)
FIRE PERFORMANCE Flame non-propagation base on IEC 60332-1
Reduced emission of Halogens chlorine<15%
TERMINAL PERFORMANCE Maximum service temperature: 90°C
Maximum short-circuit temperature: 150°C(max. 5s)
Minimum service temperature: -40°C

PARAMETER :

5 Core SWA Armoured Cable Parameter

0.6/1kV-5 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm2	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
5X2.5	0.7	1.25	1.8	17.9	645	7.41	20	27
5X4	0.7	1.25	1.8	19.1	770	4.61	26	36
5X6	0.7	1.25	1.8	20.5	925	3.08	33	45
5X10	0.7	1.6	1.8	24.6	1417	1.83	46	60
5X16	0.7	1.6	1.8	27.6	1812	1.15	59	77
5X25	0.9	1.6	1.9	32.2	2460	0.727	77	98
5X35	0.9	1.6	2	34.1	3019	0.524	95	119
5X50	1	2	2.2	39.7	4166	0.387	119	144
5X70	1.1	2	2.3	44.9	5443	0.268	151	175
5X95	1.1	2.5	2.5	51.3	7485	0.193	186	210
5X120	1.2	2.5	2.7	55.9	9026	0.153	217	242
5X150	1.4	2.5	2.8	61.4	10912	0.124	245	270
5X185	1.6	2.5	3	67.6	13119	0.0991	284	305
5X240	1.7	2.5	3.3	74.8	16427	0.0754	336	350
5X300	1.8	3.15	3.5	83.2	20915	0.0601	389	396

STANDARD	IEC 60502-1, BS 5467 and BS 6346
APPLICATION	Distribution networks, Industrial use
CHEMICAL PERFORMANCE	Chemical & Oil resistance: Good
MECHANICAL PERFORMANCE	Minimum bending raduis: x15cable diameter (unarmoured) Minimum bending raduis: x20 cable diameter (armoured)
FIRE PERFORMANCE	Flame non-propagation base on IEC 60332-1 Reduced emission of Halogens chlorine<15%
TERMINAL PERFORMANCE	Maximum service temperature: 90°C Maximum short-circuit temperature: 150°C(max. 5s) Minimum service temperature: -40°C
