185mm2 Single Core 0.6/1KV Aluminium Wire Armoured AWA Cable

Single core PVC cable with aluminium wire armour (AWA).Power and auxiliary fixed wiring cables for use in powernetworks, underground, outdoor and indoor applications andfor use in cable ducting.

STANDARDS

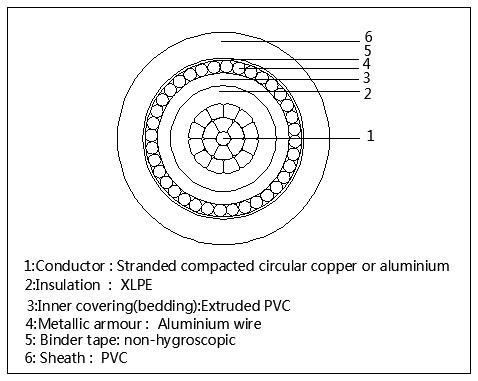

Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor (Conductor shaped: RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded)
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Color identification
1 Core : Red or Black,  2 Cores : Red, Black,  3 Cores: Red, Yellow, Blue , 4 Cores: Red, Yellow, Blue, Black,  5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
*The above identifying can be changed as user requirement
Assembly /Inner Sheath：Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour： Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Sheath：Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.
Fire Performance of Cable Sheaths

185mm2 Single Core 0.6/1KV Aluminium Wire Armoured AWA Cable

Specification	Outer diameter of conductor	Nominal thickness of insulation	Diameter of aluminium wire	Nominal sheath thickness	Approx.outer diameter of cable	Approx. Weight of cable		Ampacity of cable
								Air		Soil
						CU	AL	Cu	Al	Cu	Al
mm2	mm	mm	mm	mm	mm	kg/km	kg/km	A	A	A	A
1×4 RE	2.24	0.7	1.25	1.8	16.9	228	204	45	35	60	50
1×6 RE	2.76	0.7	1.25	1.8	16.9	258	222	55	45	70	50
1×10 CC	3.8	0.7	1.25	1.8	16.9	321	261	75	60	95	75
1×16 CC	4.8	0.7	1.25	1.8	17.0	357	255	100	80	125	100
1×25 CC	6.0	0.9	1.25	1.8	17.4	482	323	140	115	160	130
1×35 CC	7.0	0.9	1.25	1.8	18.4	597	375	175	140	190	150
1×50 CC	8.4	1.0	1.6	1.8	19.6	788	487	210	170	225	180
1×70 CC	10.0	1.1	1.6	1.8	21.5	1032	598	270	215	280	225
1×95 CC	11.5	1.1	1.6	1.8	23.1	1319	718	340	275	335	270
1×120 CC	13.0	1.2	2.0	1.8	24.7	1657	892	400	320	380	305
1×150 CC	14.5	1.4	2.0	1.8	26.7	1960	1048	460	370	425	340
1×185 CC	16.2	1.6	2.0	1.8	28.8	2375	1205	530	415	480	375
1×240 CC	18.4	1.7	2.0	1.8	31.6	3004	1467	625	490	555	435
1×300 CC	20.5	1.8	2.0	1.9	34.2	3655	1722	720	565	630	495
1×400 CC	23.5	2.0	2.5	2.0	39.3	4725	2245	815	640	705	555
1×500 CC	26.5	2.2	2.5	2.2	44.3	5837	2686	855	680	765	595
1×630 CC	30.0	2.4	2.5	2.3	50.4	7326	3271	980	790	860	680

185mm2 Single Core 0.6/1KV Aluminium Wire Armoured AWA Cable

Max. Permissible D.C. resistance of conductor at 20℃
