LXAV Cable Application

Name: LXAV Cable
SKU: 0

Armored cables for power distribution. Suitable for outdoor fixed installations when it is necessary to protect the cable against mechanical aggression or against rodent’s threat, impact or crushing. Can be installed in ducts, or directly buried. Excellent mechanical protection during laying, installation and service.

LXAV Cable Standard:

IEC 60502-1 IEC 60332-1

CONSTRUCTION :

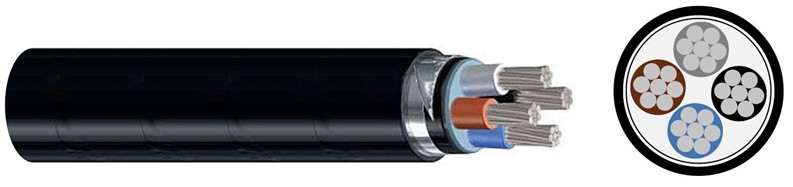

LXAV Cable Construction

Conductor: Stranded class 2, circular or sector-shaped to IEC 60228

Insulation: Cross-linked polyethylene, to IEC 60502-1 Identification by colour to HD 308.S2

Armour bedding: Black extruded PVC separation sheath.

Armour: Double steel or aluminium tape armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable. Steel tape is used in the multicore cables.

Outer sheath: Flexible PVC outer sheath, Black colour.

The standard identification of insulated conductors is the following:

1 x Natural

2 x Blue + Brown

3 G Blue + Brown + Green/Yellow

3 x Brown + Black + Grey

3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)

4 G Brown + Black + Grey + Green/Yellow

4 x Brown + Black + Grey + Blue

5 G Brown + Black + Grey + Blue + Green/Yellow

6 or more Black numbered + Green/Yellow

CHARACTERISTICS :

LXAV Cable Characteristics

Electrical performance: Low voltage 0,6/1kV.
Test Voltage：3,5 kV a.c. (5 min.)

Thermal performance:

Maximum service temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance:

Flame non-propagation according to EN 60332-1 and IEC 60332-1.

Reduced halogen emission. Chlorine <15%.

Reaction to fire CPR: Eca, according to EN 50575.

PARAMETER :

LXAV Cable Parameter

Cross Section	Insulation thickness	Amour thickness	Minimum Sheath thickness	Maximum Overall diameter	Approx Cable weight
mm^2	mm	mm	mm	mm	kg/km
2x10	0.7	0.2	1.4	18.5	420
2x16	0.7	0.2	1.5	20.5	540
2x25	0.9	0.2	1.6	24.5	760
2x35	0.9	0.2	1.7	27	930
3x10	0.7	0.2	1.5	19	470
3x16	0.7	0.2	1.5	22	590
3x25	0.9	0.2	1.6	26	830
3x35	0.9	0.2	1.7	29	1030
3x50	0.9	0.2	1.8	32.5	1290
3x70	1.1	0.2	2	37.5	1710
3x95	1.1	0.5	2.1	43.5	2610
3x120	1.2	0.5	2.3	47.5	3110
3x150	1.4	0.5	2.4	53	3770
3x185	1.6	0.5	2.5	58	4540
3x240	1.7	0.5	2.7	65.5	5620
3x300	1.8	0.5	2.9	72	6830
3x50+35	1.0/09	0.2	1.9	34.5	1500
3x70+50	1.1/0.9	0.2	2	40	2000
3x95+50	1.1/1.0	0.5	2.2	45	2870
3x120+70	1.2/1.1	0.5	2.3	50	3460
3x150+70	1.4/1.1	0.5	2.5	54	4090
3x185+70	1.6/1.1	0.5	2.6	59	4980
3x240+95	1.7/1.1	0.5	2.8	66	6210
4x10	0.7	0.2	1.5	20.5	540
4x16	0.7	0.2	1.6	23.5	700
4x25	0.9	0.2	1.7	28	1000
4x35	0.9	0.2	1.8	31.5	1230
4x50	1	0.2	1.9	35.5	1550
4x70	1.1	0.5	2.1	42.5	2490
4x95	1.1	0.5	2.3	47.5	3120
4x120	1.2	0.5	2.4	53	3780
4x150	1.4	0.5	2.6	58.5	4550
4x185	1.6	0.5	2.7	64.5	5490
4x240	1.7	0.5	2.9	72.5	6860
4x300	1.8	0.5	3.1	79.5	8250
5x10	0.7	0.2	1.6	22.5	640
