U-1000 ARVFV Industrial Cable Application

Name: U-1000 ARVFV Cable
SKU: 0

The U-1000 ARVFV armoured aluminium cables can be used in all low voltage power installations. This product is used in photovoltaic applications. These cables are suitable for direct burial without additional protection , for installation on cable trays or in conducts where mechanical protection is necessary.

U-1000 ARVFV Industrial Cable Standard:

NF C 32-322

CONSTRUCTION :

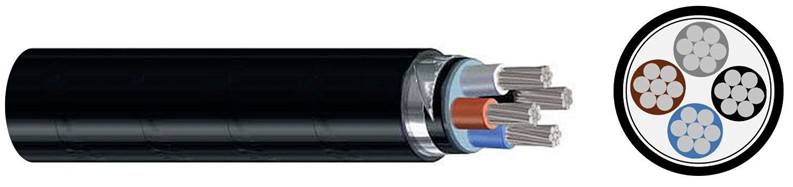

U-1000 ARVFV Industrial Cable Construction

Conductor: Aluminum conductor,Strands to IEC 60228 class 2

Insulation: Cross-linked polyethylene (XLPE) insulation type XLPE according to IEC 60502-1.

Armour bedding: Black extruded PVC separation sheath.

Armour: Double steel or aluminium tape armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable. Steel tape is used in the multicore cables.

Outer sheath: Flexible PVC outer sheath, Black colour.

The standard identification of insulated conductors is the following:

1 x Natural

2 x Blue + Brown

3 G Blue + Brown + Green/Yellow

3 x Brown + Black + Grey

3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)

4 G Brown + Black + Grey + Green/Yellow

4 x Brown + Black + Grey + Blue

5 G Brown + Black + Grey + Blue + Green/Yellow

6 or more Black numbered + Green/Yellow

CHARACTERISTICS :

U-1000 ARVFV Industrial Cable Characteristics

Electrical performance: Low voltage 0,6/1kV.

Thermal performance:

Maximum service temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance:

Flame non-propagation according to EN 60332-1 and IEC 60332-1.

Reduced halogen emission. Chlorine <15%.

Reaction to fire CPR: Eca, according to EN 50575.

Mechanical performance:

Minimum bending radius: x5 cable diameter.

Impact resistance: AG2 Medium severity.

Environmental performance

Chemical & Oil resistance: Good.

UV Resistant: UNE 211605.

Installation conditions

Open Air.

Buried.

In conduit.

Other

Meter by meter marking.

PARAMETER :

U-1000 ARVFV Industrial Cable Parameter

Cross Section	Insulation thickness	Amour thickness	Minimum Sheath thickness	Maximum Overall diameter	Approx Cable weight
mm^2	mm	mm	mm	mm	kg/km
2x10	0.7	0.2	1.4	18.5	420
2x16	0.7	0.2	1.5	20.5	540
2x25	0.9	0.2	1.6	24.5	760
2x35	0.9	0.2	1.7	27	930
3x10	0.7	0.2	1.5	19	470
3x16	0.7	0.2	1.5	22	590
3x25	0.9	0.2	1.6	26	830
3x35	0.9	0.2	1.7	29	1030
3x50	0.9	0.2	1.8	32.5	1290
3x70	1.1	0.2	2	37.5	1710
3x95	1.1	0.5	2.1	43.5	2610
3x120	1.2	0.5	2.3	47.5	3110
3x150	1.4	0.5	2.4	53	3770
3x185	1.6	0.5	2.5	58	4540
3x240	1.7	0.5	2.7	65.5	5620
3x300	1.8	0.5	2.9	72	6830
3x50+35	1.0/09	0.2	1.9	34.5	1500
3x70+50	1.1/0.9	0.2	2	40	2000
3x95+50	1.1/1.0	0.5	2.2	45	2870
3x120+70	1.2/1.1	0.5	2.3	50	3460
3x150+70	1.4/1.1	0.5	2.5	54	4090
3x185+70	1.6/1.1	0.5	2.6	59	4980
3x240+95	1.7/1.1	0.5	2.8	66	6210
4x10	0.7	0.2	1.5	20.5	540
4x16	0.7	0.2	1.6	23.5	700
4x25	0.9	0.2	1.7	28	1000
4x35	0.9	0.2	1.8	31.5	1230
4x50	1	0.2	1.9	35.5	1550
4x70	1.1	0.5	2.1	42.5	2490
4x95	1.1	0.5	2.3	47.5	3120
4x120	1.2	0.5	2.4	53	3780
4x150	1.4	0.5	2.6	58.5	4550
4x185	1.6	0.5	2.7	64.5	5490
4x240	1.7	0.5	2.9	72.5	6860
4x300	1.8	0.5	3.1	79.5	8250
5x10	0.7	0.2	1.6	22.5	640
