Application

Name: Cable NYAF Cu/PVC 70℃ 450/750 V
SKU: 0

Cable designed for internal wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as
stationary, static appliances, internal connectors in rectifier equipment, motor starters and controllers.

Standards:

Flame Retardancy : IEC-60332-1
Standard: IEC-60227-1: SNI 04-6629.3

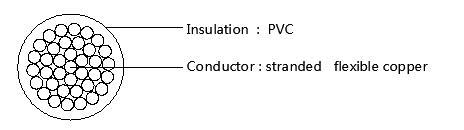

CONSTRUCTION :

Construction

Flexible annealed bare copper conductor, stranded according to IEC 60228 class 5
PVC Insulated, 70℃

TECHNICAL :

Technical Data

Voltage Rating : 450 / 750V
Temperature Range : -30°C to +70°C
Minimum Bending Radius :
Cable diameter ≤ 8 mm : 4 x outer diameter
Approx. diameter > 8 to 12 mm : 5 x outer diameter
Approx. diameter > 12 mm : 6 x outer diameter
Test Voltage : 2500V

PARAMETER :

Parameter

Nom. Cross Section Area	Overall Diameter	Cable Weight	DC Resistance at 20oC	InsulationThickness	Current-Carrying Capacity at 30oC	Conductor Make-Up	Short circuit current at 1 sec
	Overall Diameter	Cable Weight	DC Resistance at 20oC		In air
	approx.	approx.	Conductor		Max.
	approx.	approx.	Max.		Max.	(No.of wires x diameter)	Max.
(mm2)	(mm)	(kg/km)	(Ω/km)	(mm)	(A)	(No.of wires x diameter)	(A)
1.5	3.1	22	13.30	0.7	24	30 x 0.25	173
2.5	3.7	33	7.980	0.8	32	50 x 0.25	288
4.0	4.3	49	4.950	0.8	41	56 x 0.30	460
6.0	4.9	69	3.300	0.8	53	84 x 0.30	690
10	6.3	116	1.410	1.0	72	80 x 0.40	1150
16	7.4	175	1.210	1.0	97	128 x 0.40	1840
25	9.0	270	0.780	1.2	128	200 x 0.40	2875
35	10.5	371	0.554	1.2	156	280 x 0.40	4025
50	12.4	527	0.386	1.4	195	400 x 0.40	5750
70	14.1	716	0.272	1.4	243	356 x 0.50	8050
95	16.3	969	0.206	1.6	285	485 x 0.50	10925
120	17.9	1208	0.161	1.6	342	614 x 0.50	13800
150	20.0	1508	0.129	1.8	386	765 x 0.50	17250
185	22.2	1860	0.106	2.0	441	944 x 0.50	21275
240	25.1	2403	0.0801	2.2	520	1225 x 0.50	27600
300	28.0	3003	0.0641	2.4	605	1530 x 0.50	34500
400	32.0	3971	0.0486	2.6	725	2035 x 0.50	41200
