H05V-R H07V-R Wire Application

Name: H05V-R H07V-R PVC Insulated Building Wire
SKU: 0

These cables are preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.

H05V-R H07V-R Wire Standards:

DIN VDE 0281-3 DIN EN 60228 BS6004

CONSTRUCTION :

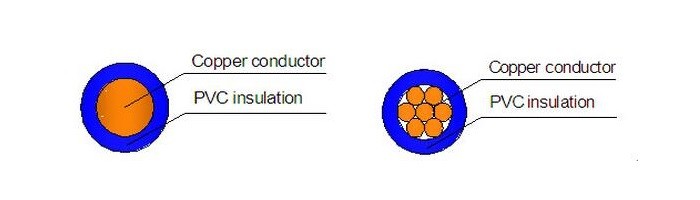

H05V-U H07-U Wire Construction

Conductor : Stranded bare copper
Insulation: PVC (Polyvinyl chloride)

TECHNICAL :

H05V-R H07V-R Wire Technical Data

Nominal voltage Uo/U		[V]	300 / 500 volt
Test voltage		[V]AC	2000
Temperature range	in motion		+5°C till +70°C
Operating temperature	short circuit	°C	160
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	4
Flammability	standard		EN 60332-1-2

PARAMETER :

H05V-R H07V-R Parameter

Cross Section Conductor Construction Insulation Thickness Overall Diameter Max Min Insulation Resistance@ 70ºC Weight Approx
(mm2) (No/mm) (mm) (mm) (ohm/Km) (Kg/Km)
1x0.75 7/0.97 0.6 2.8 0.012 11
1x1.0 7/0.43 0.6 3 / 14
1x1.5 7/0.52 0.7 3.4 0.01 21
1x2.5 7/0.67 0.8 4.2 0.009 32
1x4 7/0.85 0.8 4.8 0.008 45
1x6 7/1.04 0.8 5.4 0.007 65
1x10 7/1.35 1 6.8 0.007 110
1x16 7/1.70 1 8 0.005 165
1x25 7/2.14 1.2 9.8 0.005 264
1x35 7/2.52 1.2 11 0.004 360
1x50 19/1.78 1.4 13 0.005 490
1x70 19/2.14 1.4 15 0.004 685
1x95 19/2.52 1.6 17.5 0.004 946
1x120 37/2.03 1.6 19 0.003 1181
1x150 37/2.25 1.8 21 0.003 1453
1x185 37/2.52 2 23.5 0.003 1821
1x240 61/2.24 2.2 26.5 0.003 2383
1x300 61/2.50 2.4 29.5 0.003 2983
1x400 61/2.85 2.6 33.5 0.003 3800

Cross Section	Conductor Construction	Insulation Thickness	Overall Diameter Max	Min Insulation Resistance@ 70ºC	Weight Approx
(mm2)	(No/mm)	(mm)	(mm)	(ohm/Km)	(Kg/Km)
1x0.75	7/0.97	0.6	2.8	0.012	11
1x1.0	7/0.43	0.6	3	/	14
1x1.5	7/0.52	0.7	3.4	0.01	21
1x2.5	7/0.67	0.8	4.2	0.009	32
1x4	7/0.85	0.8	4.8	0.008	45
1x6	7/1.04	0.8	5.4	0.007	65
1x10	7/1.35	1	6.8	0.007	110
1x16	7/1.70	1	8	0.005	165
1x25	7/2.14	1.2	9.8	0.005	264
1x35	7/2.52	1.2	11	0.004	360
1x50	19/1.78	1.4	13	0.005	490
1x70	19/2.14	1.4	15	0.004	685
1x95	19/2.52	1.6	17.5	0.004	946
1x120	37/2.03	1.6	19	0.003	1181
1x150	37/2.25	1.8	21	0.003	1453
1x185	37/2.52	2	23.5	0.003	1821
1x240	61/2.24	2.2	26.5	0.003	2383
1x300	61/2.50	2.4	29.5	0.003	2983
1x400	61/2.85	2.6	33.5	0.003	3800
