H05V-U H07V-U Wire Application

Name: H05V-U H07V-U PVC Insulated Single Core Wire
SKU: 0

For protected fixed installations inside appliances and in or on lighting fittings. Further for installations in pipes on and under plaster, however, only for signal circuit and control circuit. The cable is not suitable for direct laying under plaster, however, only for signal circuit and control circuit.

H05V-U H07V-U Wire Standards:

DIN VDE 0281-3 DIN EN 60228

CONSTRUCTION :

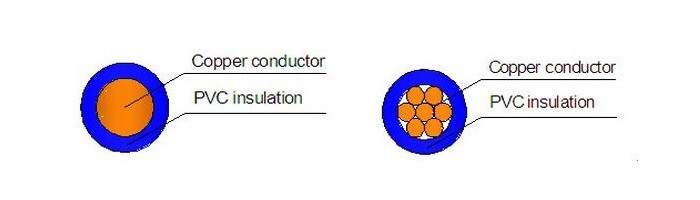

H05V-U H07V-U Wire Construction

Conductor : solid bare copper
Insulation: PVC (Polyvinyl chloride)

TECHNICAL :

H05V-U H07V-U WireTechnical Data

Nominal voltage Uo/U		[V]	300 / 500 volt
Test voltage		[V]AC	2000
Temperature range	in motion		+5°C till +70°C
Operating temperature	short circuit	°C	160
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	4
Flammability	standard		EN 60332-1-2

PARAMETER :

H05V-U H07V-U Parameter

No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Overall Diameter	Nominal Copper Weight	Nominal Weight
# x mm^2	mm	mm	kg/km	kg/km
H05V-U
1 x 0.5	0.6	2.1	4.8	9
1 x 0.75	0.6	2.2	7.2	11
1 x 1	0.6	2.4	9.6	14
H07V-U
1 x 1.5	0.7	2.9	14.4	21
1 x 2.5	0.8	3.5	24.0	33
1 x 4	0.8	3.9	38.0	49
1 x 6	0.8	4.5	58.0	69
1 x 10	1.0	5.7	96.0	115

H05V-U H07V-U PVC Insulated Single Core Wire

H05V-U H07V-U Wire Application

H05V-U H07V-U Wire Standards:

H05V-U H07V-U Wire Construction

H05V-U H07V-U WireTechnical Data

H05V-U H07V-U Parameter
