Non Screened MV ABC Cable Application:

Name: 6.35/11kV & 12.7/22kV Non Screened MV ABC Cable Aerial Bundled Cables to AS/NZS 3599.1
SKU: 0

Non screened abc cable to AS/NZS 3599.1 is a new type of aerial cable for power transmitting. It is extensively used in overhead power transmission line. Used as bare overhead transmission cable and as primary and secondary distribution cable.

Cable Standards

AS/NZS 3599.1

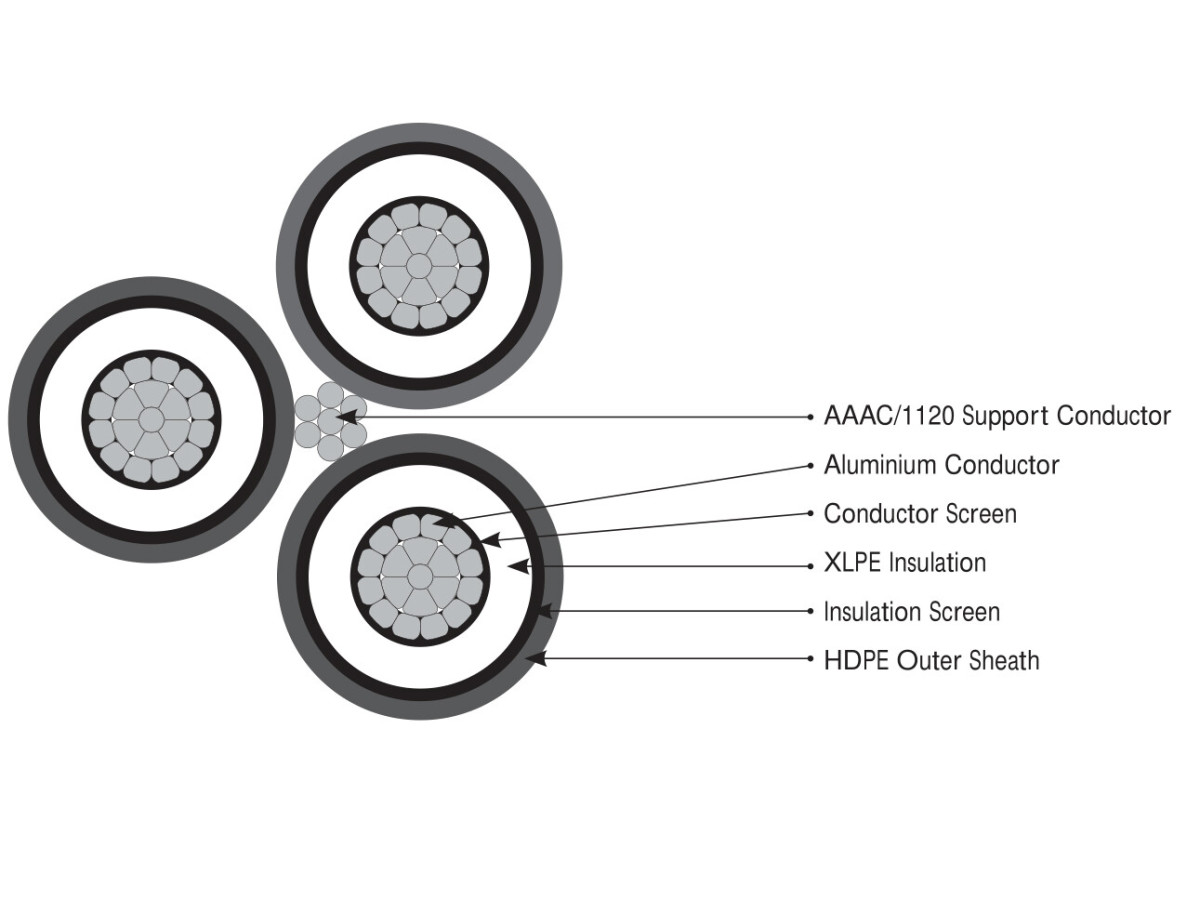

CONSTRUCTION :

Non Screened MV ABC Cable Construction

Phase Conductor	Circular Compacted Stranded H68 Aluminium ( Class 2)
Conductor Screen	Extruded Semi-conductive Layer.
Insulation	XLPE.
Insulation Screen	Extruded Semi-conductive Layer.
Outer Sheath	HDPE.
Support Conductor	Aluminium Alloy Conductor (AAAC/1120).
Assembly	Three XLPE Insulated Cores are Bundled Around the AAAC/1120 Support Conductor in a Right Hand Lay.

TECHNICAL DATA :

Temperature :

- Normal operation 90°C.

- Emergency over load conditions 130°C.

- Short circuit conditions 250°C.

PARAMETER :

Number of Cores x Nominal Cross Section	Nominal Conductor Diameter	Nominal Insulation Thickness	Nominal Insulation Screen Thickness	Nominal Sheath Thickness	AAAC/1120 Support Conductor size	Nominal Overall Diameter	Weight	Continuous Current Rating, A
Number of Cores x Nominal Cross Section	Nominal Conductor Diameter	Nominal Insulation Thickness	Nominal Insulation Screen Thickness	Nominal Sheath Thickness	AAAC/1120 Support Conductor size	Nominal Overall Diameter	Weight	Still Air	1m/s Wind	2m/s Wind
mm^2	mm	mm	mm	mm	No/mm	mm	kg/km	A	A	A
6.35/11kV Aerial Bundled Cable
3x35	6.9	3.4	0.8	1.2	7/4.75	52.4	1370	110	155	185
3x50	8.1	3.4	0.8	1.2	7/4.75	54.6	1530	130	185	225
3x70	9.7	3.4	0.8	1.2	7/4.75	57.8	1790	160	235	280
3x95	11.4	3.4	0.8	1.2	7/4.75	61.3	2100	195	285	345
3x120	12.8	3.4	0.8	1.2	19/3.50	67.3	2540	230	335	405
3x150	14.2	3.4	0.8	1.2	19/3.50	70.1	2840	255	380	460
3x185	15.7	3.4	0.8	1.2	19/3.50	73.1	3190	295	440	530
12.7/22kV Aerial Bundled Cable
3x35	6.9	5.5	0.8	1.2	7/4.75	61	1780	110	155	180
3x50	8.1	5.5	0.8	1.2	7/4.75	63.3	1970	130	185	220
3x70	9.7	5.5	0.8	1.2	7/4.75	66.5	2260	160	230	275
3x95	11.4	5.5	0.8	1.2	7/4.75	69.9	2600	195	285	335
3x120	12.8	5.5	0.8	1.2	19/3.50	75.9	3070	225	330	395
3x150	14.2	5.5	0.8	1.2	19/3.50	78.7	3390	255	375	450
3x185	15.7	5.5	0.8	1.2	19/3.50	81.7	3760	290	435	520
