NFC 33-209 Aerial Bundle Conductor ABC Cable 2x25mm2

Name: NFC 33-209 Aerial Bundle Conductor ABC Cable 2x25mm2
SKU: 0

2x25mm2 Twist Cable Overhead Line with Aluminum Conductor XLPE Insulation

Conductor: Stranded Round Aluminum Conductor

Insulation : XLPE

Voltage : 0.6/1kV

Number of cores: 2 cores

Package : Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

ABC Cable 2x25mm2 Application

2x25mm2 ABC Cable Aerial Bundle Cable Aluminum Insulated Twist Cable used to supply power,usually from a pole-mounted transformer, to the user's service head where connection to the service entrance.To be used at 600V or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated or 90°C for cross linked.

ABC Cable 2x25mm2 Standard

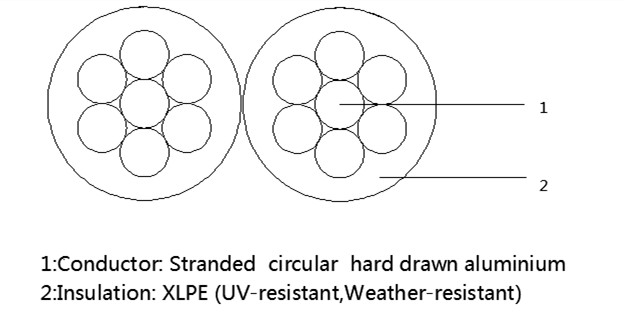

Aerial Bundled Conductors are manufactured to National French Standard NFC 33-209.CONSTRUCTION :

Phase Conductor	Aluminium conductor, round stranded compressed (RM).
Insulation	XLPE.
Assembly	Cores and the neutral, conductor stranded together in right-hand lay, additionally 1, 2 or 3 cores of reduced cross section can be co-stranded.

TECHNICAL DATA :

ABC Cable 2x25mm2 Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-15 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	15 × Ø of cable

PARAMETER :

ABC Cable 2x25mm2 Parameter

TECHNICAL DATA SHEET
Câble préassemblé torsadé 2x25mm²
No.	Description	Unit	Data Provided
1	Standards Reference		IEC 60502-1,NFC 33-209
2	Voltage	Volt	600/1000
3	Type of cable	mm²	2x25
4	Material of conductor		Stranded Aluminum wire
	Stranding no. of wires in conductor	No.	7
	Approx.diameter of conductor	mm	6.0
5	Material of insulation		Black XLPE
	Norminal thickness of insulation	mm	1.4
	Approx.diameter of insulated conductor	mm	8.8
6	Approx.overall diameter of completed cable	mm	18.0
7	Maximum d.c. resistance of conductor of cable at 20°C	ohm/km	1.2
8	Approx.weight of completed cable	kg/km	202
