1x4+4awg Dachshund Aluminum Conductor Duplex Overhead Service Drop Cable

Name: 1x4+4awg Dachshund Aluminum Conductor Duplex Overhead Service Drop Cable
SKU: 0

Duplex Service Drop Cable 4AWG Dachshund #4

Code Word: Dachshund

Size AWG (Phase Conductors): 4

Voltage: 600V

Number of cores: 2 cores

Package: Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

4-4 Dachshund Aluminum Conductor Duplex Overhead Service Drop Cable Application

4-4 Dachshund Aluminum Conductor Duplex Overhead Service Drop Cable is designed for use to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 90°C maximum.

Also Known As:
4-4 dachshund aluminium overhead cables, 4 dachshund overhead aluminum wire, 4 dachshund two conductor cable, 4 dachshund 2 conductor power cable, 4 dachshund two conductor, 4 dachshund aluminum drop, 4 dachshund overhead service drop conductors, 4 dachshund overhead service conductors.

4-4 Dachshund Aluminum Conductor Duplex Overhead Service Drop Cable Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600VoltsCONSTRUCTION :

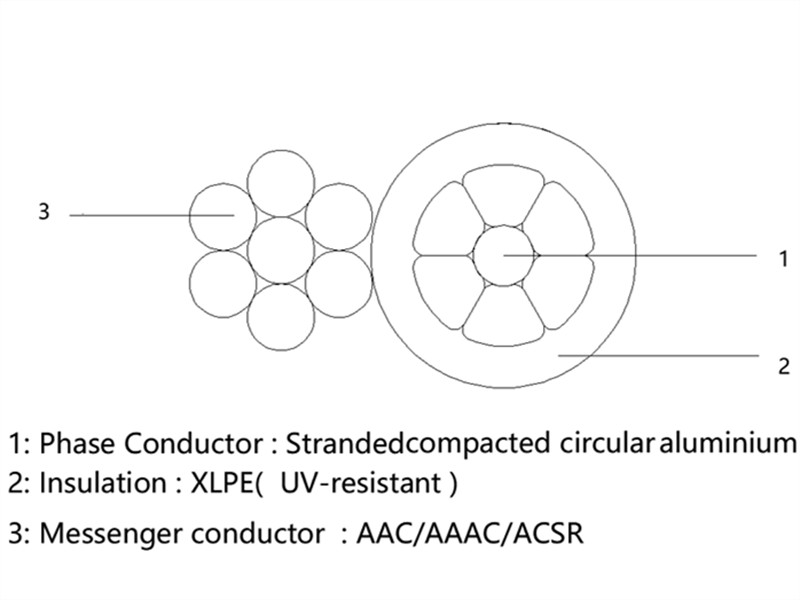

4-4 Dachshund Aluminum Conductor Duplex Overhead Service Drop Cable Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger )Conductor	Bare AAC messenger. .
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

4-4 Dachshund Aluminum Conductor Duplex Overhead Service Drop Cable Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

4-4 Dachshund Aluminum Conductor Duplex Overhead Service Drop Cable Parameter

Code Name	Dachshund
Phas Conductor Size/AWG	4
Phase Conductor Stranding	Solid
Phase Conductor Insulation Thickness	45 mls
Bare Neutral Messenger Size/AWG	4
Bare Neutral Strand	7/w
Bare Neutral Messenger Breaking Strength	881 Lbs
Weight Per (lb/1000 ft)XLP	95.5 Lbs
Weight (lb/1000 ft) Poly	93.4 Lbs
Ampacity XLP	115 Amps
Ampacity Poly	90 Amps
